• GARP LeaveAll Timer* – The interval between sending out a
LeaveAll query message for VLAN group participants and the port
leaving the group. This interval should be considerably larger than the
Leave Time to minimize the amount of traffic generated by nodes
rejoining the group.
(Range: 500-18000 centiseconds; Default: 1000)
*Timer settings must follow this rule: 2 x (join timer) < leave timer < leaveAll timer
• Trunk Member – Indicates if a port is a member of a trunk. To add
a trunk to the selected VLAN, use the last table on the VLAN Static
Table page.
• Mode – Indicates VLAN membership mode for an interface.
(Default: 1Q Trunk)
- 1Q Trunk – Specifies a port as an end-point for a VLAN trunk. A
trunk is a direct link between two switches, so the port transmits
tagged frames that identify the source VLAN. However, note that
frames belonging to the port’s default VLAN (i.e., associated with the
PVID) are sent untagged.
- Hybrid – Specifies a hybrid VLAN interface. The port may transmit
tagged or untagged frames.

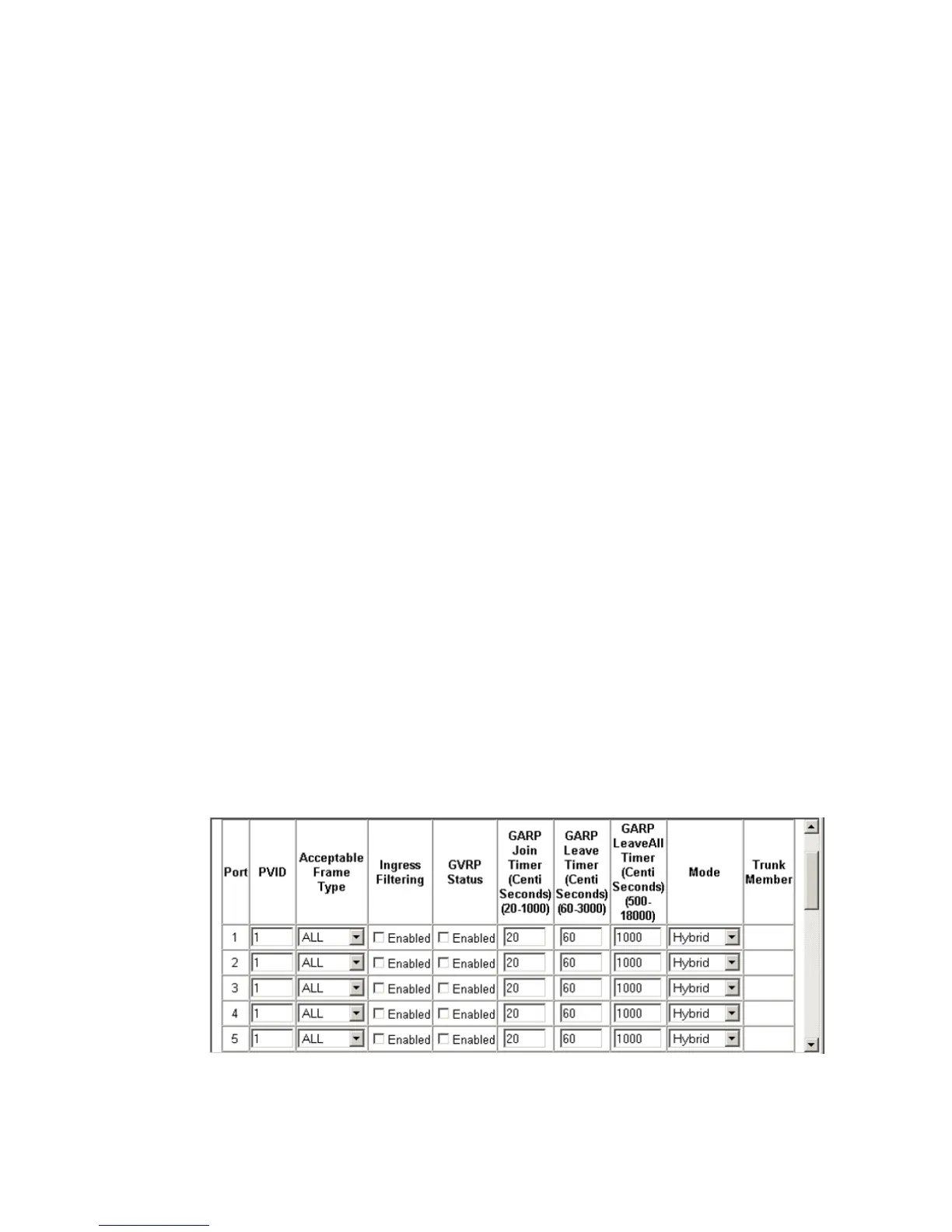

Web – Click VLAN, 802.1Q VLAN, Port Configuration or Trunk
Configuration. Fill in the required settings for each interface, click Apply.
