CCD-TRV32/TRV34/TRV34PK/TRV44/TRV52/TRV53/TRV312/TRV512(NTSC)
CCD-TRV14E/TRV24E/TRV44E(PAL)

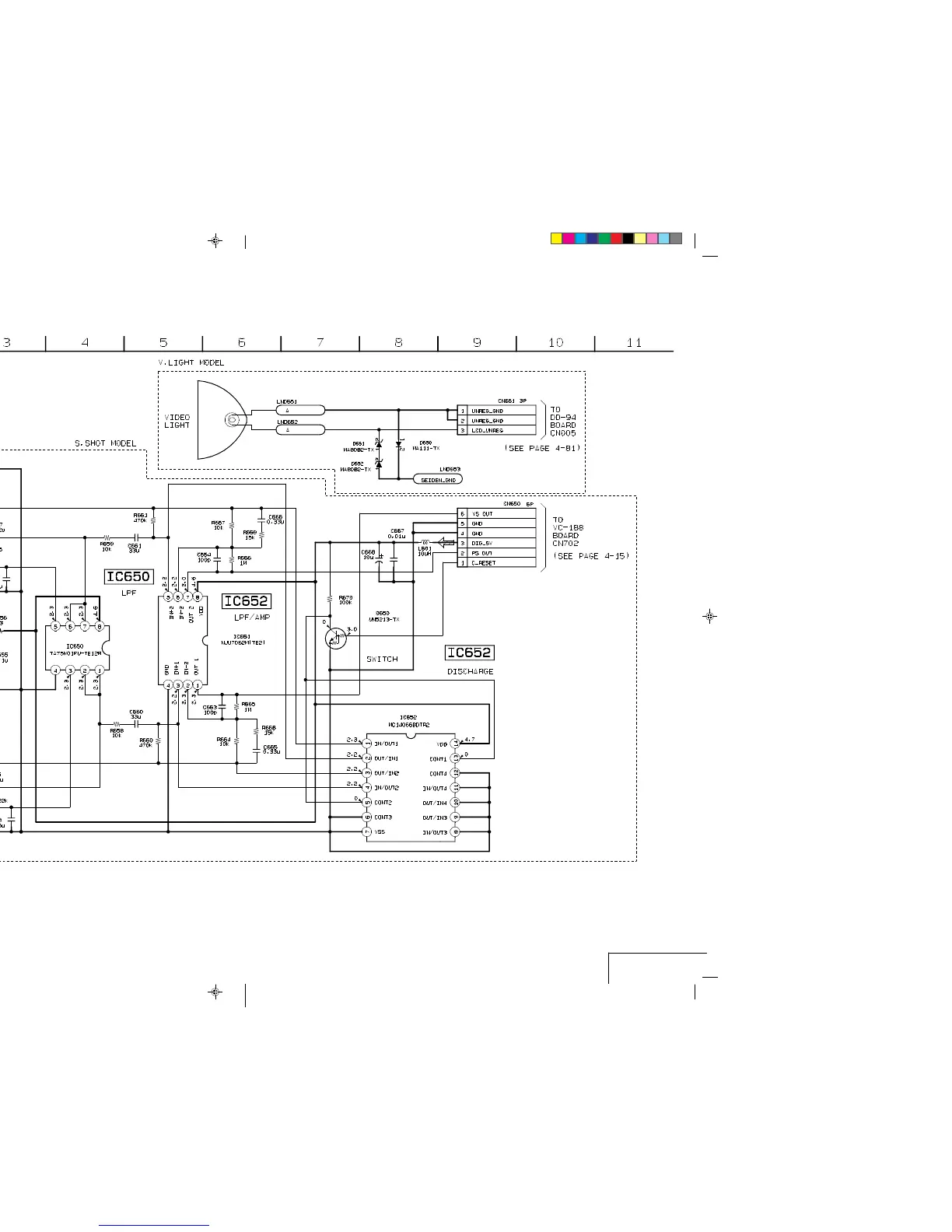

SE-60 (STEADY SHOT) SCHEMATIC DIAGRAM
ā€” Ref. No. SE-60 Board; 5,000 Series ā€”
4-87 4-88
STEADY SHOT
SE-60
STEADY SHOT MODEL
