CCD-TRV32/TRV34/TRV34PK/TRV44/TRV52/TRV53/TRV312/TRV512(NTSC)
CCD-TRV14E/TRV24E/TRV44E(PAL)

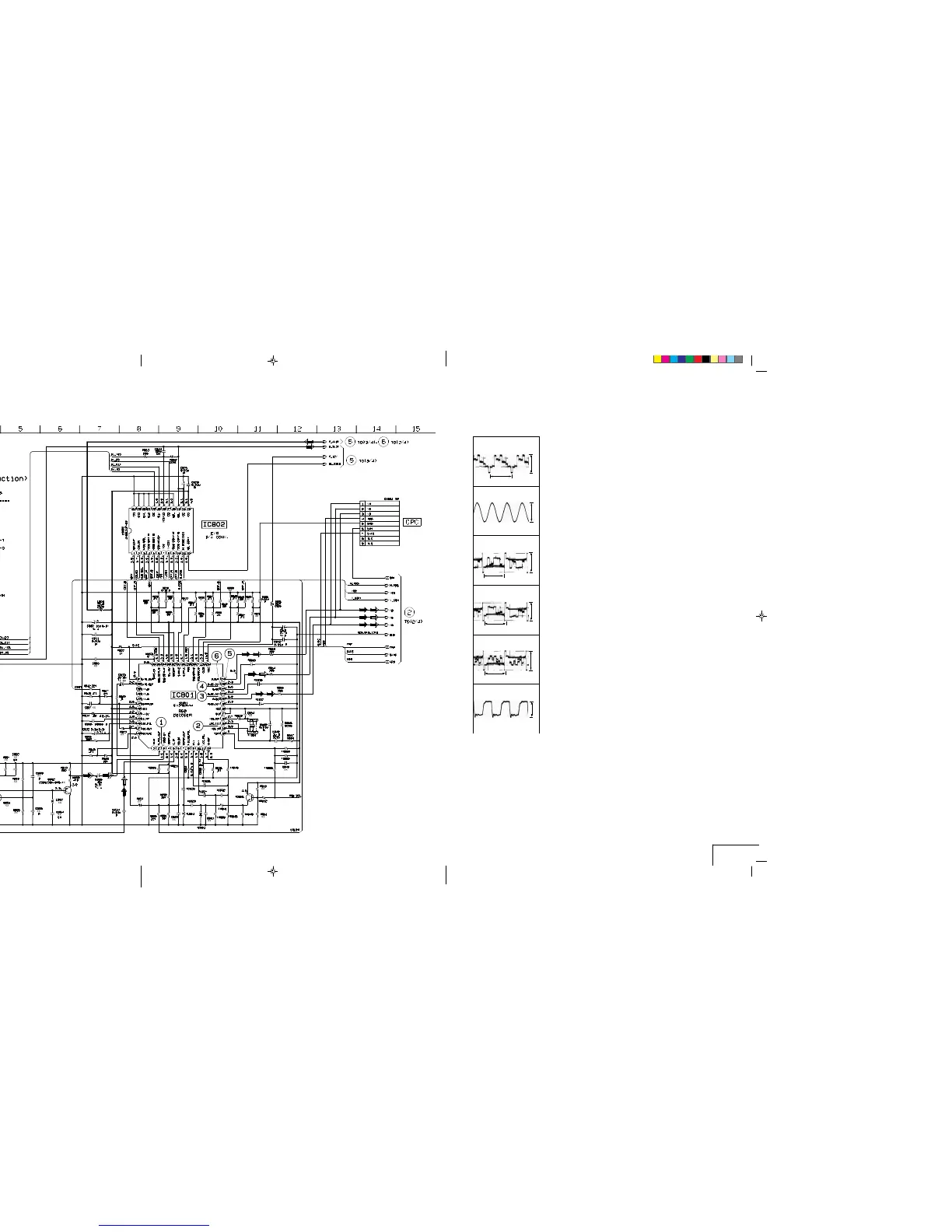

PD-76 (LCD) SCHEMATIC DIAGRAM
— Ref. No. PD-76 Board; 8,000 Series —
4-91 4-92 4-93
PD-76 BOARD (1/4)
1 IC801 3 REC/PB
2 IC801 !¢ REC/PB
3 IC801 @º REC/PB
4 IC801 @™ REC/PB
5 IC801 @¢ REC/PB
6 IC801 @£ REC/PB
3.5Vp-p
4.77MHz
0.5Vp-p
H
560mVp-p
5.6Vp-p
H
5.6Vp-p
H
5.6Vp-p
H
4.43MHz (PAL)
3.58MHz (NTSC)
LCD
PD-76 (1/4)
