5-4
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks

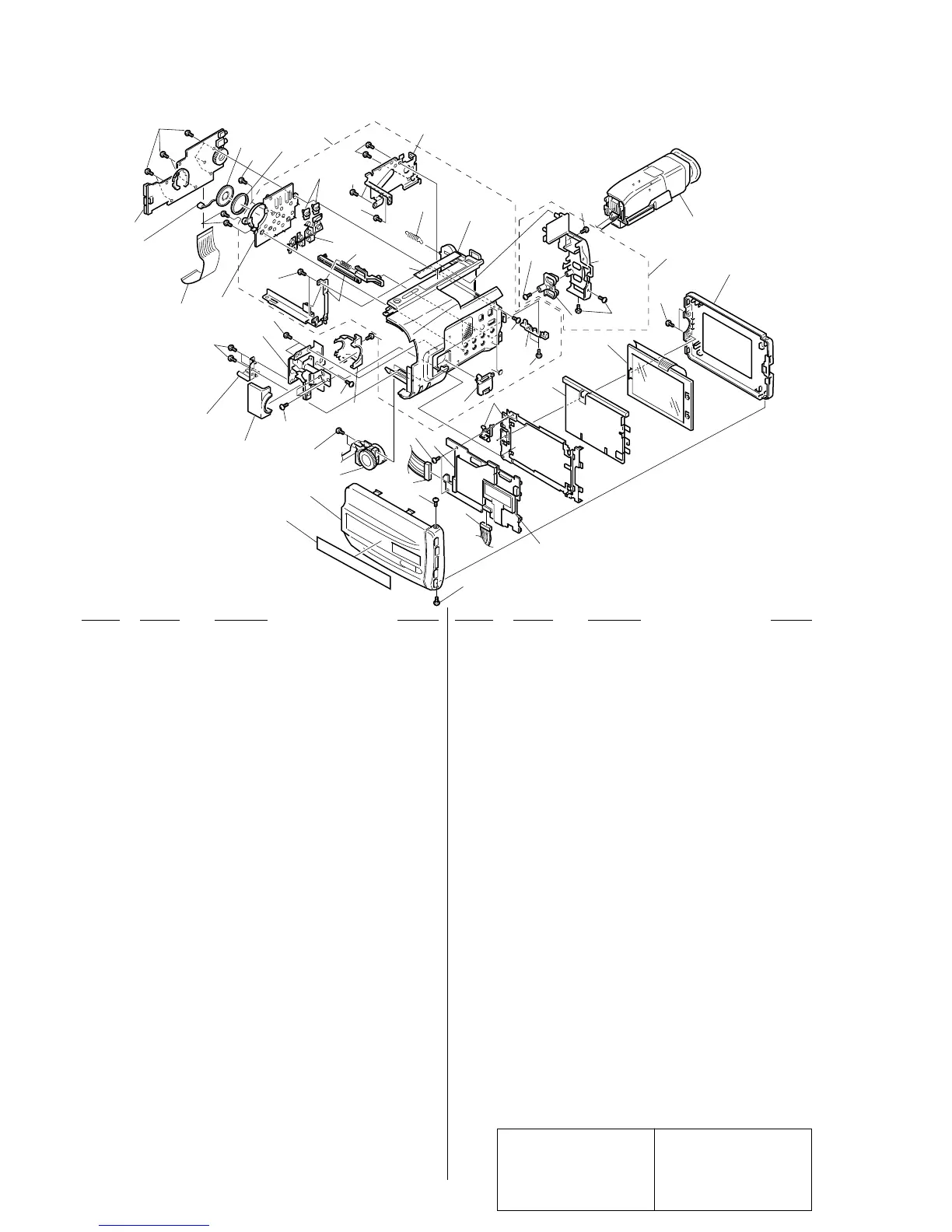

5-1-3 (1). CABINET (R), LCD SECTION (EXCEPT TRV14E/TRV24E MODEL)
101 1-475-068-11 SWITCH BLOCK, CONTROL(MF-7800)
102 3-719-601-01 SCREW (B2X5),TAPPING
103 3-968-878-01 LID, LITHIUM BATTERY
104 3-966-178-01 SCREW (1.7)
105 3-965-854-01 CLAW, BT LOCK
106 3-975-378-11 BUTTON (A), CF
107 3-975-380-01 KNOB, SLIDE
108 3-719-381-01 SCREW (M2X4)
109 4-602-490-01 SPRING, TENSION
110 3-959-978-02 CUSHION, PANEL
111 3-965-846-01 SPRING, COMPRESSION
113 3-975-376-01 SHEET, LETTER
115 X-3947-323-1 CABINET (R) ASSY
(TRV32/TRV34/TRV44/TRV44E)
115 X-3947-335-1 CABINET (R) ASSY (TRV52/TRV53)
115 X-3947-424-1 CABINET (R) ASSY (TRV512)
115 X-3947-427-1 CABINET (R) ASSY (TRV312)
116 1-505-291-11 SPEAKER (DIA 2.8CM)
117 3-965-367-11 SPACER, SP
118 1-782-153-11 CABLE, FLEXIBLE FLAT 45P
119 X-3947-327-1 HINGE ASSY
120 3-976-130-01 COVER (C), HINGE
(TRV32/TRV34/TRV44/TRV52/TRV53/TRV44E)
120 3-976-130-11 COVER (C), HINGE (TRV312/TRV512)
121 3-976-099-01 COVER (M), HINGE
122 3-976-096-01 BUTTON, BF
123 X-3947-331-1 CABINET (R) ASSY , SUB (TRV32/TRV53)
123 X-3947-332-1 CABINET (R) ASSY , SUB
(TRV34/TRV44/TRV52/TRV44E)
123 X-3947-426-1 CABINET (R) ASSY , SUB (TRV512)
123 X-3947-430-1 CABINET (R) ASSY , SUB (TRV312)
126 X-3947-326-1 CABINET (C) ASSY, PANEL
(TRV32/TRV34/TRV44/TRV52/TRV53/TRV44E)
126 X-3947-428-1 CABINET (C) ASSY, PANEL (TRV312/TRV512)
127 A-7093-277-A PD-77 BOARD,COMPLETE
(TRV32/TRV34/TRV53/TRV312)
127 A-7093-281-A PD-76 BOARD,COMPLETE(TRV44E)
127 A-7093-279-A PD-76 BOARD,COMPLETE
(TRV44/TRV52/TRV512)
! 128 1-517-654-11 TUBE, FLUORESCENT COLD CATHODE
(TRV32/TRV34/TRV53/TRV312)
! 128 1-517-655-11 TUBE, FLUORESCENT COLD CATHODE
(TRV44/TRV52/TRV512/TRV44E)
129 1-801-667-11 INDICATOR MODULE, LIQUID CRYST
(TRV44/TRV52/TRV512/TRV44E)
129 1-801-669-11 INDICATOR MODULE, LIQUID CRYST
(TRV32/TRV34/TRV53/TRV312)
130 X-3947-325-1 CABINET (M) ASSY, P(TRV32/TRV34/TRV53)
130 X-3947-333-1 CABINET (M) ASSY, P(TRV44/TRV52/TRV44E)
130 X-3947-425-1 CABINET (M) ASSY, P(TRV512)
130 X-3947-429-1 CABINET (M) ASSY, P(TRV312)
131 1-957-152-11 HARNESS (CP-75)
134 3-976-103-01 SCREEN, WINDOW
135 3-976-125-01 WINDOW, LCD (TRV32)
135 3-976-125-11 WINDOW, LCD (TRV53)
135 3-976-125-21 WINDOW, LCD (TRV44)
135 3-976-125-31 WINDOW, LCD (TRV44E)
135 3-976-125-41 WINDOW, LCD (TRV52)
135 3-976-125-51 WINDOW, LCD (TRV312)
135 3-976-125-61 WINDOW, LCD (TRV512)
135 3-976-125-71 WINDOW, LCD (TRV34)
136 A-7073-137-A CF-46 BOARD, COMPLETE (TRV32/TRV312)
136 A-7073-163-A CF-46 BOARD, COMPLETE
(TRV34/TRV44/TRV52/TRV512/TRV44E)
136 A-7073-189-A CF-46 BOARD, COMPLETE (TRV53)
137 1-801-697-11 DISPLAY PANEL, LIQUID CRYSTAL
138 3-713-786-21 SCREW (M2X3)
Note :
The components identified by
mark ! or dotted line with mark
! are critical for safety.
Replace only with part number
specified.
Note :
Les composants identifiés par
une marque ! sont critiques
pour la sécurité.
Ne les remplacer que par une
pièce portant le numéro spécifie.
110
138
108
102
136
116
117
118
106
107
115
119
121
102
120
101
127
102
123
122
129
130
128
not supplied
not supplied
not
supplied
not supplied
103
104
105
131
131
137
EVF SECTION
(See page 5-7, 5-9)
102
102
102
not 
supplied
102
102
102
102
not supplied
109
111
113
102
102
108
not 
supplied
108
108
108
108
126
135
108
108
not 
supplied
