5-5

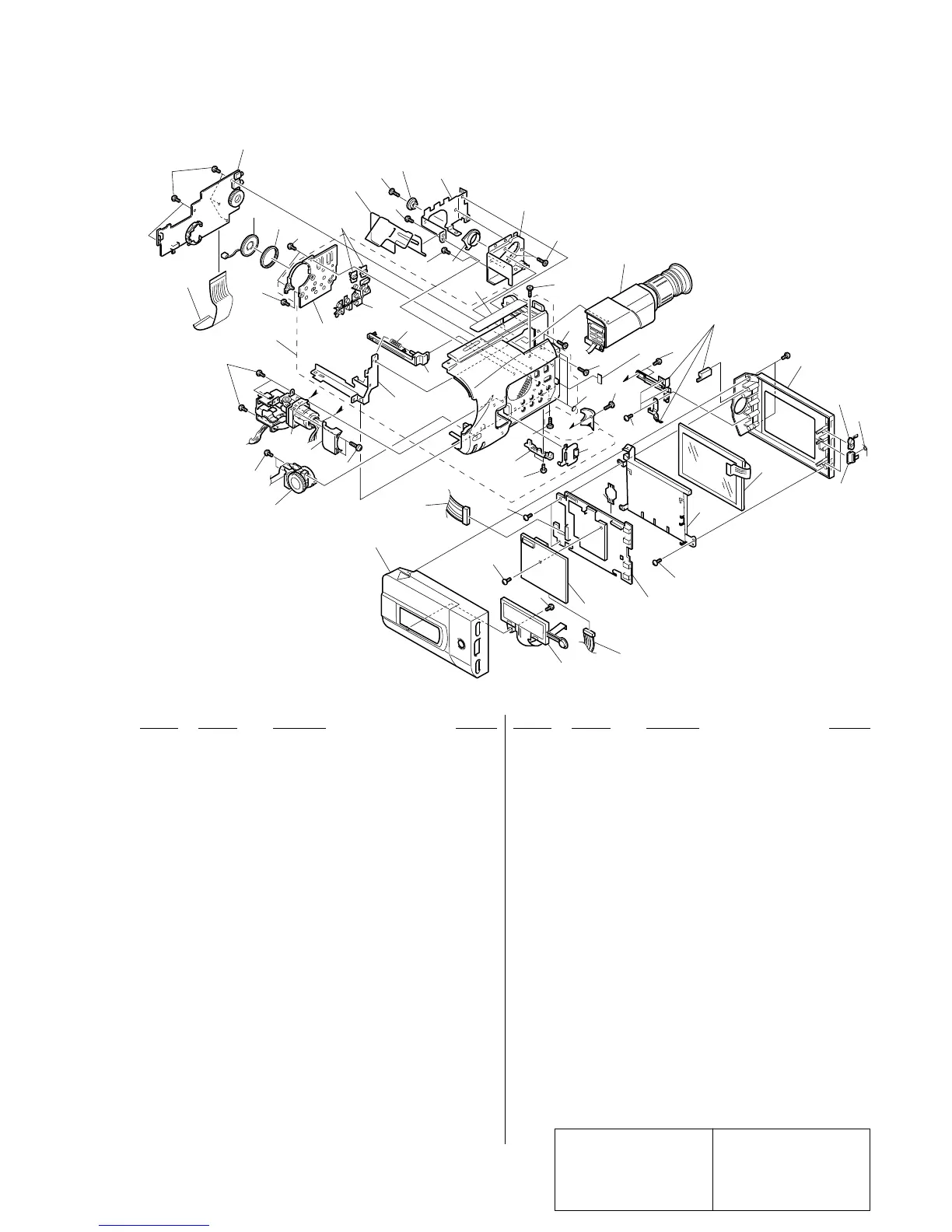

5-1-3 (2). CABINET (R), LCD SECTION (TRV14E/TRV24E MODEL)
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
101 1-475-068-11 SWITCH BLOCK, CONTROL(MF-7800)
102 3-719-601-01 SCREW (B2X5),TAPPING
103 3-968-878-01 LID, LITHIUM BATTERY
104 3-966-178-01 SCREW (1.7)
105 3-965-854-01 CLAW, BT LOCK
106 3-975-378-01 BUTTON (A), CF (TRV14E)
106 3-975-378-11 BUTTON (A), CF (TRV24E)
107 3-975-380-01 KNOB, SLIDE
108 3-719-381-01 SCREW (M2X4)
109 3-974-326-01 FLANGE, SLIDER
110 3-959-978-02 CUSHION, PANEL
111 3-965-846-01 SPRING, COMPRESSION
112 3-974-325-01 FLANGE, ROTARY
113 3-975-376-01 SHEET, LETTER
115 X-3947-168-1 CABINET (R) ASSY (TRV14E)
115 X-3947-357-1 CABINET (R) ASSY (TRV24E:E)
115 X-3947-403-1 CABINET (R) ASSY (TRV24E:AEP)
116 1-505-291-11 SPEAKER (DIA 2.8CM)
117 3-965-367-11 SPACER, SP
118 1-782-153-11 CABLE, FLEXIBLE FLAT 45P
119 X-3947-171-1 HINGE ASSY
120 3-975-373-01 COVER (LOWER), HINGE
125 A-7093-271-A SD-25 BOARD, COMPLETE (TRV14E)
125 A-7093-274-A SD-24 BOARD, COMPLETE (TRV24E)
126 X-3947-169-1 CABINET (C) ASSY, P (TRV14E)
126 X-3947-404-1 CABINET (C) ASSY, P (TRV24E)
127 A-7093-270-A PD-75 BOARD, COMPLETE(TRV14E)
127 A-7093-273-A PD-74 BOARD, COMPLETE (TRV24E)
! 128 1-517-524-51 TUBE, FLUORESCENT COLD CATHODE
129 1-801-666-11 INDICATOR MODULE, LIQUID CRYST (TRV14E)
130 X-3947-170-1 CABINET (M) ASSY, P
131 1-957-150-11 HARNESS (CP-74)
132 1-957-151-11 HARNESS (CS-111)
133 3-713-790-31 SCREW (M2X8), TAPPING, P3
136 A-7073-052-A CF-45 BOARD, COMPLETE (TRV14E)
136 A-7073-159-A CF-45 BOARD, COMPLETE (TRV24E)
137 1-801-697-21 DISPLAY PANEL, LIQUID CRYSTAL
138 3-975-408-01 CUSHION, PANEL LOCK
139 3-975-419-01 BUTTON, PANEL LOCK
140 3-975-420-01 SPRING, LOCK
141 3-975-421-01 BUTTON, BRIGHT
* 142 3-975-685-01 GUIDE, VF FLEXIBLE
143 3-975-388-01 CLAW, BATTERY
144 1-660-433-11 FP-410 FLEXIBLE BOARD
145 3-975-384-01 COVER (UPPER) HINGE
146 3-768-729-41 SCREW (M2X8)
147 3-968-729-61 SCREW (M2X3)
Note :
The components identified by
mark ! or dotted line with mark
! are critical for safety.
Replace only with part number
specified.
Note :
Les composants identifiés par
une marque ! sont critiques
pour la sécurité.
Ne les remplacer que par une
pièce portant le numéro spécifie.
a
b
a
b
140
102
102
147
102
136
116
117
118
115
107
106
142
112
109
119
102
101
105
104
103
126
137
127125
128
129
130
141
139
EVF SECTION
(See page 5-8)
132
131
113
102
102
102
102
111
146
108
110
108
108
108
108
102
not supplied
not supplied
not supplied
not supplied
133
102
144
145
143
120
102
108
138
108
not supplied
