Sony DCR-PC101E - LCD Cabinet (R) Assembly; LCD Block Service Position

2-2
DCR-PC101/PC101E
NOTE: Follow the disassembly procedure in the numerical order given.

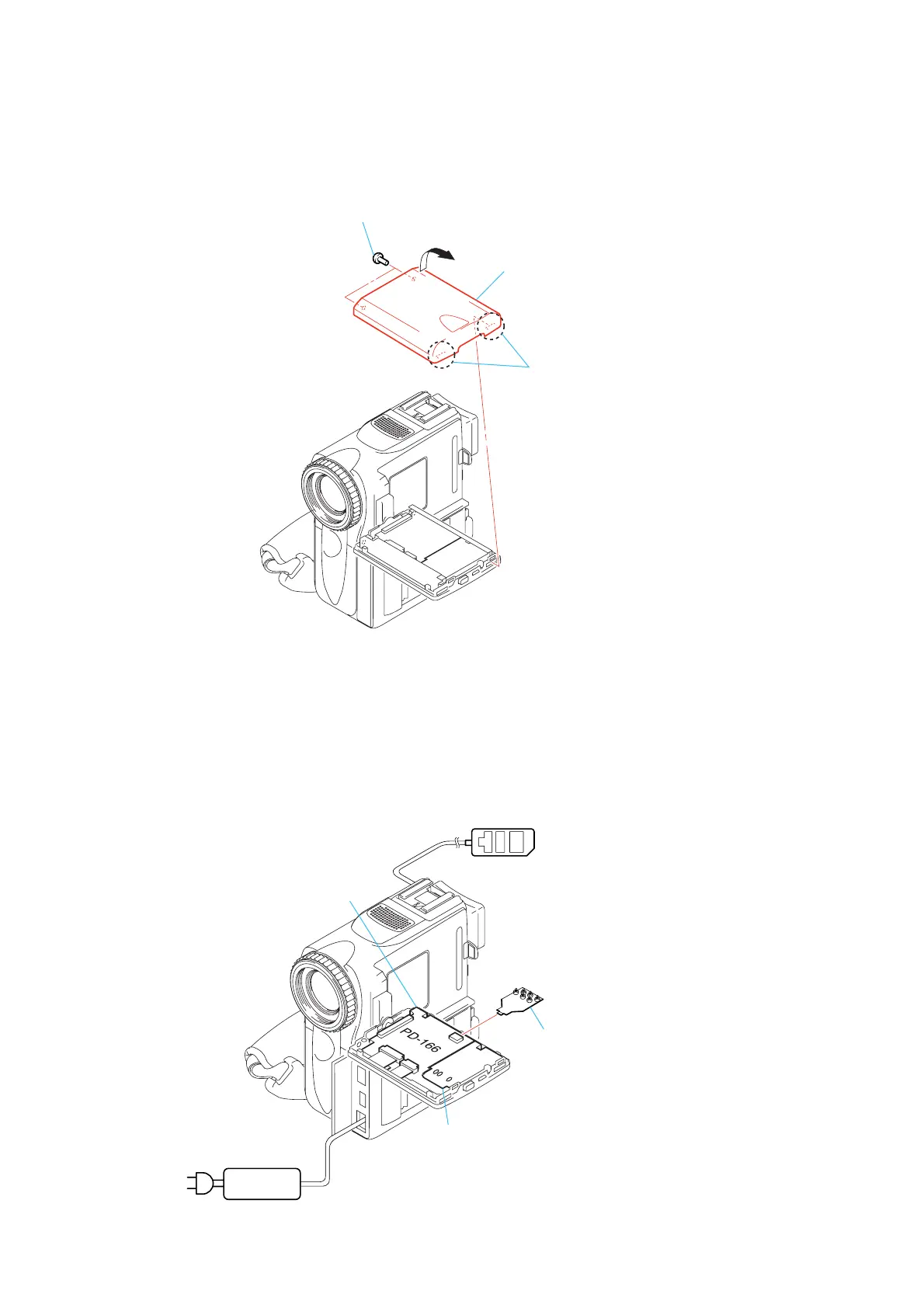

2-1. LCD CABINET (R) ASSEMBLY
[LCD BLOCK SERVICE POSITION]
1 Two screws
(M1.7)
2 Two claws
3 LCD cabinet (R) assembly
Inverter transformer unit
PD-166 board
Adjustment remote
commander (RM-95)
AC power
adaptor
AC IN
CPC jig for LCD panel
(J-6082-529-A)
