Sony DCR-PC101E - VIDEO out Level Check (VC-284 Board)

DCR-PC101/PC101E
5-56

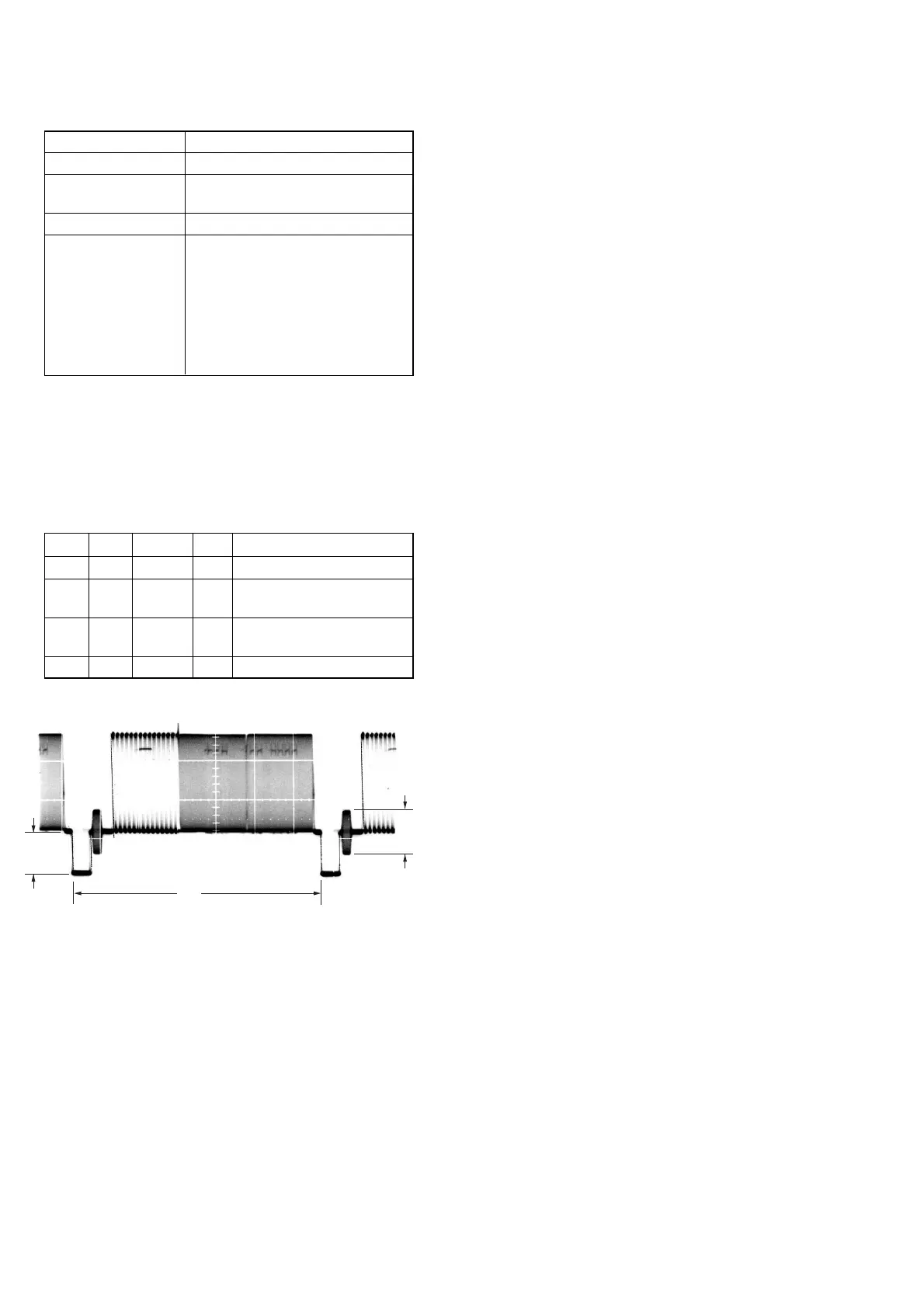

4. VIDEO OUT Level Check (VC-284 board)
Mode CAMERA
Subject Arbitrary
Measurement Point Video terminal of A/V jack
(75 Ω terminated)
Measuring Instrument Oscilloscope
Specified value Sync level: A = 286 ± 18 mVp-p
(NTSC)
A = 300 ± 18 mVp-p
(PAL)
Burst level: B = 286 ± 18 mVp-p
(NTSC)
B = 300 ± 18 mVp-p
(PAL)
Note 1: Check that the data of page: 0, address: 10 is “00”.
Note 2: NTSC model: DCR-PC101
PAL model: DCR-PC101E
Switch setting
1) DEMO MODE (Menu display) ....................................... OFF
Checking method:
Order Page Address Data Procedure
1 3 0C 02 Press PAUSE button.
2 Check the sync signal level
(A) to the specified value.
3 Check the burst signal level
(B) to the specified value.
4 3 0C 00 Press PAUSE button.
Fig. 5-3-9
H
B
A
