Sony DCR-PC101E - Board; LCD Section

2-9
DCR-PC101/PC101E

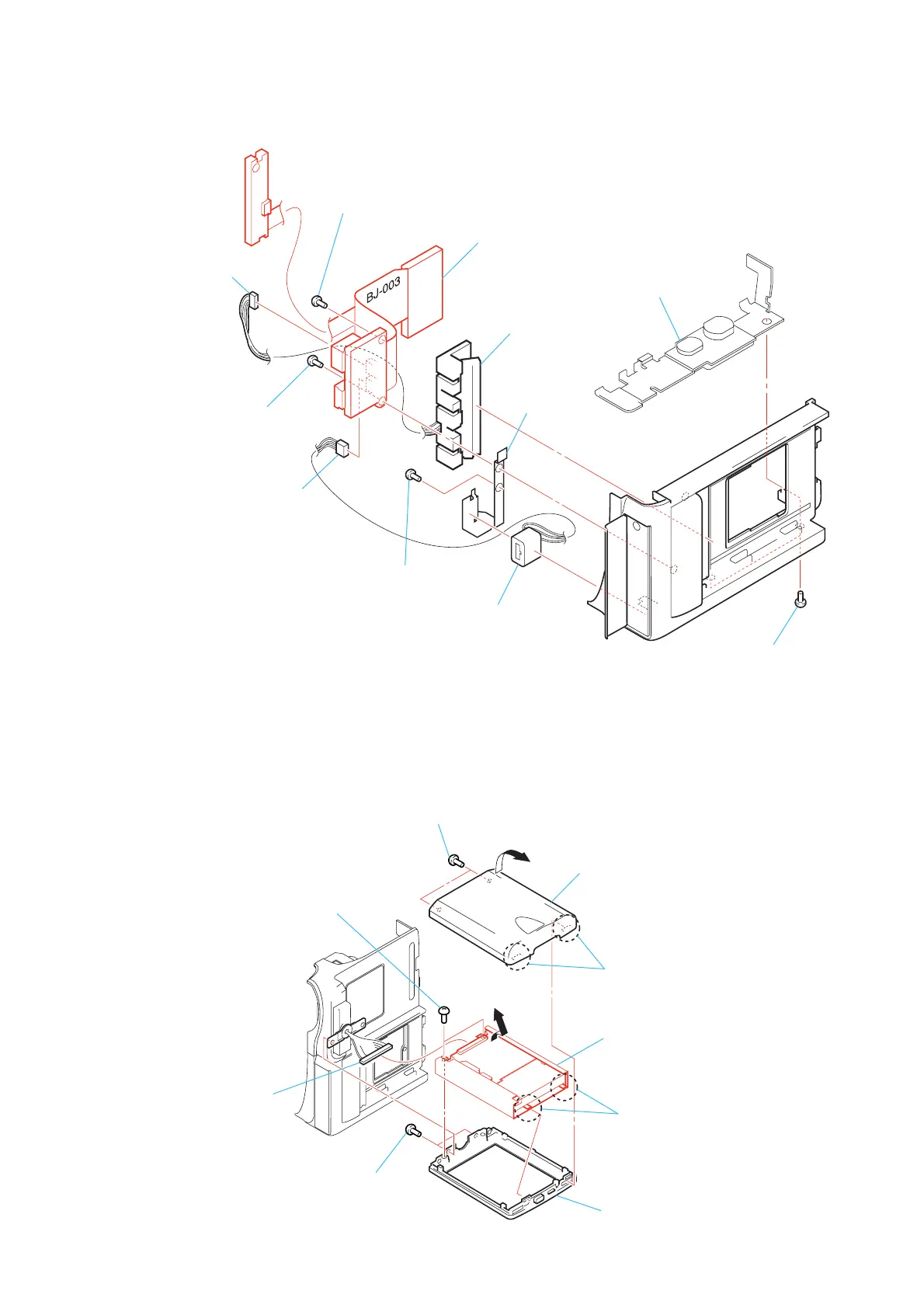

2-12. BJ-003 BOARD
2-13. LCD SECTION
7 BJ-003 board
5 Screw (M1.7 × 4)
6 Screw (M1.7)
9 Screw (M1.7 × 4)
3 Connector
(battery terminal
board) (CN001)
4 Connector
(battery terminal
board) (CN002)
8 Battery terminal
board
qa Battery terminal
board
0 BJ frame
2 Bottom flame section
1 Two screws
(M1.7)
1 Two screws
(M1.7)
5 Two screws
(M1.7)
4 Two screws
(M1.7)
6 Two claws
2 Two claws
7 Connector
(CN801)
3 LCD cabinet (R) assembly
8 LCD cabinet (L) assembly
9 LCD section
