Sony DCR-PC101E - Repair Parts List; Exploded Views; Main Section

DCR-PC101/PC101E
6-1
SECTION 6
REPAIR PARTS LIST
6-1. EXPLODED VIEWS
The components identified by mark
0 or dotted line with mark 0 are
critical for safety.
Replace only with part number speci-
fied.
Les composants identifiés par une
marque 0 sont critiquens pour la
sécurité.
Ne les remplacer que par une pièce
portant le numéro spécifié.
COVER
COVER
NOTE:
• -XX and -X mean standardized parts, so they may
have some difference from the original one.
• Items marked “*” are not stocked since they are
seldom required for routine service. Some delay
should be anticipated when ordering these items.
• The mechanical parts with no reference number in
the exploded views are not supplied.
• Accessories are given in the last of the electrical
parts list.

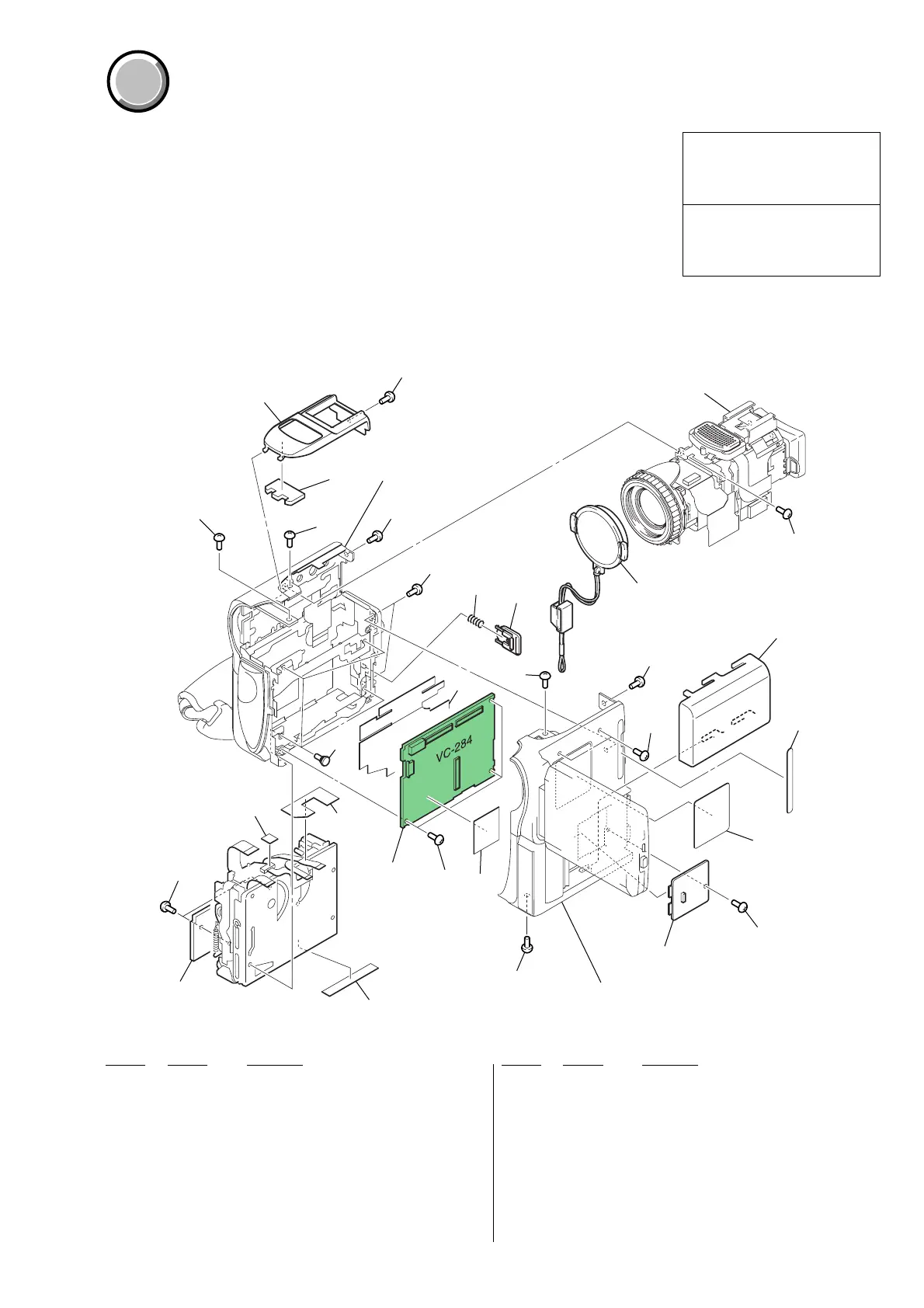

6-1-1. MAIN SECTION
ns: not supplied
Ref. No. Part No. Description Ref. No. Part No. Description
1 3-059-722-01 COVER, CASSETTE COMPARTMENT
2 4-974-725-01 SCREW (M1.7), LOCK ACE, P2
3 3-075-957-01 SHEET (MD), CN
4 3-070-940-01 TAPE (3), DF
5 3-075-312-01 COVER, MICROPHONE
6 X-3952-449-1 CAP ASSY, LENS
7 3-713-791-01 SCREW (M1.7X4), TAPPING, P2
8 3-062-128-01 SPRING, COMPRESSION
9 3-068-778-11 LOCK, BATTERY
10 3-057-482-01 COVER, BATTERY
11 3-075-315-01 LID, CPC
12 A-7078-264-A VC-284 BOARD, COMPLETE (SERVICE) (PC101)
12 A-7078-270-A VC-284 BOARD, COMPLETE (SERVICE) (PC101E)
14 3-062-214-01 SCREW (M1.4X1.5)
15 3-059-725-01 LABEL, LS
16 3-989-735-31 SCREW (M1.7), LOCK ACE, P2
17 3-076-493-01 PLATE (MIC), BLIND
18 3-075-307-11 SHEET, GUARD
20 3-075-956-02 SPACER (2), LOCK
1
2
3
5
2
7
17
2
7
16
16
16
16
6
8
9
2
2
2
10
20
18
11
12
2
4
14
15
ns
Lens block section
(See page 6-2, 6-3)
Cabinet (L) block assembly
(See page 6-4)
Cabinet (R) block section
(See page 6-5, 6-6)
ns
