Sony DCR-PC101E - LCD EVF Block Section

DCR-PC101/PC101E
6-3

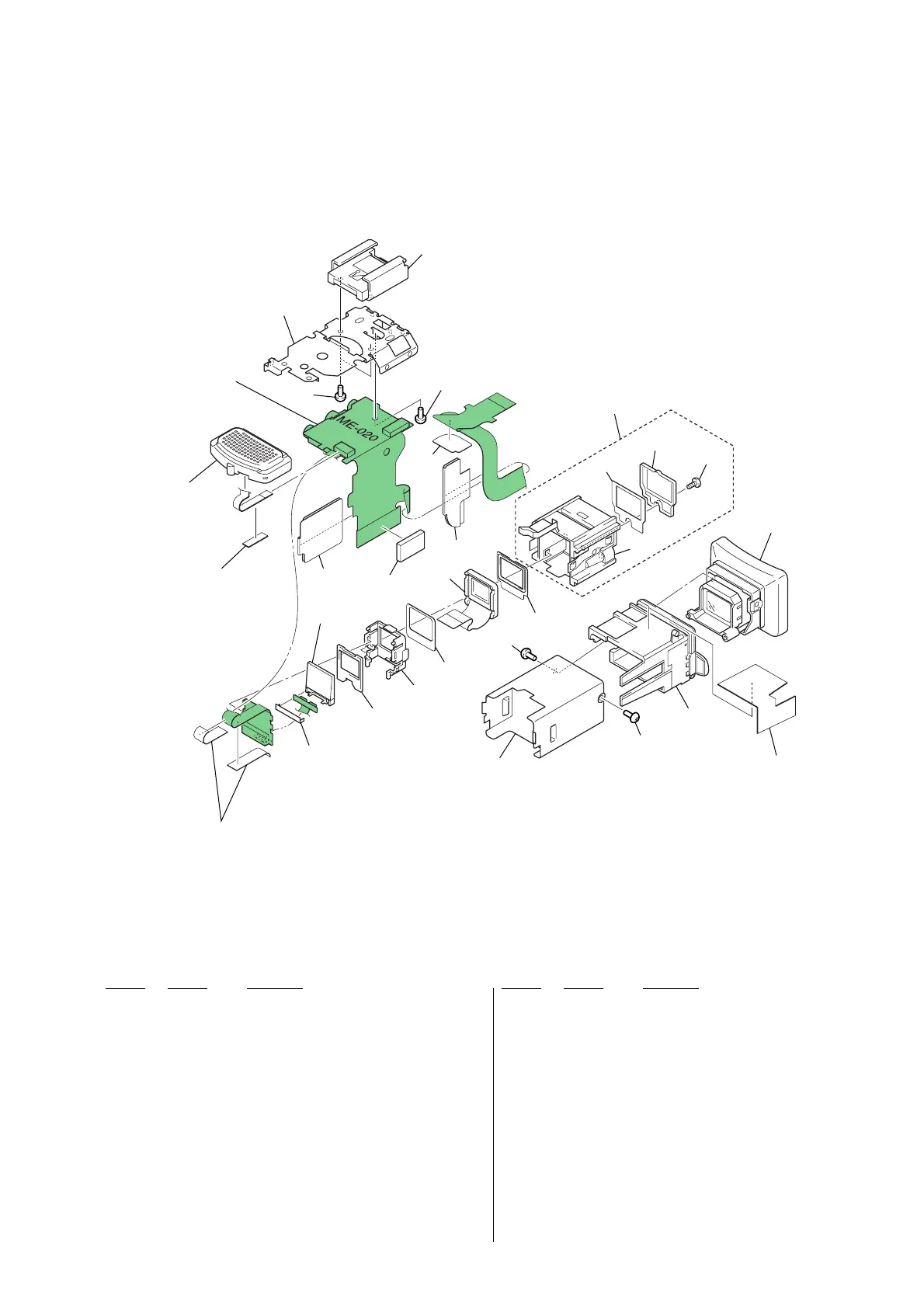

6-1-3. LCD EVF BLOCK SECTION
Ref. No. Part No. Description Ref. No. Part No. Description
101 A-7078-170-A ME-020 BOARD, COMPLETE
102 3-075-318-01 FRAME, SHOE
103 1-815-124-11 CONNECTOR, EXTERNAL (HOT SHOE)
104 3-075-811-01 SHEET, INSULATING (ME)
105 3-056-030-21 ACE (M1.7),0 PLATE 2 MAIN LOCK
106 4-974-725-01 SCREW (M1.7), LOCK ACE, P2
107 3-075-809-01 SHEET (ME), SHIELD
108 3-075-813-01 SHEET (ME2), SHIELD
109 3-069-940-01 SHEET METAL, BL RETAINER
110 3-062-205-11 CUSHION (B), BL
111 3-075-319-01 BL UNIT
112 3-068-772-01 CUSHION (L), BL
* 113 3-062-767-01 CUSHION, LCD
114 3-068-805-01 CUSHION, VF
115 3-068-796-01 FILTER, VF
116 X-3952-447-1 GUIDE ASSY, VF SLEEVE
117 3-713-791-11 SCREW (M1.7X5), TAPPING, P2
118 X-3952-644-1 LENS ASSY, VF
119 3-075-311-01 RING, VF REGULATION
120 3-989-735-01 SCREW (M1.7), LOCK ACE, P2
121 3-068-764-01 SLEEVE, VF
122 3-076-497-01 SHEET (ME)
123 3-076-492-01 SHEET (MIC), SHIELD
124 3-076-654-01 TAPE (VF)
125 3-076-631-01 TAPE (FLEXIBLE)
126 1-476-810-11 BLOCK(0.44), LIGHT GUIDE PLATE
LCD903 8-753-028-54 LCX033AN-1 (SERVICE)
MIC901 1-477-268-11 MICROPHONE UNIT
114
115
117
118
124
119
120
121
120
116
113
112
111
110
109
125
101
123
105
102
103
104
106
108
126
122
107
LCD903
ns
MIC901
ns: not supplied
