Sony DCR-PC101E - Overall Mechanism Deck Section (J100)

DCR-PC101/PC101E
6-7

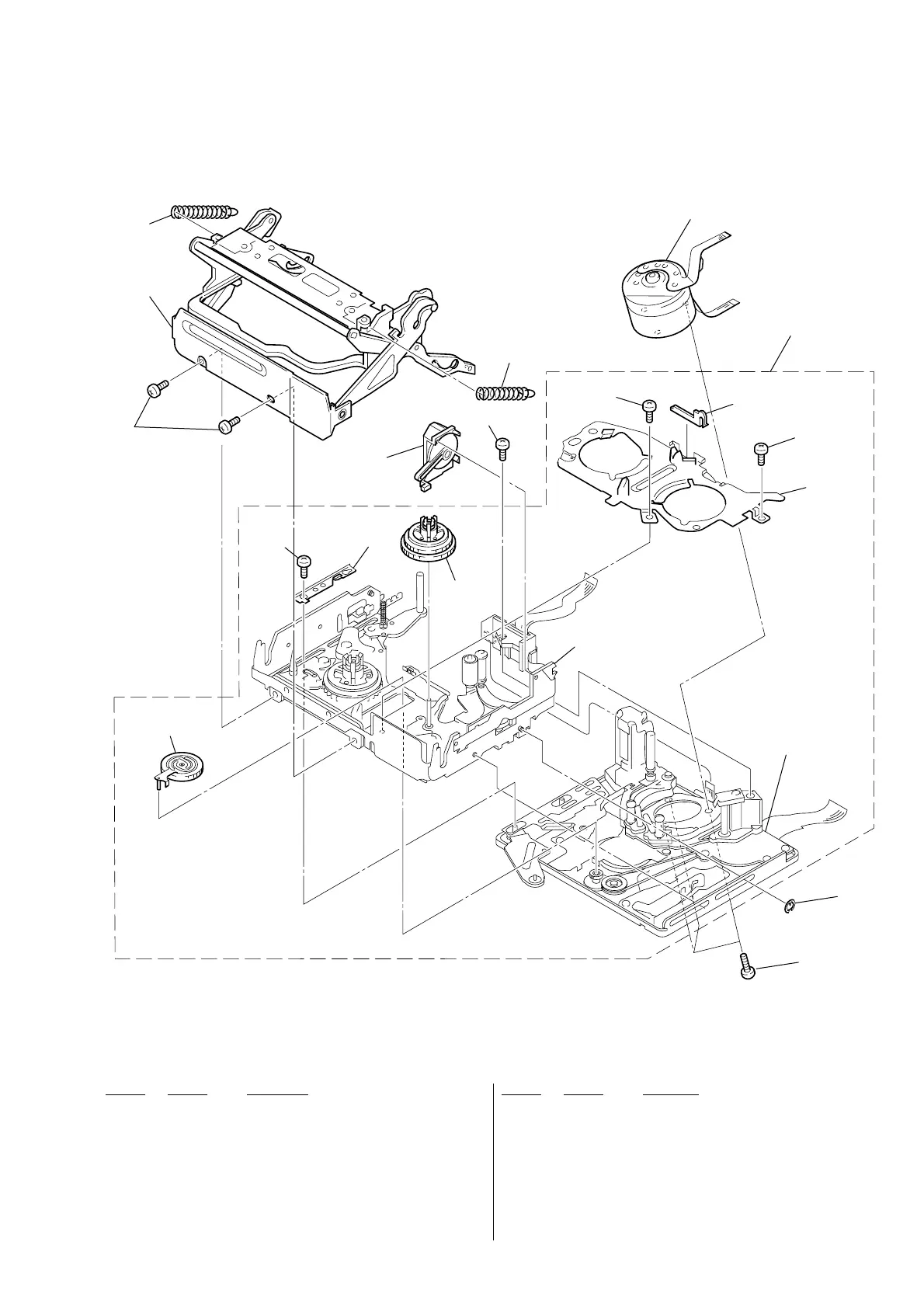

6-1-7. OVERALL MECHANISM DECK SECTION (J100)
Ref. No. Part No. Descriptions Ref. No. Part No. Description
701 3-703-816-14 SCREW (M1.4)
702 X-3952-017-3 CASSETTE COMPARTMENT ASSY
703 3-059-082-01 SPRING, TENSION
(CASSETE COMPARTMENT S)
704 3-059-208-01 SPRING (CASSETTE COMPARTMENT T)
705 X-3950-370-3 DAMPER ASSY
706 3-059-101-03 RETAINER, LS GUIDE
707 7-624-102-04 STOP RING 1.5, TYPE -E
708 A-7028-133-D MD (J100) SUB ASSY (Y)
709 3-703-816-41 SCREW (M1.4X2.5), SPECIAL HEAD
710 X-3950-364-1 GEAR ASSY, GOOSENECK
711 X-3950-366-1 TABLE ASSY, T REEL
712 3-075-097-01 SCREW (M1.4X1.4), SPECIAL HEAD
713 3-059-093-01 RETAINER, LED
714 X-3950-361-1 PLATE ASSY, RETAINER
M901 A-7048-940-A DRUM (DEH-18A-R) (SERVICE)
703
704
M901
705
706
701
709
701
708
707
701
702
711
710
714
712
712
713
LS chassis block assembly
(See page 6-8)
Mechanism chassis
block assembly
(See page 6-9)
