DCR-PC101/PC101E
6-8

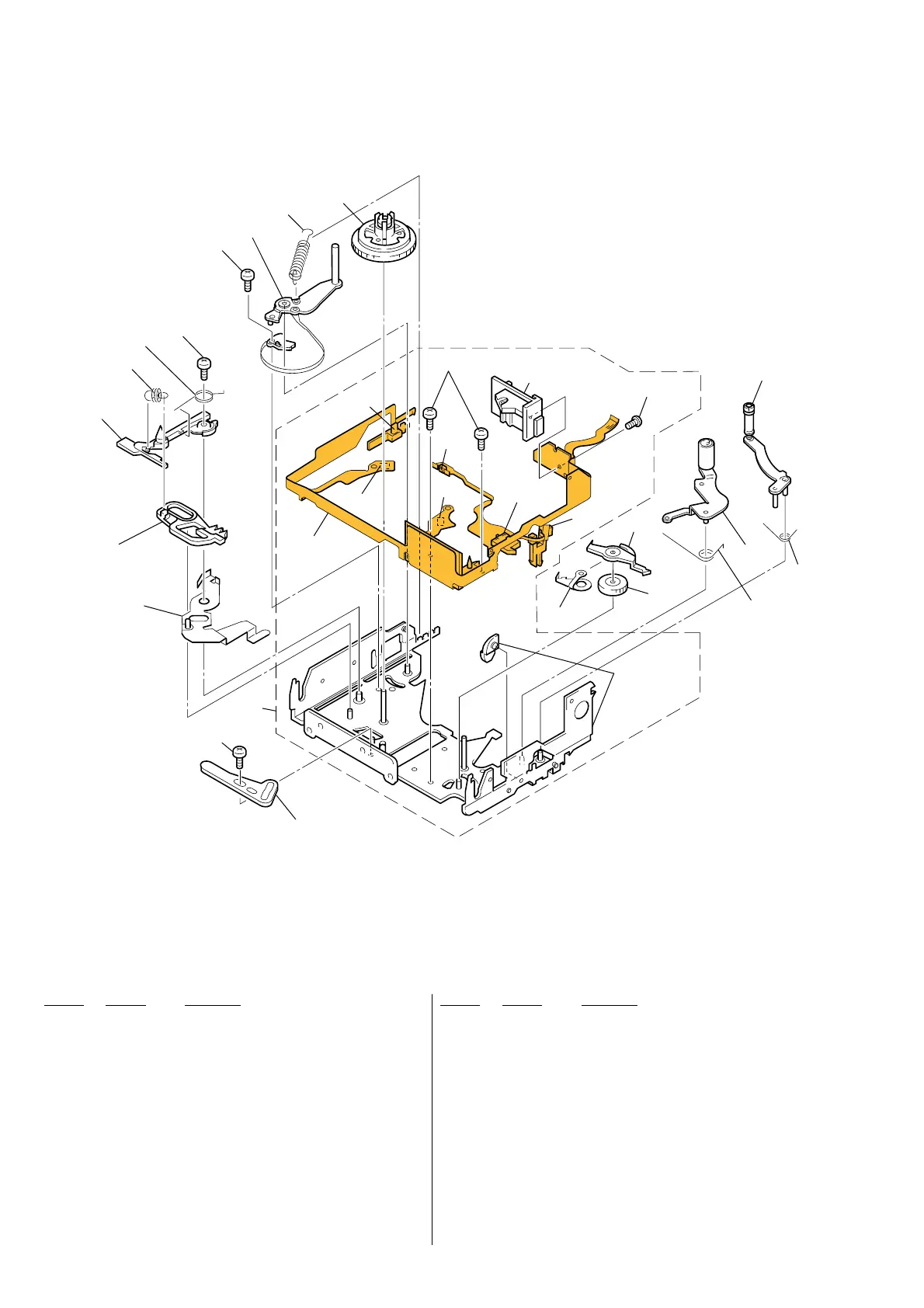

6-1-8. LS CHASSIS BLOCK ASSEMBLY
Ref. No. Part No. Description Ref. No. Part No. Description
751 3-059-173-01 PLATE, LS CAM
752 3-075-097-01 SCREW (M1.4X1.4), SPECIAL HEAD
753 A-7094-816-B LS BLOCK ASSY
754 X-3950-371-1 ARM ASSY, BRAKE (S) DRIVING
755 3-059-166-01 BRAKE (S)
756 3-059-146-01 POSITIONING (S), CASSETTE
757 3-059-167-01 SPRING (BRAKE S), TENSION COIL
758 3-059-169-01 SPRING (BRAKE S ARM), TORSION
759 3-703-816-14 SCREW (M1.4)
760 3-059-090-01 SCREW (M1.4X2.5), SPECIAL HEAD
* 761 X-3950-358-4 TG1 ASSY
762 3-059-156-01 SPRING (TENSION REGULATOR)
763 X-3950-365-2 TABLE ASSY, S REEL
764 A-7094-819-A TG7 BLOCK ASSY
765 3-059-165-01 SPRING (TG7 RETURN), TORSION
766 X-3950-359-1 ARM ASSY, PINCH
767 3-059-161-01 SPRING (PINCH RETURN), TORSION
768 3-059-170-01 BRAKE (T)
769 3-059-171-01 GEAR (T), BRAKE
770 3-059-172-01 SPRING (T), BRAKE
D901 8-719-078-71 DIODE LN57A,SO (TAPE LED)
H901 8-719-067-74 ELEMENT, HOLE HW-105A-CDE-T (S REEL)
H902 8-719-067-74 ELEMENT, HOLE HW-105A-CDE-T (T REEL)
Q901 8-729-028-71 TRANSISTOR, PN166,SO (TAPE END)
Q902 8-729-028-71 TRANSISTOR, PN166,SO (TAPE TOP)
S903 1-572-288-11 SWITCH, PUSH (C.C. DOWN)
ns: not supplied
754
755
756
757
758
759
761
760
762
763
764
765
766
767
D901
Q901
753
768
769
770
S903
Q902
H901
H902
FP-102
(Note)
ns
ns
ns
ns
752
751
Note: FP-102 is included in the LS sub assy and is attached
to chassis by hot-press.
Because installation of FP-102 requires a very high
accuracy, FP-102 is not supplied as an independent
service parts.
