Sony DCR-PC101E - LCD Block Assembly

DCR-PC101/PC101E
6-6
Ref. No. Part No. Description Ref. No. Part No. Description
251 3-075-321-01 SHEET, PANEL PROTECTION
252 A-7078-169-A PD-166 BOARD, COMPLETE
* 253 3-051-232-01 CLIP, PCB
0 254 1-476-669-11 INVERTER TRANSFORMER UNIT
255 3-075-322-01 SPACER, PANEL
257 X-3952-459-1 CABINET (R) ASSY, LCD (PC101E)
257 X-3952-517-1 CABINET (R) ASSY, LCD (PC101)
258 X-3952-439-1 HINGE ASSY, LCD
259 1-961-736-11 HARNESS (PB-051)
260 3-070-376-11 COVER (UPPER), HINGE
261 X-3952-445-1 PLATE ASSY, BLIND
262 3-075-327-01 SHEET, CONNECTOR RETAINER
263 A-7096-839-A FP-470 FLEXIBLE BOARD (SERVICE)
264 3-070-377-11 COVER (LOWER), HINGE
265 3-075-306-01 CABINET (R)
266 X-3952-443-1 CABINET (L) ASSY, LCD
267 3-989-735-31 SCREW (M1.7), LOCK ACE, P2
268 4-974-725-01 SCREW (M1.7), LOCK ACE, P2
269 3-060-704-01 SHEET (N), BL SHIELD
270 3-713-791-01 SCREW (M1.7X4), TAPPING P2
271 3-068-791-01 SPACER, PD
LCD901 8-753-051-47 ACX311AKA-1 (SERVICE)
0 ND901 1-517-931-11 TUBE, FLUORESCENT, COLD CATHODE
TA901 1-476-593-21 PANEL, (TP-1770)

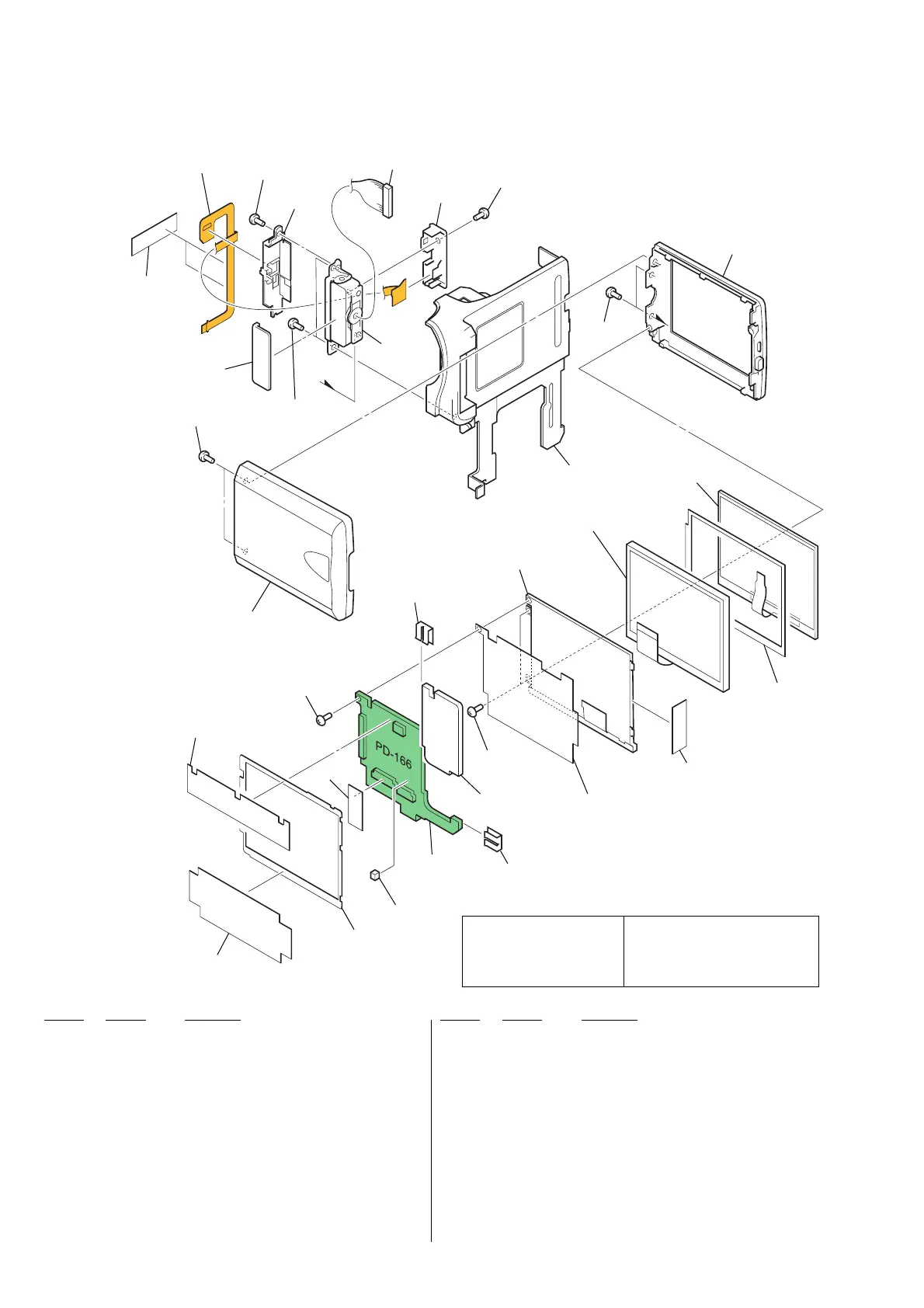

6-1-6. LCD BLOCK ASSEMBLY
ns: not supplied
The components identified by
mark 0 or dotted line with
mark 0 are critical for safety.
Replace only with part num-
ber specified.
Les composants identifiés par une
marque 0 sont critiques pour la
sécurité.
Ne les remplacer que par une pièce
portant le numéro spécifié.
