Sony DCR-PC101E - Cabinet (BT) Assembly

DCR-PC101/PC101E
6-5
Ref. No. Part No. Description Ref. No. Part No. Description
201 3-075-314-01 FRAME, BJ
202 4-974-725-01 SCREW (M1.7), LOCK ACE, P2
203 3-973-497-91 SCREW (M1.7), 0-NO, +P2
204 A-7078-172-A BJ-003 BOARD, COMPLETE
205 3-989-735-31 SCREW (M1.7), LOCK ACE, P2
206 3-075-324-01 PLATE, DV FIXED
207 3-075-320-01 FRAME, BOTTOM
208 3-075-316-01 SCREW, TRIPOD
209 X-3952-440-1 CABINET (BT) ASSY
210 X-3952-629-1 JACK COVER (DV) ASSY
211 3-075-808-01 SHEET (VC), RADIATION
212 3-076-631-01 SHEET , COVER
213 7-600-004-62 SHEET, INSULATING, BJ
214 3-072-500-01 TAPE (N)
215 3-713-791-01 SCREW (M1.7X4), TAPPING, P2
BT901 1-694-796-11 TERMINAL BOARD, BATTERY
J901 1-815-005-11 CONNECTOR, DC-IN

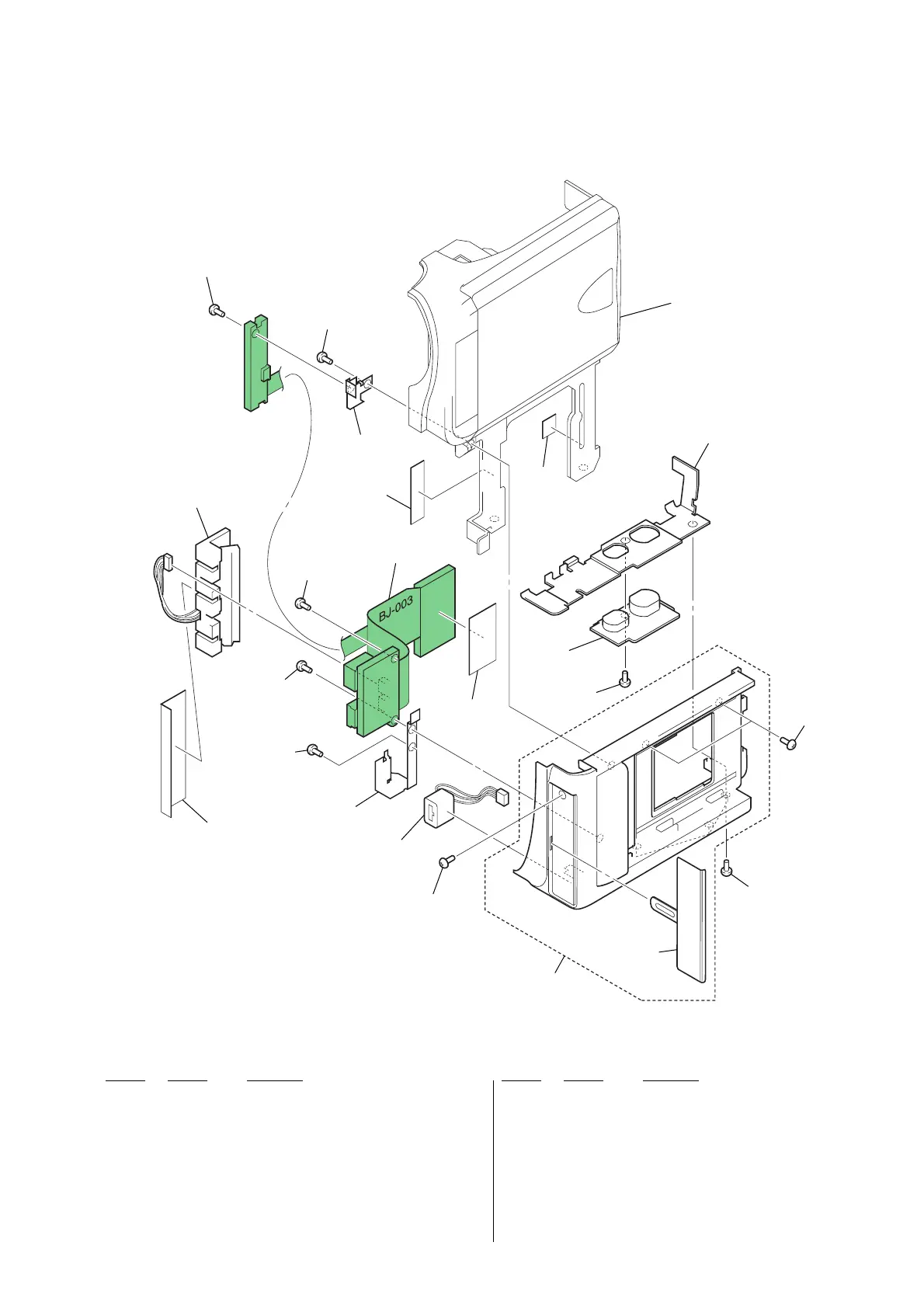

6-1-5. CABINET (BT) ASSEMBLY
208
207
205
205
202
209
210
202
201
204
212
213
211
205
205
206
202
214
215
J901
BT901
215
LCD block assembly
(See page 6-6)
