Sony DCR-PC101E - Lens Block Section

DCR-PC101/PC101E
6-2

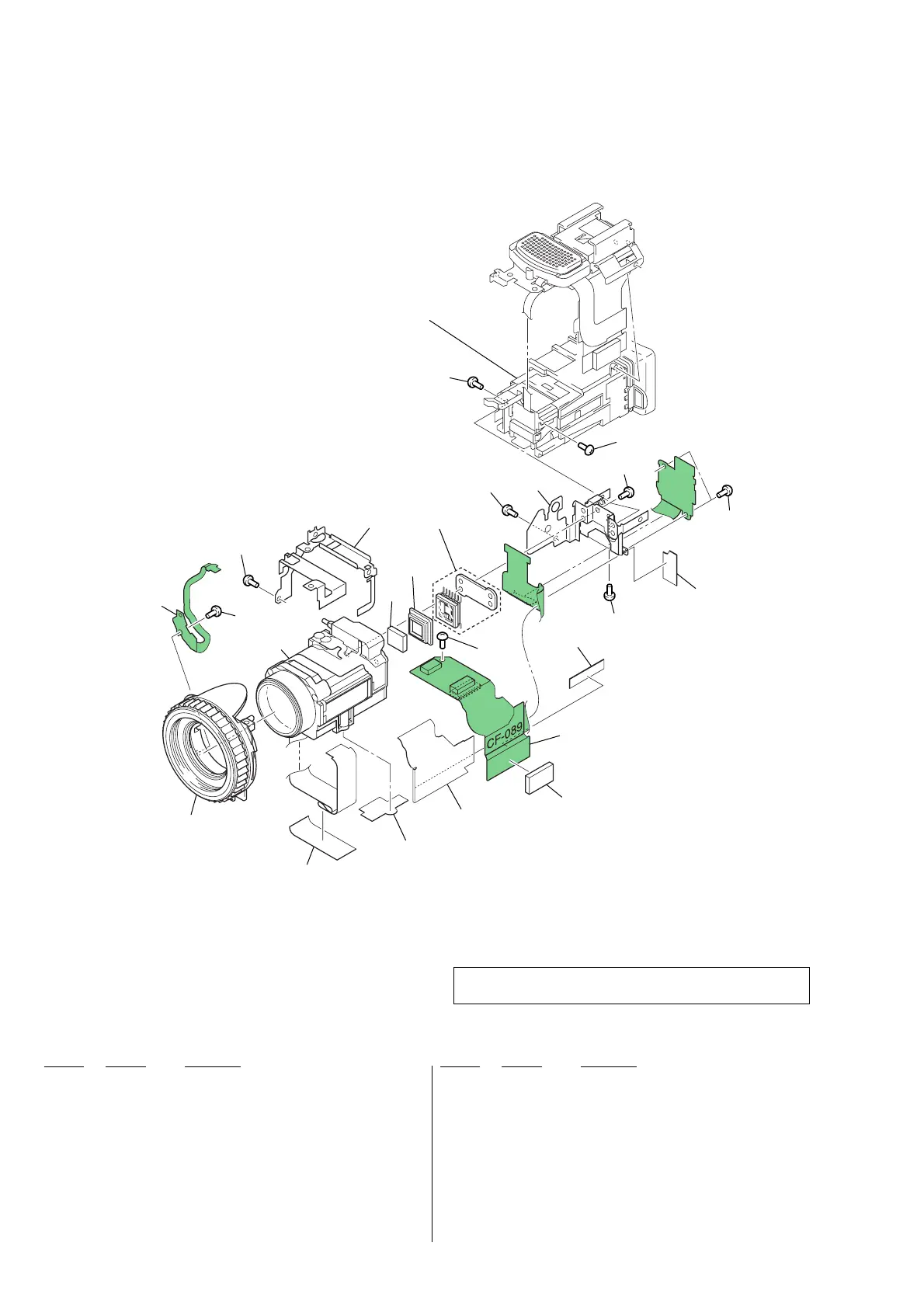

6-1-2. LENS BLOCK SECTION
(Note) Be sure to read “Precuations for Replacement of CCD
Imager” on page 4-8 when changing the CCD imager.
Ref. No. Part No. Description Ref. No. Part No. Description
51 X-3952-446-1 RING ASSY, MF
52 8-848-756-01 DEVICE, LENS LSV-750A
53 A-7078-174-A MF-326 BOARD, COMPLETE
54 3-713-791-01 SCREW (M1.7X4), TAPPING, P2
55 X-3952-671-1 FRAME ASSY, LENS
56 1-758-569-11 FILTER BLOCK, OPTICAL
57 3-053-973-01 RUBBER (W), SEAL
58 X-3952-451-1 FRAME ASSY, CD
59 4-974-725-01 SCREW (M1.7), LOCK ACE, P2
60 A-7078-171-A CF-089 BOARD, COMPLETE (PC101)
60 A-7078-299-A CF-089 BOARD, COMPLETE(PC101E)
61 3-075-812-01 SHEET, CF PROTECTION
62 3-075-810-01 SHEET (CF), SHIELD
63 3-076-656-01 TAPE (LENS)
64 3-076-491-01 SHEET,PROTECTION,LENS FLEXIBLE
65 3-713-791-41 SCREW (M1.7X5), TAPPING, P2
66 3-076-497-01 SHEET (ME)
67 3-076-657-01 TAPE (CF), FLEXIBLE PROTECTION
IC301 A-7031-367-A CCD BLOCK ASSY (CCD IMAGER) (Note)
51
52
53
54
54
59
60
66
61
62
63
64
55
56
57
54
54
67
58
59
59
59
65
IC301
(Note)
LCD EVF block section
(See page 6-3)
