Sony DCR-PC101E - Mechanism Deck

2-5
DCR-PC101/PC101E

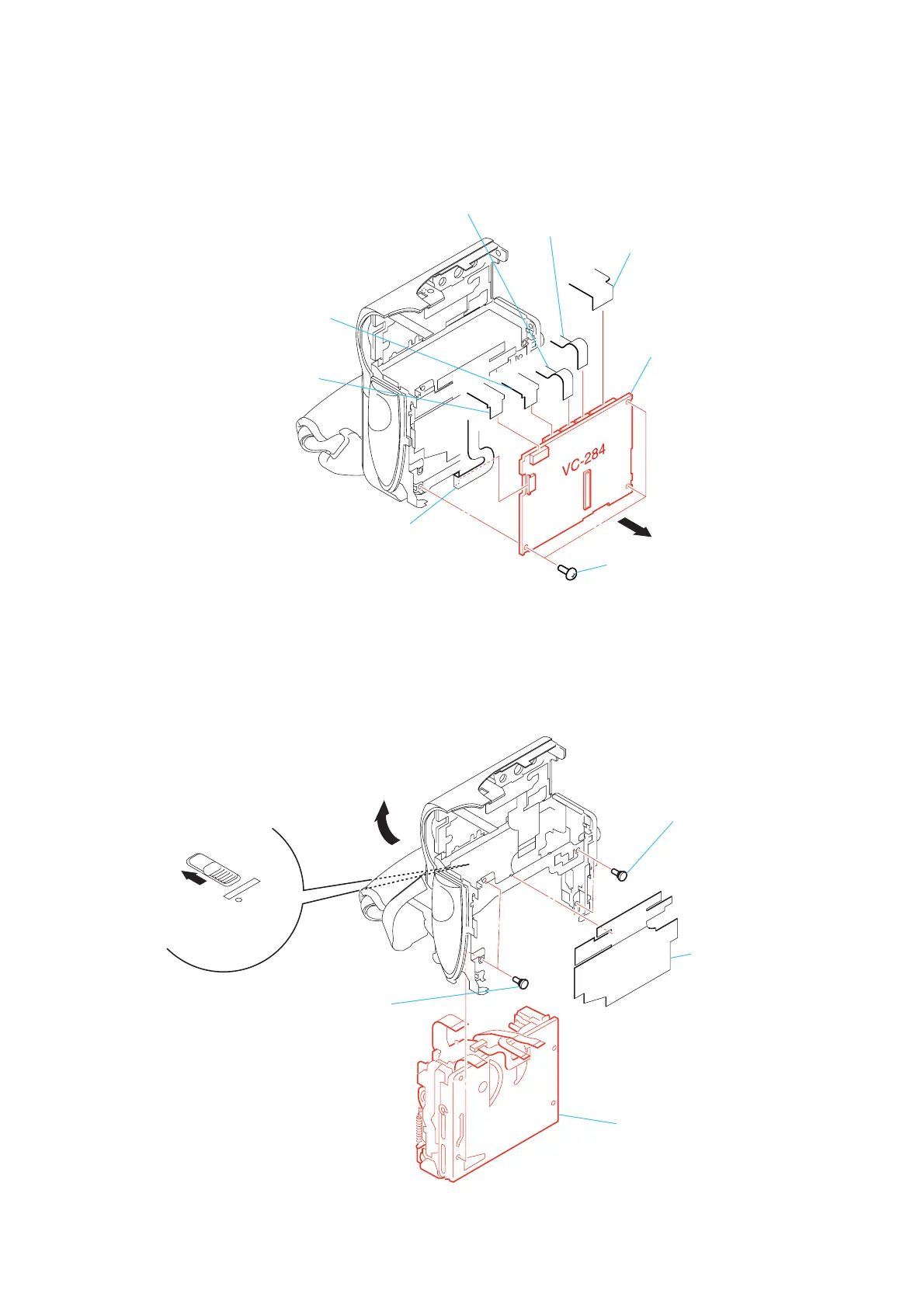

2-6. VC-284 BOARD
1 Flexible board
(CN1005)
3 Three screws
(M1.7)
9 VC-284 board
4 Remove the VC-284 board
in the direction of arrow.
8 Flexible board
(CN1004)
2 Flexible board
(CN1009)
5 Flexible board
(CN1008)
7 Flexible board
(CN1901)
6 Flexible board
(CN1007)
2-7. MECHANISM DECK
2 Two screws
(M1.4 × 1.5)
6 Mechanism deck
1 Heat insulating sheet
3 Two screws
(M1.4 × 1.5)
4 Slide the eject knob.
5 Open the
cabinet (G) assembly.
