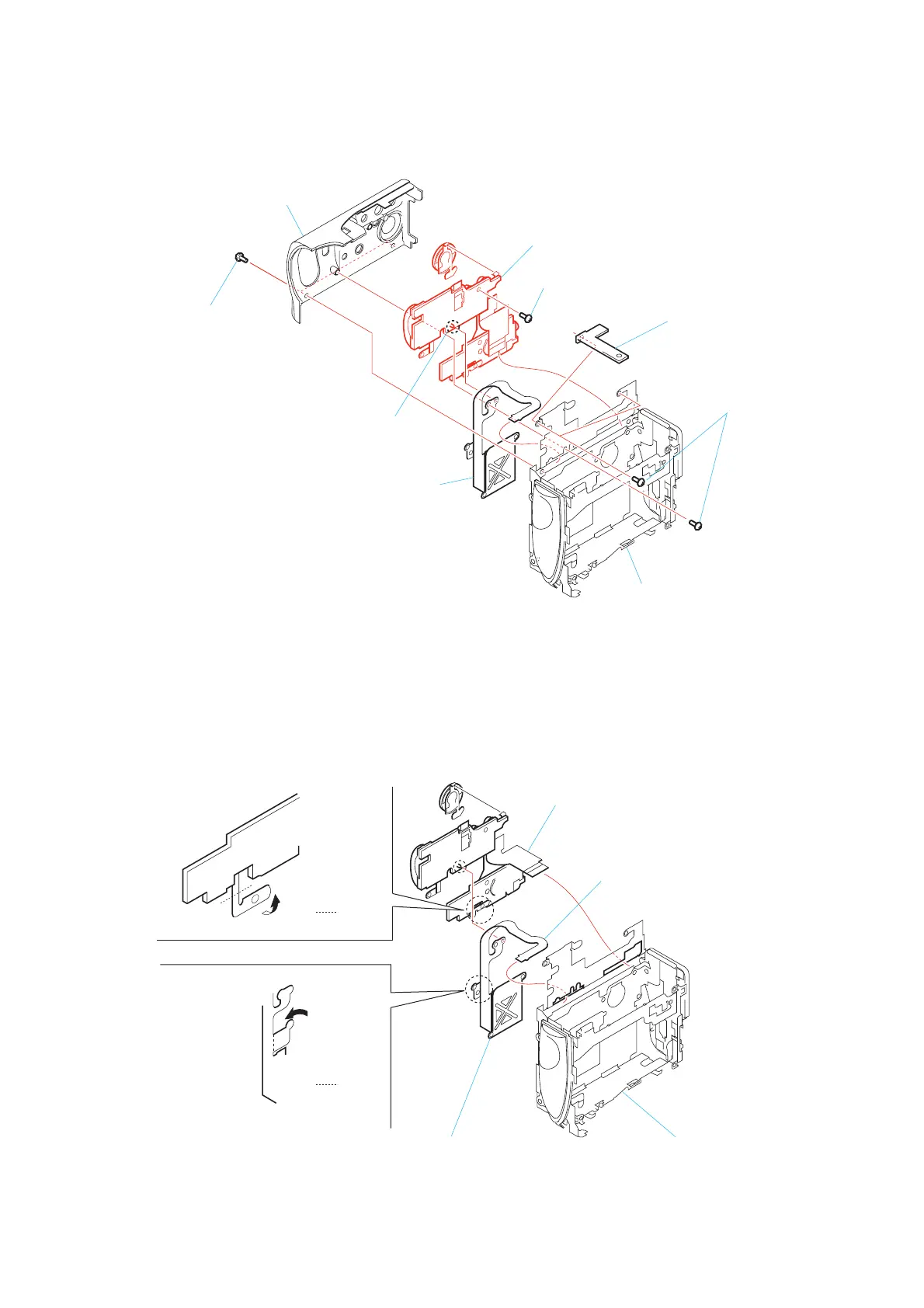

2-9. CONTROL SWITCH BLOCK (FK-2850)
9 Control switch block
(FK-2850)
8 Memory stick
connector
7 Boss
2 Three screws
(M1.7 × 4)
5 Screw (M1.7 × 4)
1 Two screws
(M1.7)
6 Cabinet (L)
3 Chassis section
4 Reinforcement
[NOTE FOR INSTALLATION OF CONTROL SWITCH BLOCK (FK-2850)]
: Fold
: Fold
Pass FP-347 flexible board
through chassis block.
Pass the cable of the flexible of control switch block
through chassis block.
Chassis block
Memory stick connector
block
