Sony DCR-PC101E - Board

2-10
DCR-PC101/PC101E

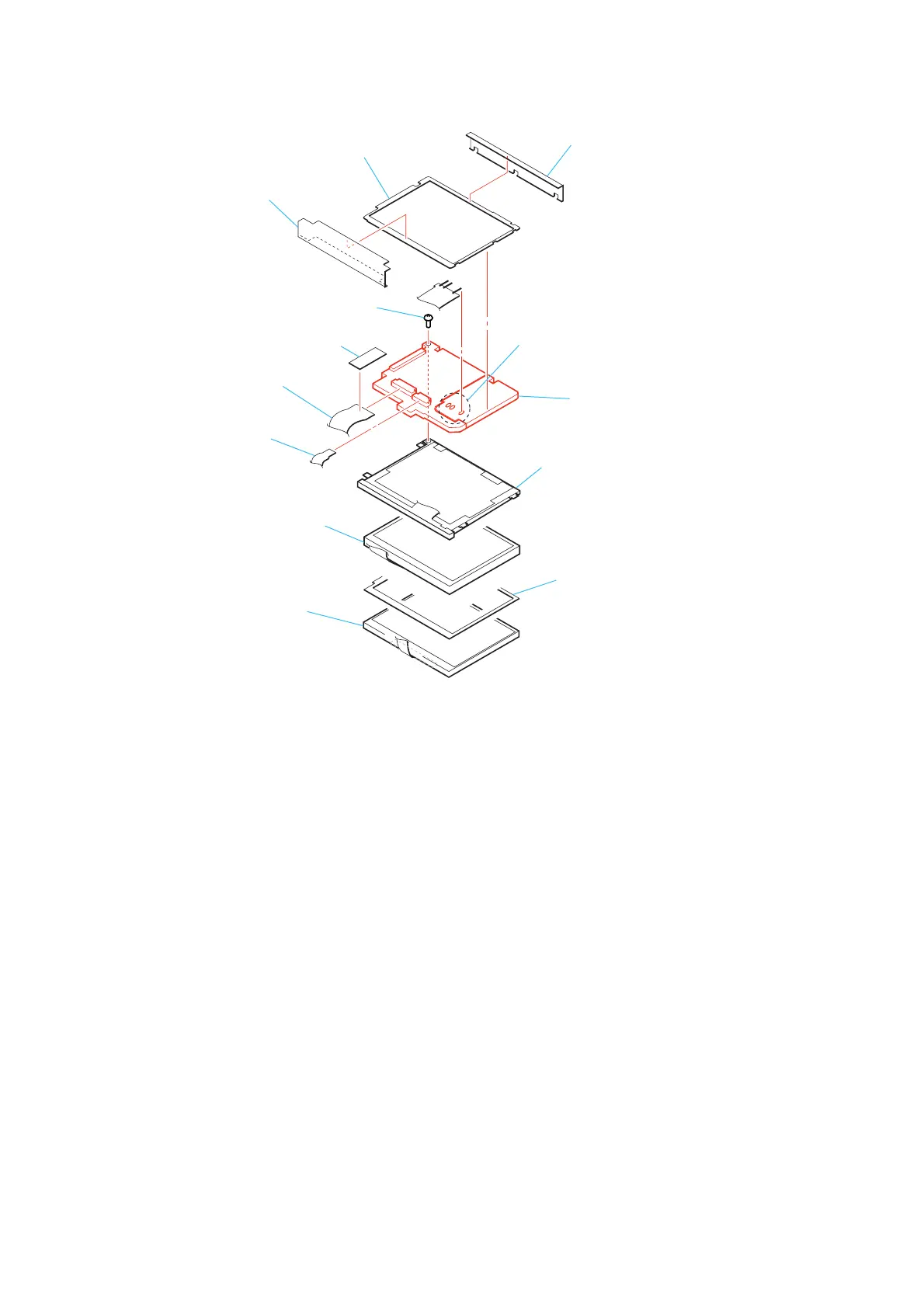

2-14. PD-166 BOARD
1 Sheet (R)
5 Flexible board
(panel (TP-1770))
(CN802)
6 Panel (TP-1770)
7 Panel spacer
9 LCD unit
8 Flexible board
(LCD) (CN804)
4 Tape
3 Panel protection sheet
2 Sheet (T)
0 Remove three solders
qs Back light unit
qd PD-166 board,
inverter transformer block
qa Screw (M1.7)
