2-11
DCR-PC101/PC101E

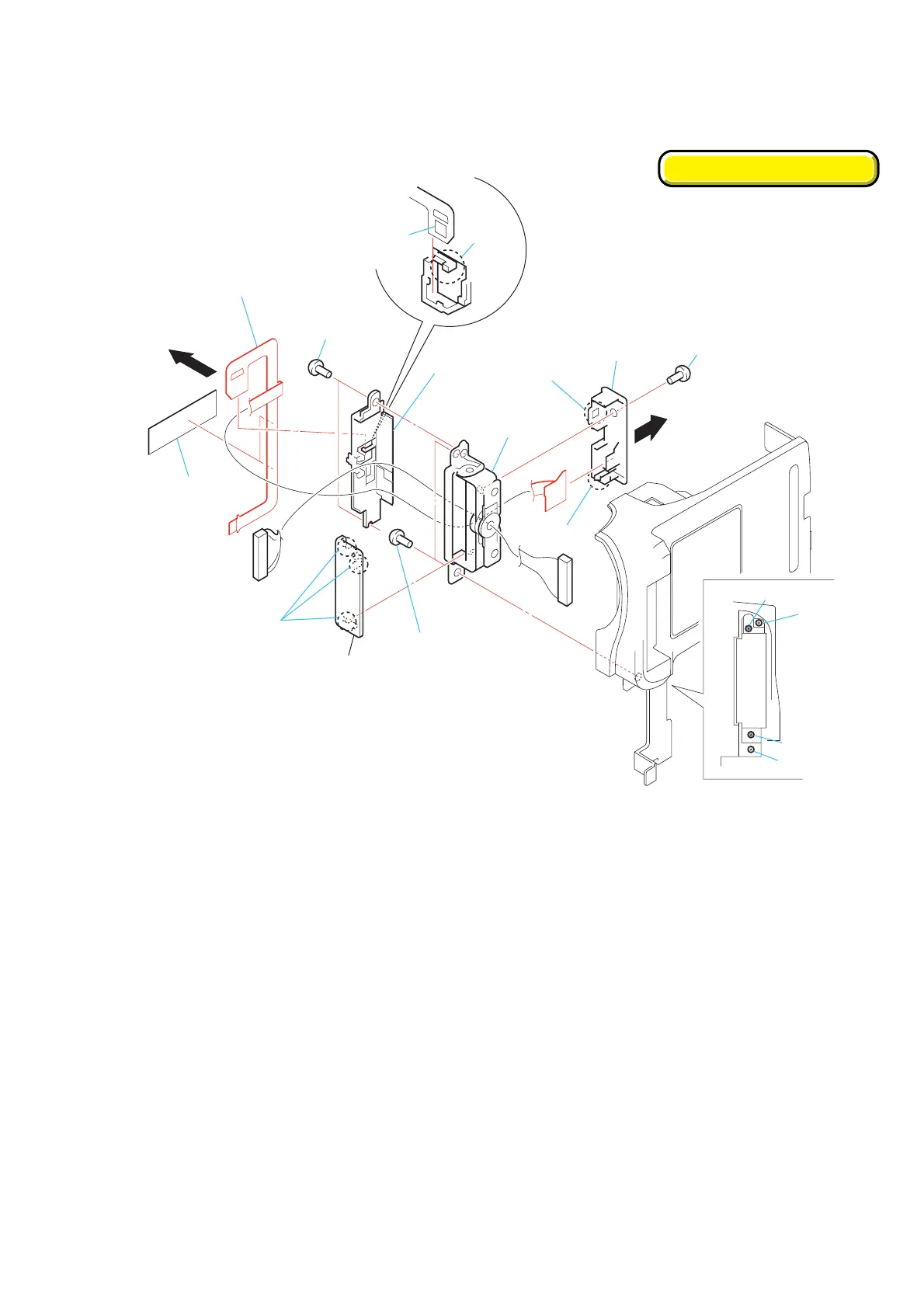

2-15. FP-470 FLEXIBLE BOARD
7 Three claws
8 Hinge cover
(upper)
1 Two connector
retainer sheet
2 Two screws
(M1.7 × 4)
qg FP-470 flexible board
6 Blind plate
assembly
qs LCD
hinge assembly
9 Screw (M1.7)
3 Two screws
(M1.7)
3
2
qa
qf Hinge cover
(lower)
5 Claw
S4701
(Panel open)
0 Claw
qd Claw
4
3
2
NOTE FOR INSTALLATION
NOTE FOR INSTALLATION
