DCR-PC101/PC101E
6-4
Ref. No. Part No. Description Ref. No. Part No. Description
151 X-3952-450-1 COVER ASSY, FRONT
152 4-974-725-01 SCREW (M1.7), LOCK ACE, P2
153 3-989-735-01 SCREW (M1.7), LOCK ACE, P2
154 3-076-649-01 SHEET, NS ELECTROSTATIC
155 A-7078-173-A NS-014 BOARD, COMPLETE
156 3-062-198-01 RETAINER, MS CONNECTOR
157 3-713-791-01 SCREW (M1.7X4), TAPPING, P2
158 1-794-262-11 CONNECTOR, MEMORY STICK
159 3-068-740-01 SLEEVE (REAR)
160 X-3952-442-1 GRIP ASSY, HOLD
161 3-068-739-01 SLEEVE (FRONT)
162 3-062-189-02 SCREW (M2.6), SPECIAL HEAD (STEP)
163 X-3952-458-1 CABINET (G) ASSY (PC101E)
163 X-3952-515-1 CABINET (G) ASSY (PC101)
164 X-3952-457-1 COVER (AV) ASSY, JACK (PC101E)
164 X-3952-516-1 COVER (AV) ASSY, JACK (PC101)
165 A-7078-267-A SWITCH BLOCK, CONTROL (FK-2850) (SERVICE)
166 1-477-267-11 SWITCH BLOCK, CONTROL (PS-2850)
167 3-075-313-11 CABINET (REAR)
168 X-3952-438-1 FRAME ASSY, MAIN
169 3-975-921-01 SHEET, VIBRATION PROOF
170 3-075-309-01 KNOB, EJECT
171 3-075-310-01 CABINET (L) (PC101)
171 3-075-310-11 CABINET (L) (PC101E)
172 1-681-188-21 FP-347 FLEXIBLE BOARD
173 3-076-510-02 REINFORCEMENT
SP601 1-529-857-11 SPEAKER (1.6cm)

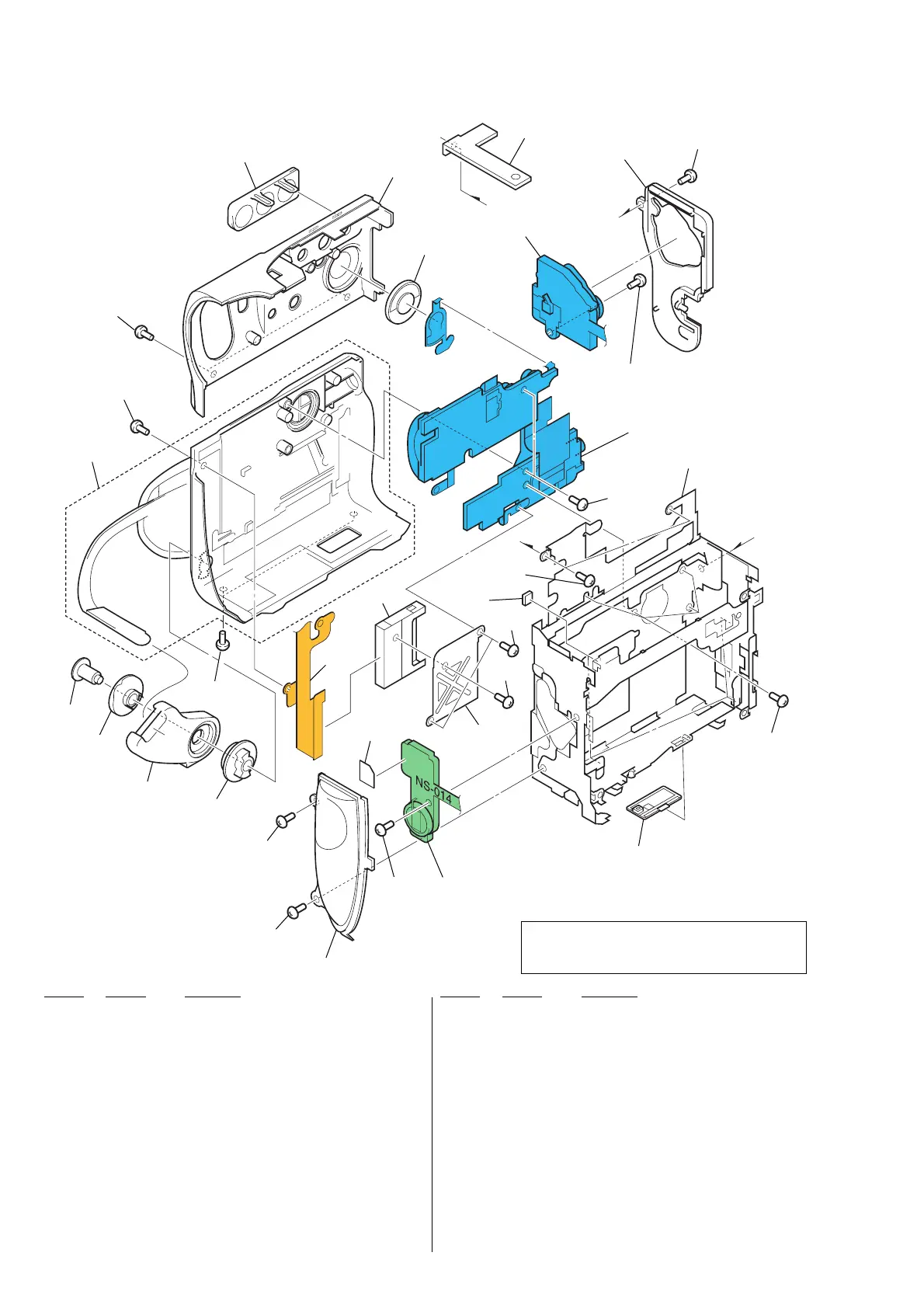

6-1-4. CABINET (L) BLOCK ASSEMBLY
ns: not supplied
CAUTION
Danger of explosion if battery is incorrectly replaced.
Replace only with the same or eqivalent type.
151
152
152
155
154
158
157
156
157
169
153
172
159
160
152
161
162
163
152
152
171
164
152
157
157
157
168
170
165
166
152
167
SP601
173
@
!
: BT001 (BATTERY, LITHIUM SECONDARY)
Board on the mount position. (See page 4-93.
)
A
A
B
B
