1-1. SERVICE NOTE
1. POWER SUPPLY DURING REPAIRS
In this unit, about 10 seconds after power is supplied to the battery terminal using the regulated power supply (8.4V), the power is shut off so
that the unit cannot operate.
These following two methods are available to prevent this. Take note of which to use during repairs.
Method 1.
Use the AC power adaptor (AC-L10, AC-VQ800 etc.).
Method 2.
Connect the servicing remote commander RM-95 (J-6082-053-B) to the LANC jack, and set the commander switch to the “ADJ” side.

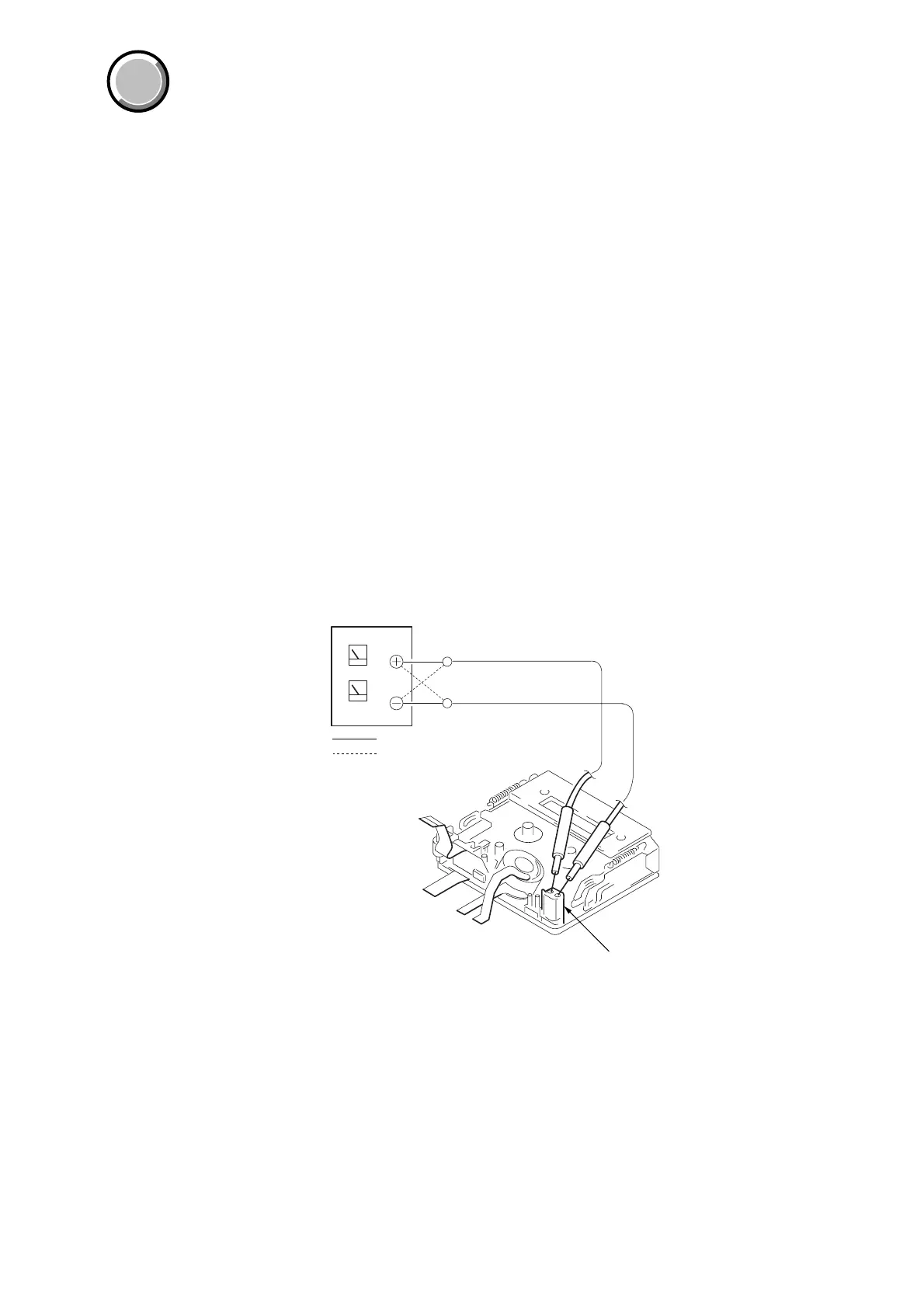

Loading motor
DC power supply
(+4.5Vdc)
: Unloading
: Loading
2. TO TAKE OUT A CASSETTE WHEN NOT EJECT (FORCE EJECT)
1 Refer to 2-2 to remove the cabinet (R) block assembly.
2 Refer to 2-3 to remove the lens (-EVF) block.
3 Refer to 2-6 to remove the VC-284 board.
4 Refer to 2-7 to remove the mechanism deck.
5 Supply +4.5V from the DC power supply to the loading motor and unload with a pressing the cassette compartment.
