Sony DCR-PC101E - Control Switch Block (PS-2850); Cabinet (BT) Block

2-8
DCR-PC101/PC101E

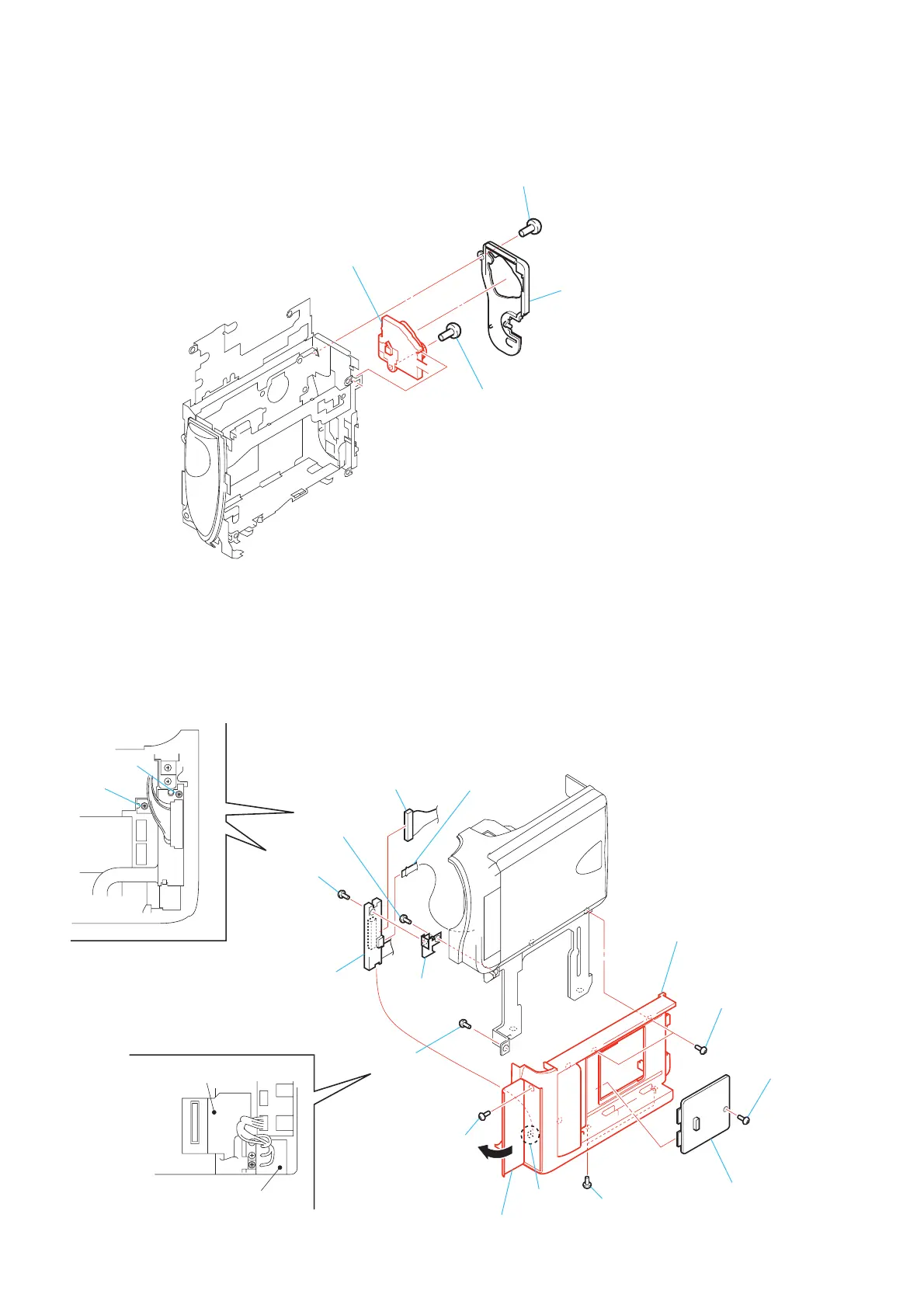

2-10. CONTROL SWITCH BLOCK (PS-2850)
2-11. CABINET (BT) BLOCK
1 Screw (M1.7)
2 Cabinet (rear)
3 Screw (M1.7)
4 Control switch block
(PS-2850)
DC-IN connector
BJ-003 board
0 Open the DC-IN lid
6 Claw
7 Remove the
BJ-003 board
1 Screw
(M1.7)
3 Two screws
(M1.7)
4 Two screws
(M1.7 × 4)
qa Screw
(M1.7)
qf Screw
(M1.7)
qd DV
fixed plate
qg Cabinet (BT) block
qs Screw
(M1.7)
8 FP-470 flexible board
(CN007)
9 Connector
(CN007)
5 Screw
(M1.7)
qs
5
2 CPC lid
