DB-9 Output Index 0: Set to desired CTCSS 1/10 or CTCSS 1/3 tone
DB-9 Output Index 1: Set to 18 KHz Data Clock
DB-9 Output Index 2: Set to desired CTCSS 1/10 or CTCSS 1/3 tone.

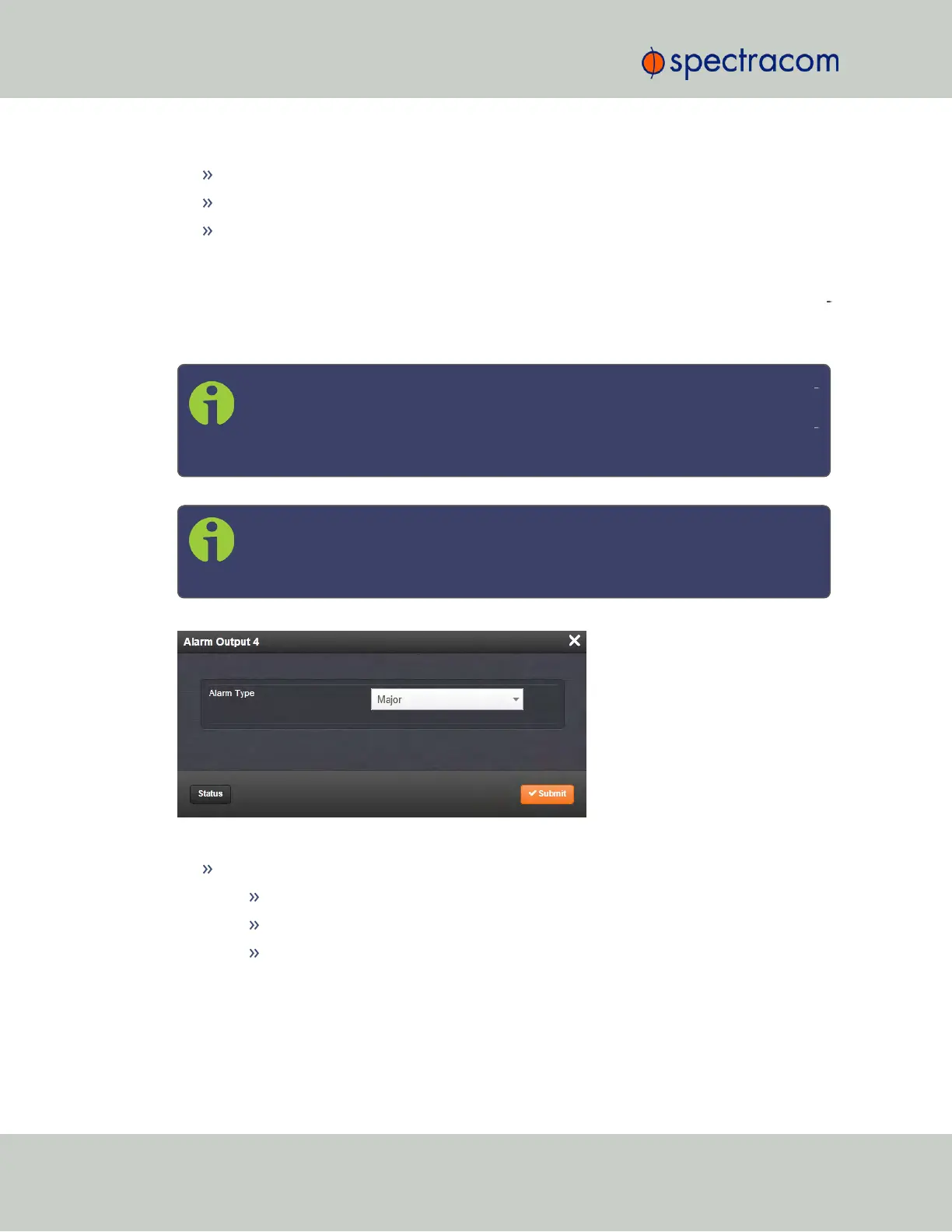

Alarm Outputs: Edit Window
To configure one of the ALARM Outputs, go to its Edit window. For instructions, see: "Con
figuring Option Card Inputs/Outputs" on page330.
The Web UI list entry for this card is named: Simulcast.
Note: Alarm Output 0 through Alarm Output 3 are reserved by SecureSync. Num
bering for alarm outputs from the option card will begin at Alarm 4, which is
available on the DB-9 output, while Alarms 5 and 6 are assigned to the RJ-12 con
nector.
Note: You can configure the alarm type (None, Minor, or Major) for both the DB-
9 and RJ-12 connectors. For additional information on alarm types, see "Minor
and Major Alarms" on page317.
The Edit window allows the configuration of the following settings:
Alarm Type:
None—Will not output for an alarm
Minor—Will output on a minor alarm
Major—Will output on a major alarm.
386 SecureSync User Reference Guide
APPENDIX
