3.
Click the graph in the NTP Status Summary panel.
4.
The NTP Performance Graph panel will appear.

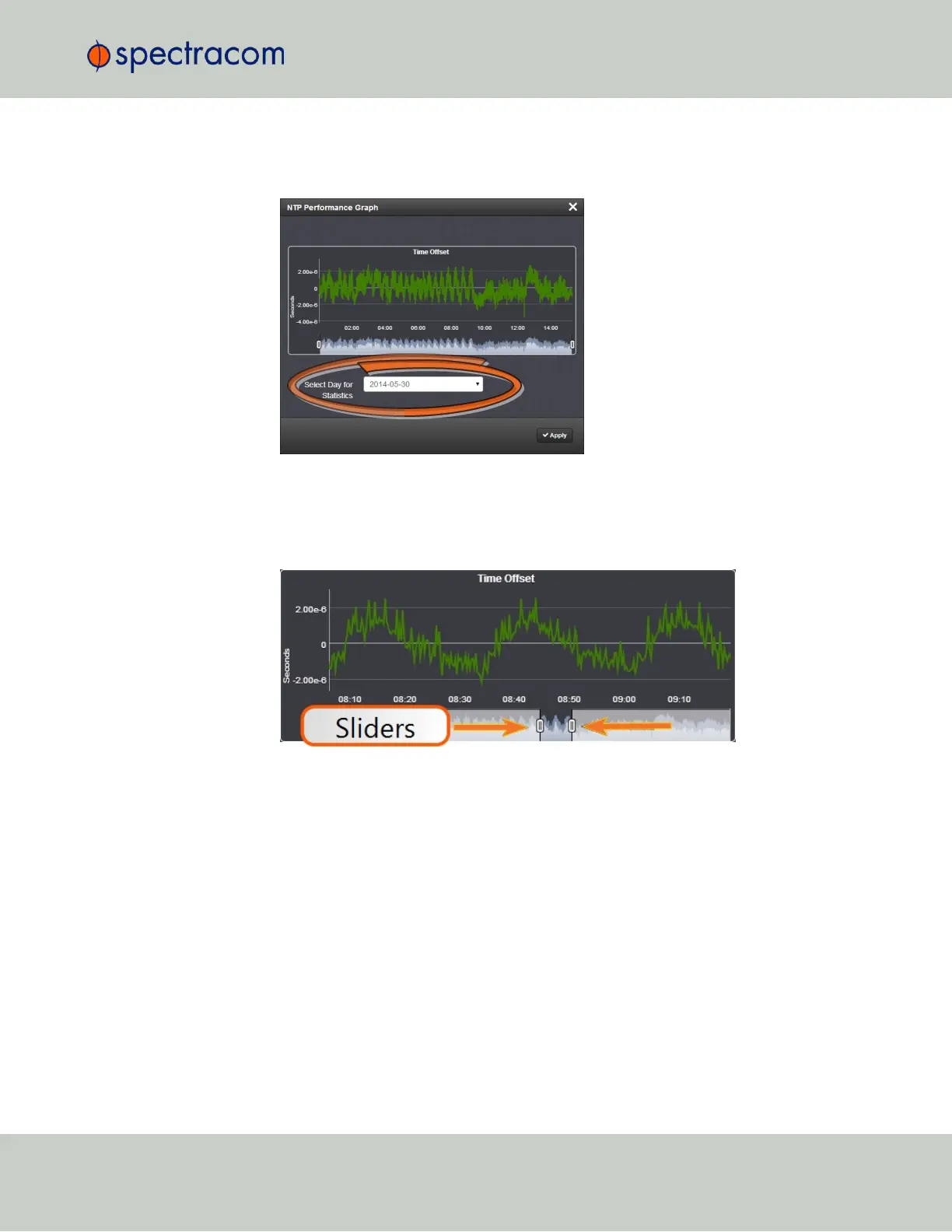

5.
To select the statistics for a particular day, select a date from the drop-down list in the
Select Day for Statistics field. The default date is the present date. Click Apply.
6.
To display a higher resolution graph for a shorter time span, move one or both time
sliders at the bottom of the graph inwards.
The NTP Frequency Offset Performance Graph
To view the NTP Frequency Offset performance graph:
1.
Navigate to MANAGEMENT > NETWORK: NTP Setup.
2.
In the NTP Status Summary panel locate the Frequency Offset graph.
4.6 Quality Management
CHAPTER 4 • VersaSync User Manual Rev. 6.0
209
