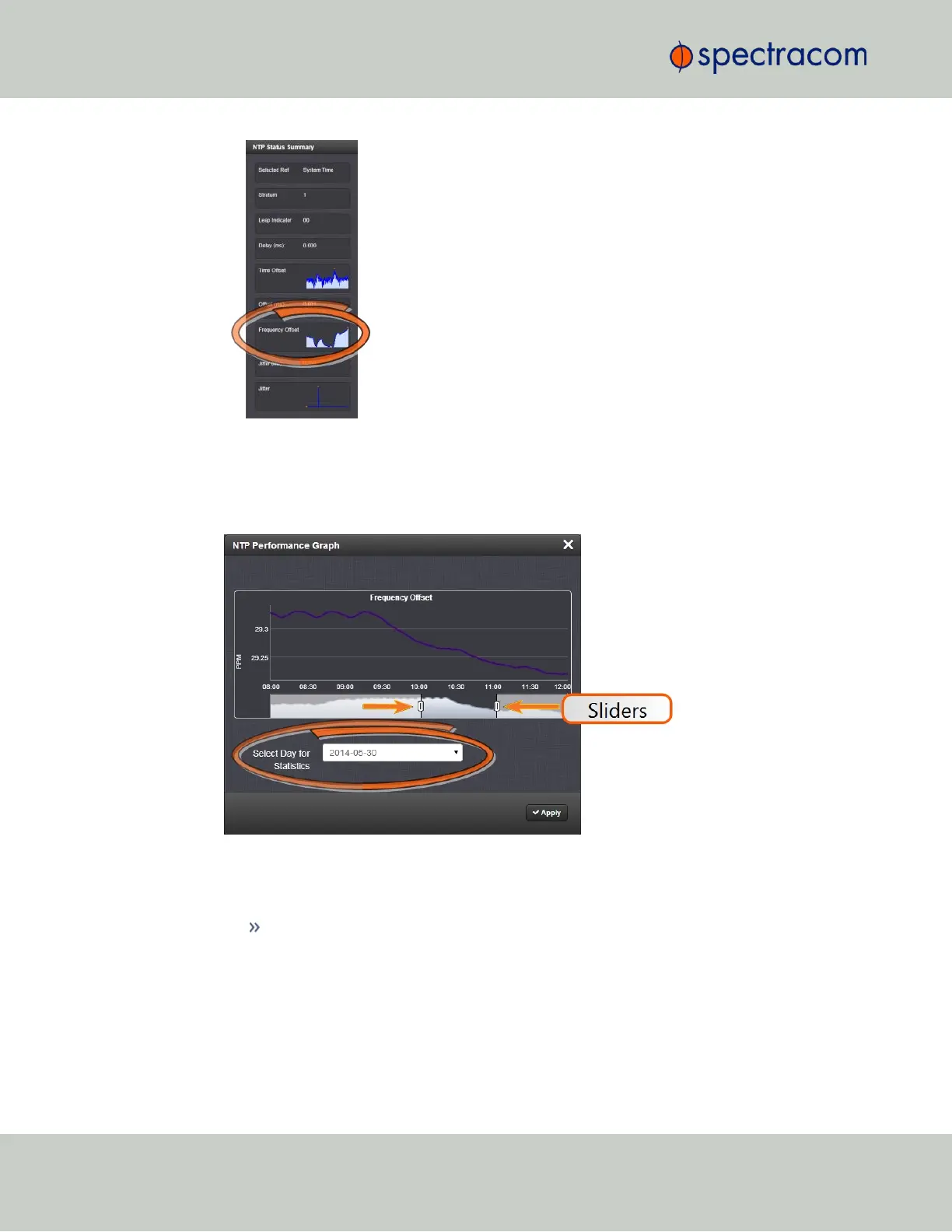

Click the graph in the NTP Status Summary panel.
4.
The NTP Performance Graph panel will appear (the data may be displayed with a
delay). The X-axis represents time, the Y-axis shows the frequency offset in parts-per-mil-
lion (PPM); e.g. 290PPM is equivalent to .0290percent.
5.
To select the statistics for a particular day, select a date from the drop-down list in the
Select Day for Statistics field (highlighted in green in the illustration above). The default
date is the present date. Click the Apply button.
To display a higher resolution graph of a shorter time frame, move one or both
of the two sliders inwards.
The NTP Jitter Performance Graph
To view the NTP Jitter performance graph:
