The table below illustrates the signal combinations that can be assigned to the 18 configurable
pins.

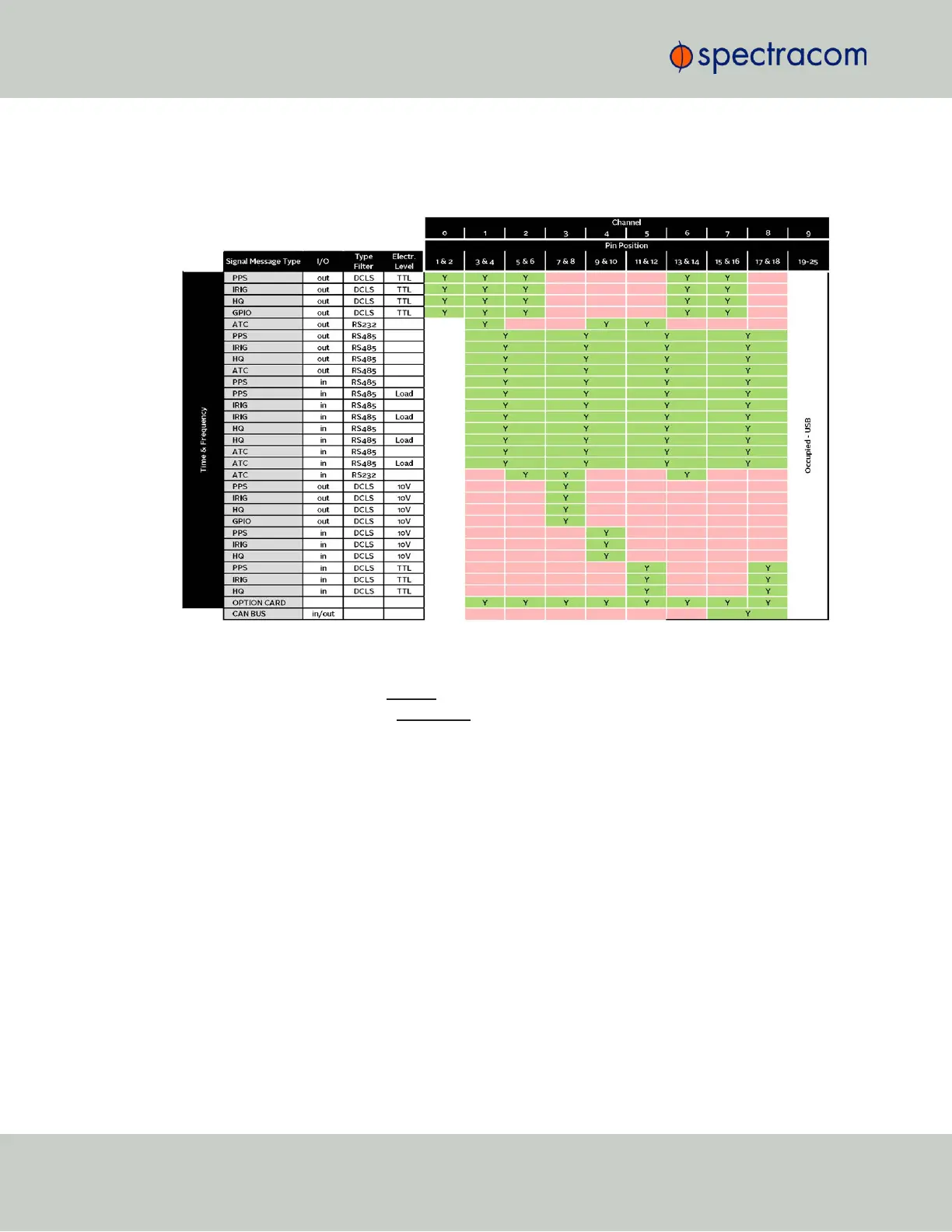

Table 2-3:
I/O signal mapping to Channels
Notes:
Pins to Channels (e.g., pins 3 & 4= Channel 1)
green = Signal Message Type can be assigned to this Channel (RS485 requires two Channels)
red = This Signal Message type cannot be assigned to this Channel
ATC = ASCII Time Code
Configuring a new Input or Output
1.
In the VersaSync Web UI, navigate to MANAGEMENT > NETWORK: Pin Layout. The Pin
Layout screen will be displayed.
2.
Prior to assigning the new output, identify a pin pair in the pin Layout table that is not
used (Signal = "None") or not needed. You can Delete it, but you may also simply
assign the new PPS Output as described below, thus overwriting the existing Input or
Output.
3.
Add a pin configuration by clicking the PLUS icon in the top-right corner. The Add Pin
window will display.
4.
Start with the Type Filter drop-down menu (second line in the window) and select a signal
type.
5.
From the Signal drop-down menu, select a signal.
38
CHAPTER 2 • VersaSync User Manual Rev. 6.0
2.6 Configuring Inputs/Outputs
