Squid Ink JetStream - Ink and Makeup Fluid Compartment; Rear Compartment Access

34 System Components
2006792 Rev B – 200228
Ink Compartment
The Ink Compartment can be accessed by turning the knob on the front of the JetStream
and pulling open the door. The ink and makeup fluid are placed inside this compartment, on
the left. Keep this compartment closed when printing.
Rear Compartment
The Rear Compartment can be accessed by unscrewing the Fasteners at the top and
bottom of the JetStream’s back door and pulling the door open. Keep this compartment
closed when printing.

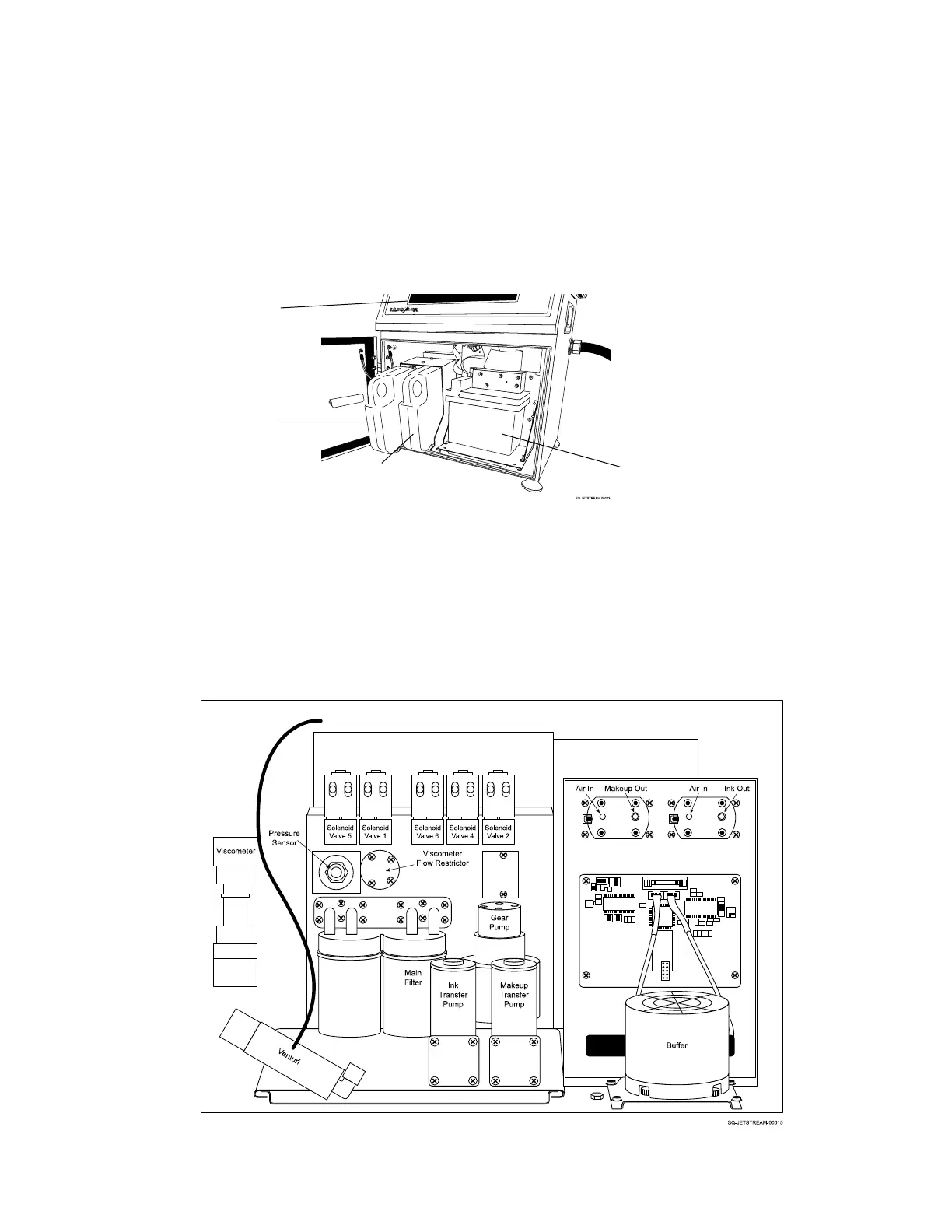

LCD Touchscreen
Ink Container
(not included)
Makeup Container
(not included)
Mixing Tank
Ink Compartment
Rear Compartment
