Installation and Setup 45
2006792 Rev B – 200228
Mounting the JetStream(s) to the Stand
The JetStream(s) can simply sit on the Stand shelves, or can be mounted to them.
Items needed to mount the JetStream(s) to the Stand include:
• M6 Nut (4)
• M6 Lock Washer (4)
• M6-12 Screw (4)
• M5 Washer (8)
• M5-25 Screw (8)
To mount the JetStream(s) to the Stand:
1. Screw the JetStream(s) onto the Stand:
a. Remove the screws that hold the feet onto the bottom of the JetStream(s).

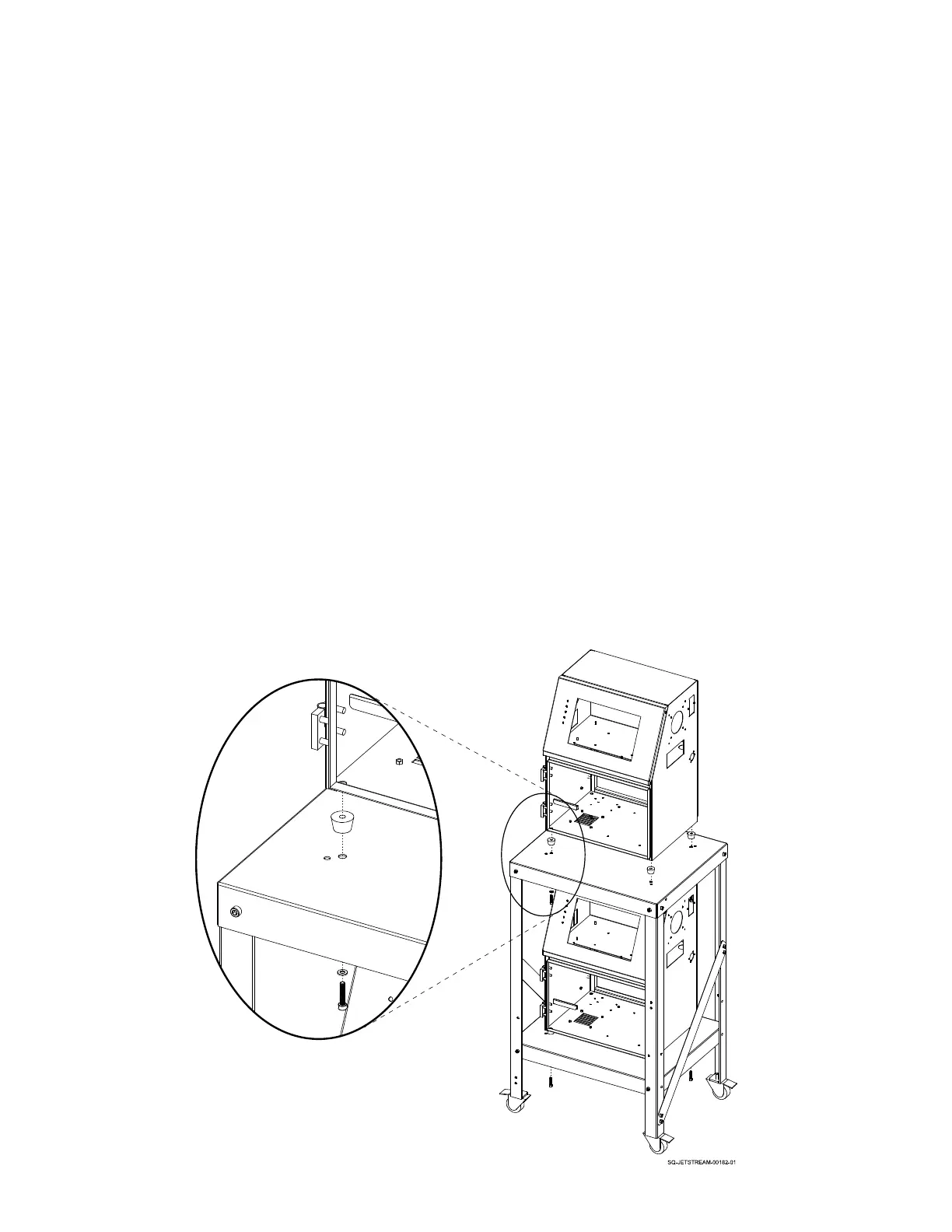

b. Screw an M5-25 Screw through an M5 Washer, up though the holes in the Stand
shelf, up through the feet of the JetStream(s), and through the hole/nut in each
corner in the floor of the JetStream(s).
c. Tighten the screws securely.
