User Interface 89
2006792 Rev B – 200228

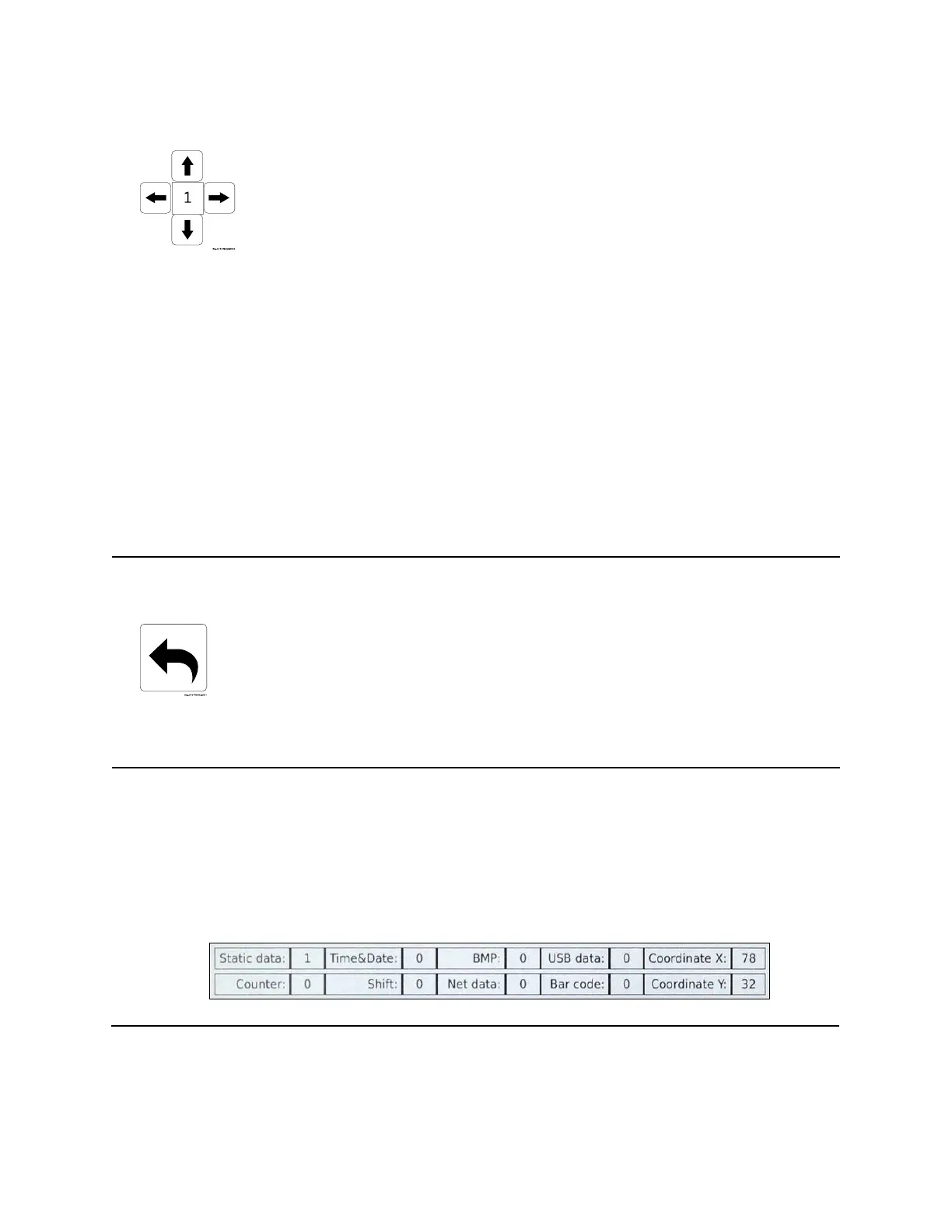

Block Move Buttons
Moves message blocks (text, graphics etc.) around inside the Message Area when arrows
are tapped.
1. In the Message Area, select a text object or graphic object.
2. In the square in the center of the Block Move Buttons, enter the number of dot
spaces that a single press of an arrow button should move the selected object. The
maximum number is 140. The default number of dot spaces per press is 1.
3. Select a Block Move arrow button to move the selected block the specified number
of dot spaces in that direction.
Objects can also be moved around the Message Area by directly selecting them and
dragging them by hand.
Return to Main Screen
Returns to the Main screen.
Message Information
The boxes at the bottom of the screen show information about the number and kind of
objects that are in the current message. “Coordinate X” and “Coordinate Y” are the
coordinates of the uppermost, leftmost dot in the selected element.
