Squid Ink JetStream - Alarm Interface Notes

54 Installation and Setup
2006792 Rev B – 200228
Alarm Interface Notes:
Mating Connector: 7-Pin Female (Part Number 2006915)
Pin #
Name
Description
1
24 V
Isolated 24 VDC voltage supply for alarm signals. 1 amp maximum
current available.
5
Fault
Low active Fault signal. Note 4.
6
Ready
Low active Ready signal. Note 4.
7
Warning
Low active Warning signal. Note 4.
Note 4: Maximum current available: 300 mA

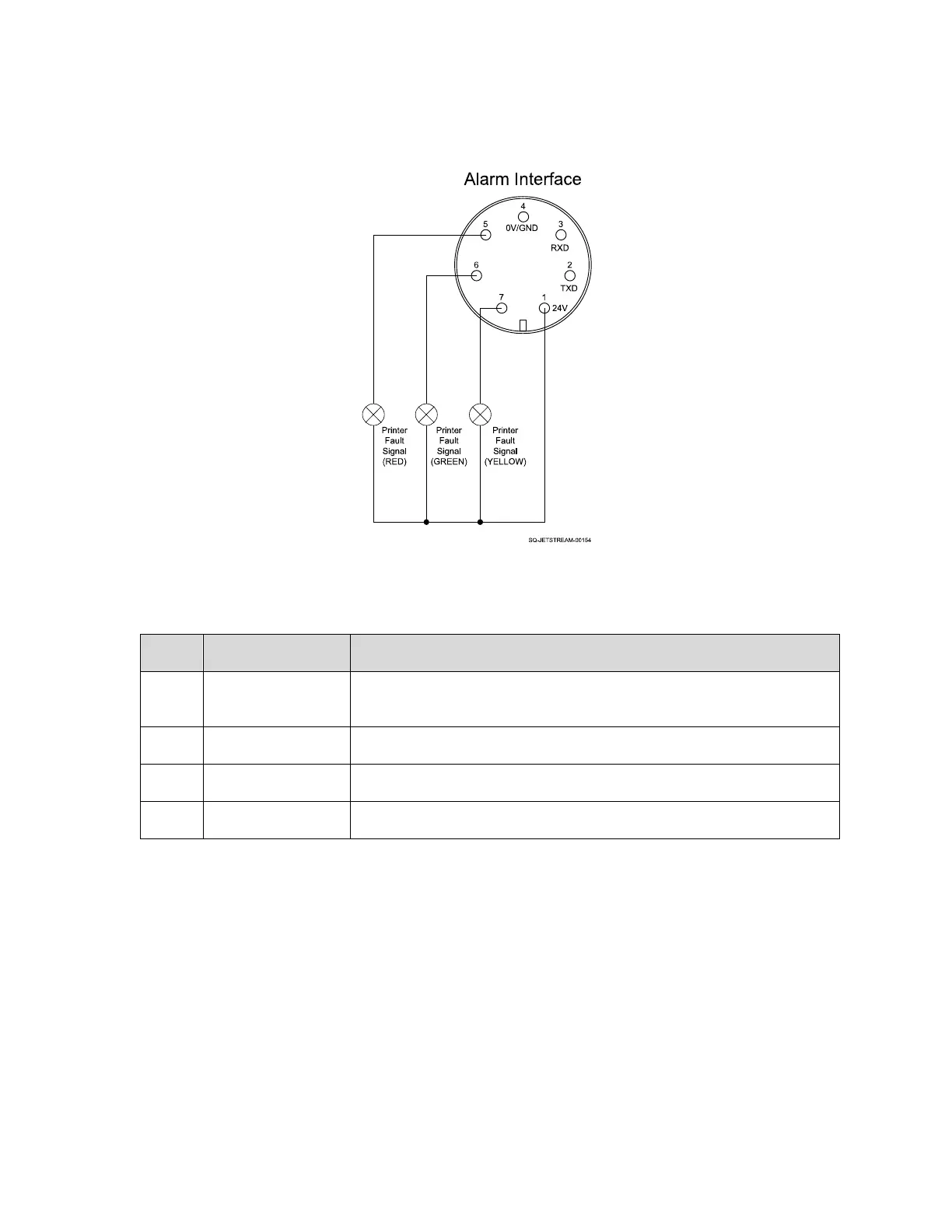

Alarm Connection Schematic
