Squid Ink JetStream - Sensor Interface Notes

50 Installation and Setup
2006792 Rev B – 200228

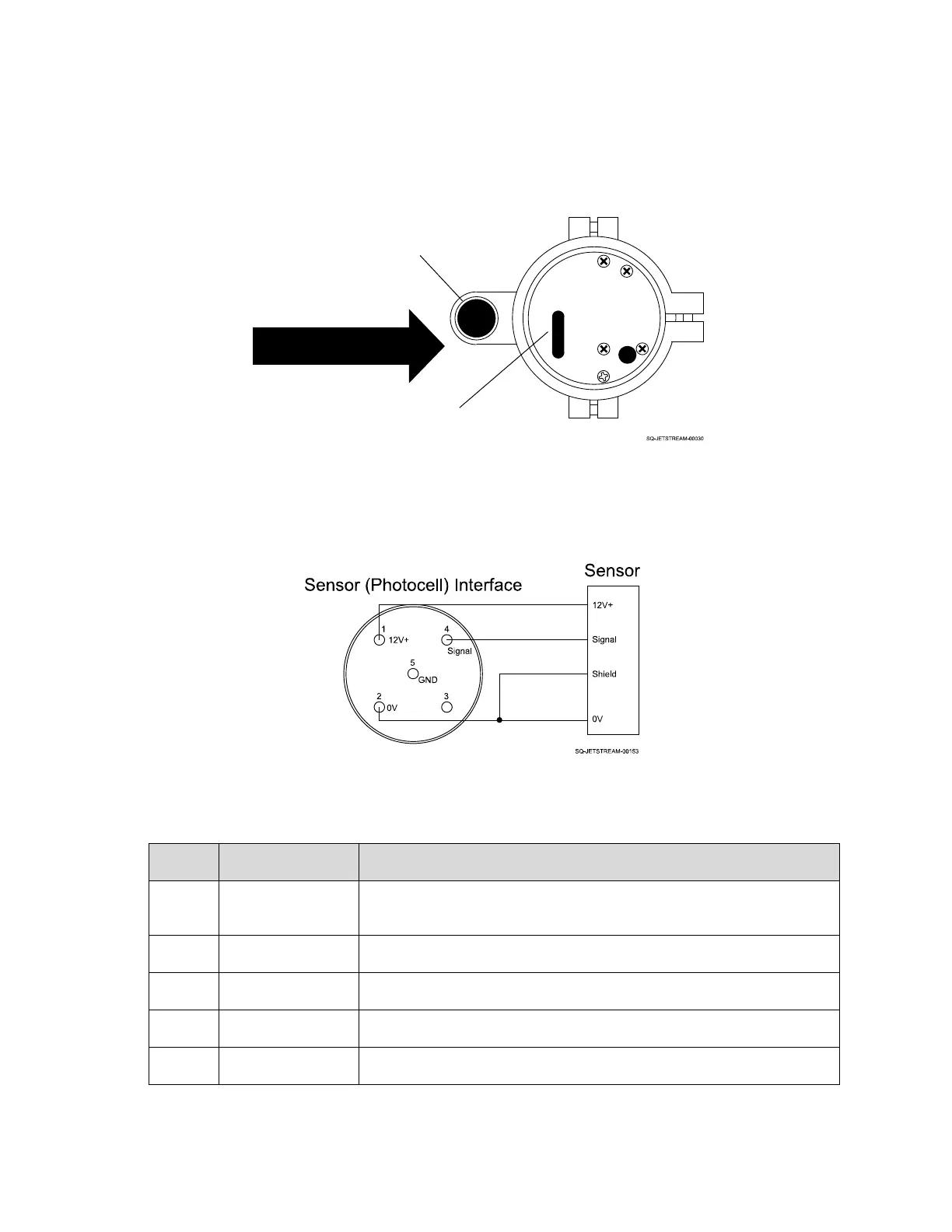

4. Position the Photocell and Printhead Orifice as shown below.
Sensor Interface Notes:
Mating Connector: 5-Pin Female (Part Number 2006914)
Pin #
Name
Description
1
12 V+
Isolated 12 VDC voltage supply for encoder circuit. 300 mA
maximum current available.
2
0 V
Ground signal for 12 V+ photocell supply.
3
NC
No connection
4
Signal
Photocell or trigger input signal. Note 3.
5
GND
Cable shield ground.
Note 3: Minimum “High” input voltage is 10 VDC and maximum “Low” input voltage is 2 VDC.
Photocell
Product Flow
Printhead
Orifice
Proper Orientation of Photocell to Printhead
Sensor (Photocell) Connection Schematic:
