Encoder Interface Notes:
Mating Connector: 7-Pin Female (Part Number 2006915)
Pin #
Name
Description
1
12 V+
Isolated 12 VDC voltage supply for encoder circuit. 300 mA
maximum current available.
2
0 V
Ground signal for 12 V+ encoder supply.
3
EN
Encoder Enable. Must be connected to pin #2 or ground.
4
A
Encoder input signal. Note 1.
5
Printing
Printing output. High when a message is being printed. Note 2.
6
24 V+
Isolated 24 VDC voltage supply for encoder circuit. 500 mA
maximum current available.
7
GND
Ground signal for 24 V+ encoder supply.
Note 1: Minimum “High” input voltage is 10 VDC and maximum “Low” input voltage is 2 VDC.
Note 2: Minimum “High” output voltage is 24V and maximum “Low” output voltage is 1 VDC.
Once the Encoder is connected to the JetStream, the JetStream will automatically read from it.
If information from the Encoder is not desired, the Encoder must to be physically disconnected
from the system.

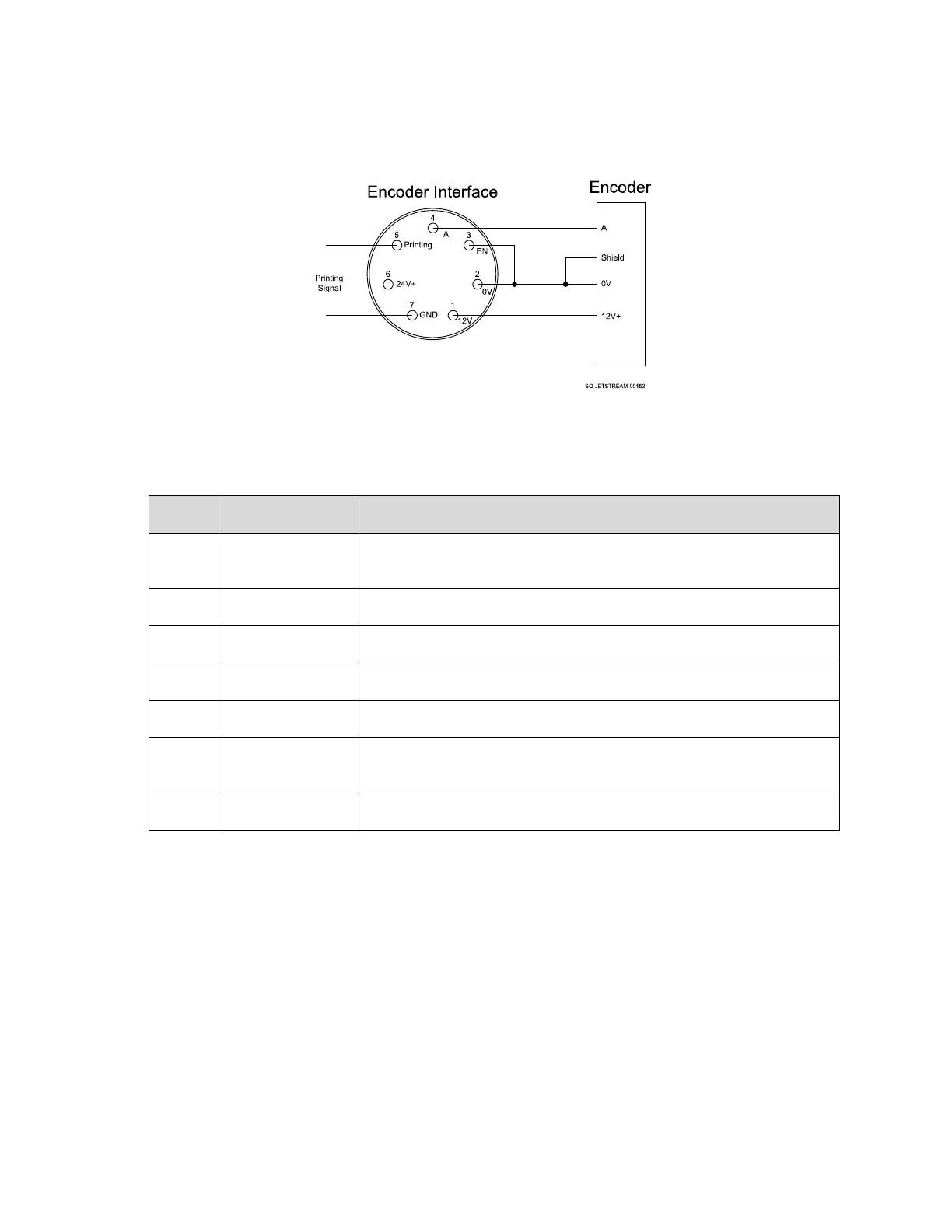

Encoder Connection Schematic
