44 Installation and Setup
2006792 Rev B – 200228

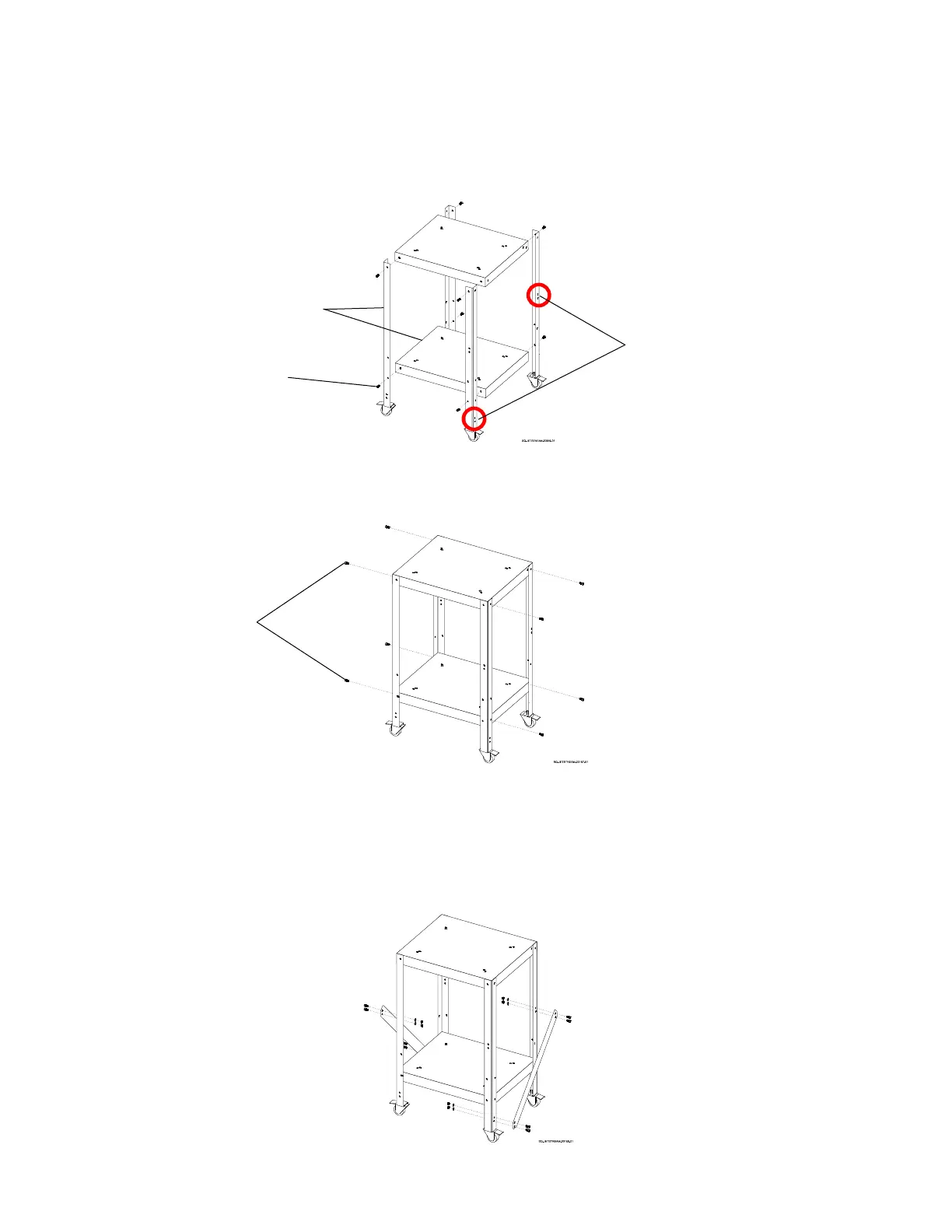

2. Connect the legs to the platforms:
a. Paying attention to the locations of the reinforcement bracket holes in the legs, use 8
of the M6-12 screws to attach the legs to the fronts and backs of the shelves.
3. Add the side screws:
a. Use 8 of the M6-12 screws to attach the sides of the legs to the sides of the shelves.
4. Add the reinforcement brackets:
a. Use 8 of the M6-12 screws to attach the reinforcement brackets to the sides of the
legs.
b. Use 8 of the M-6 Nuts and 8 of the M-6 Lock Washers to secure the reinforcement
bracket screws in place.
Reinforcement
Bracket Holes
