Tip Calibration Manual Tip Calibration
Page 137
© Copyright 2020 Stratasys. All rights reserved.
• If the Delta X and the Delta Y values are both within the range of -0.002 to
+0.002 in., the printer is calibrated and an adjustment is not required. The following
fi
gure shows an XY offset within tolerance, requiring no adjustments. Proceed to
step 3.

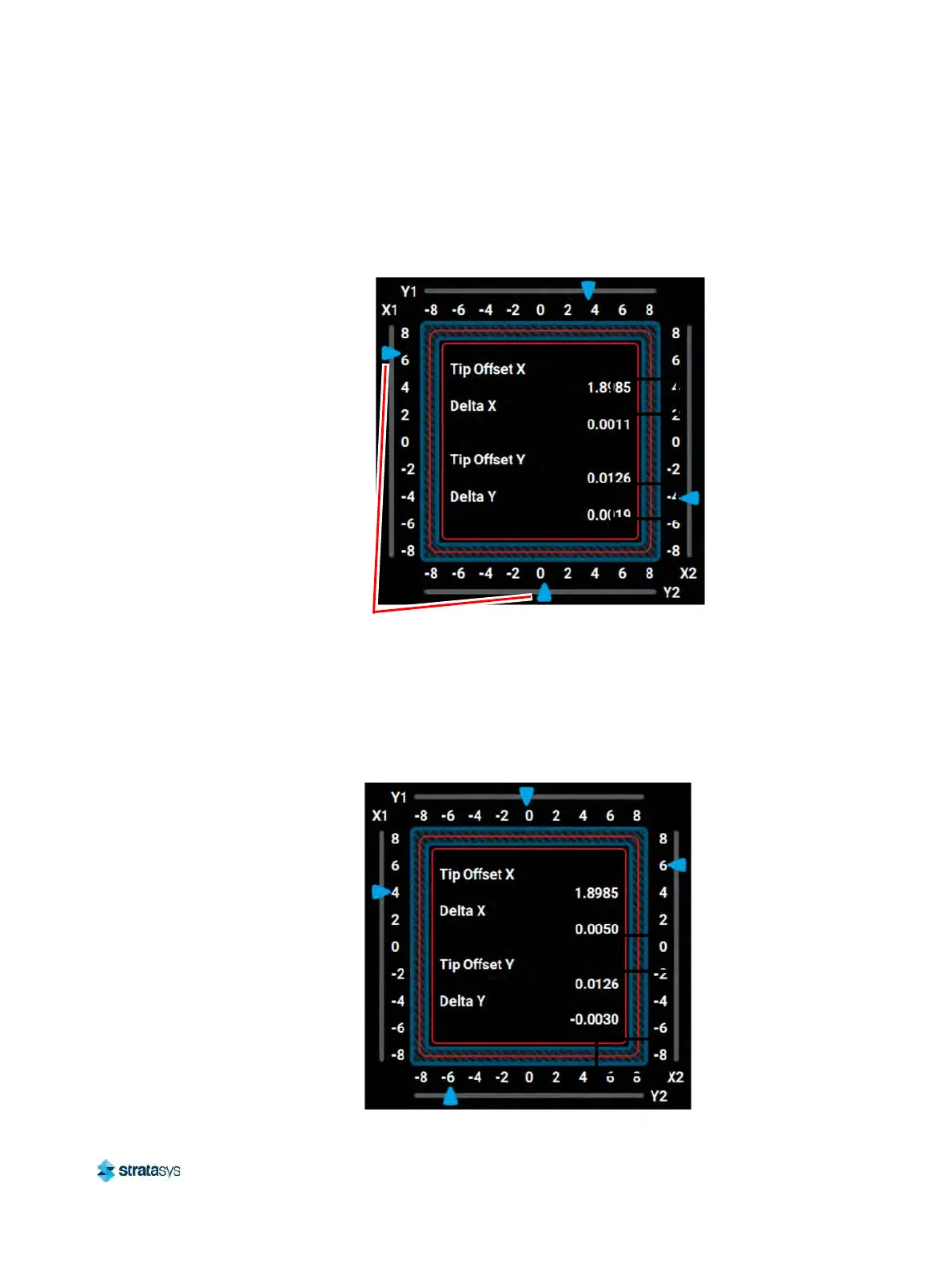

Figure 13: XY Offset - No Adjustment Required
• If either of the Delta X or Delta Y values are outside the range of -0.002 to
+
0.002 in., the printer requires an adjustment. The following figure shows the Delta
X
value of 0.0050 in. and the Delta Y value of -0.0030 in. are both outside of the
acceptable range.
Figure 14: XY Offset - Adjustment Required
Sliding scale
icons (4)
