As Needed Maintenance Cleaning the Oven Door glass Surfaces
Page 158
© Copyright 2020 Stratasys. All rights reserved.
4. Using a 2.5 mm hex wrench, remove the inside door panel mounting screws (11). See
Figure 40 (page 187).

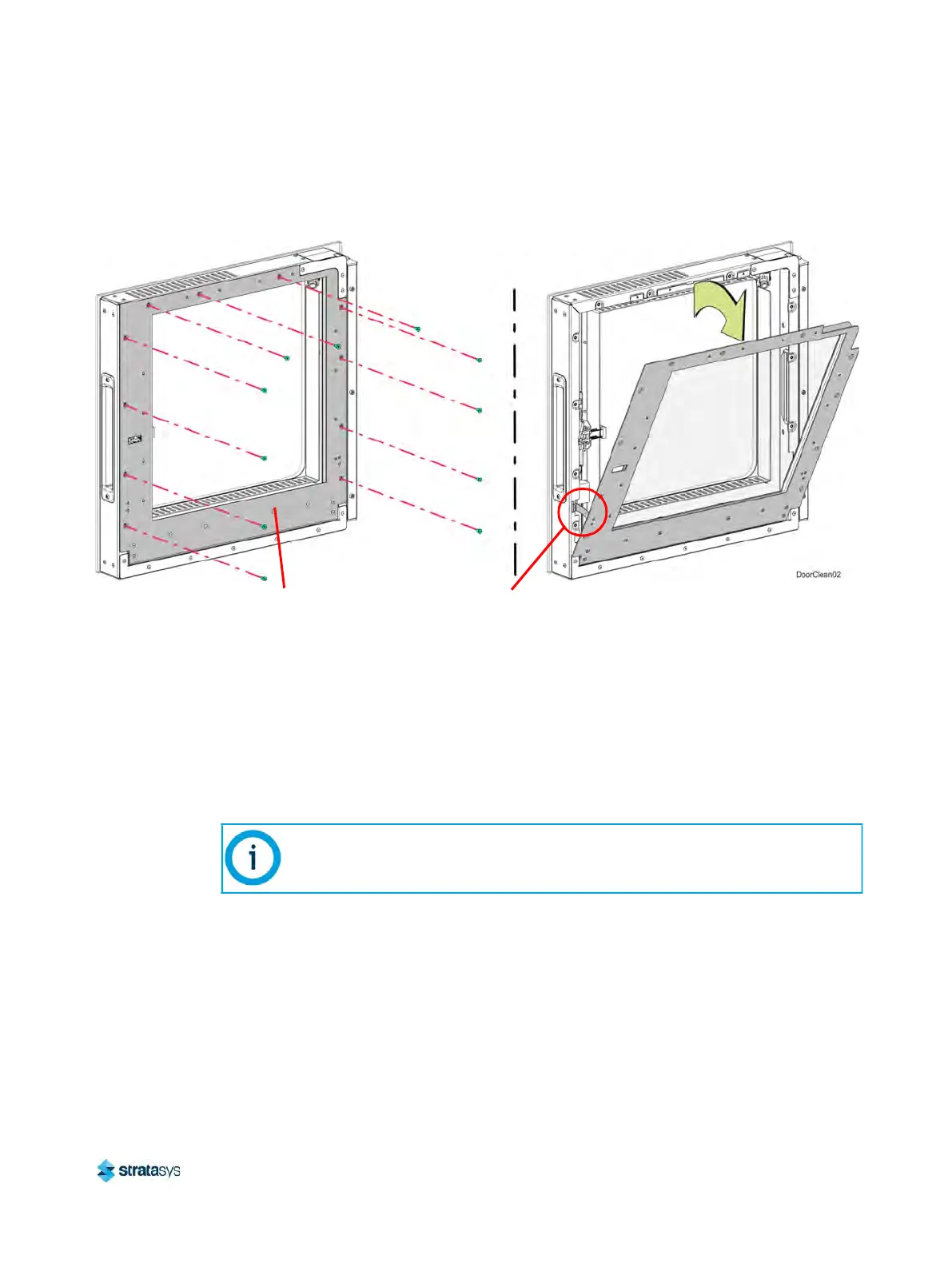

Figure 13: Inside door panel mounting screw locations
5. Pivot the inside door panel away from the door assembly. The pivot arms will prevent the
d
oor panel from fully separating. See Figure 13.
6. Clean the glass surfaces with a commercial glass cleaner.
Installing the Door Panel
1. Push the top of the door panel toward the door assembly.
2. Close the door panel and make sure that the panel and frame mounting holes are aligned.
3
. Using a 2.5 mm hex wrench, install the inside door panel mounting screws (11). See
F
igure 13.
4. Close the oven door.
Pivot arm (2)
Inside door panel
Do not over-tighten the inside door panel mounting screws.
