Customer Replaceable Units Oven Door Latch
Page 187
© Copyright 2020 Stratasys. All rights reserved.
4. Pivot and remove the inside door panel from the door assembly. Gently press on the pivot
arms to disengage them from the door assembly. See Figure 40.

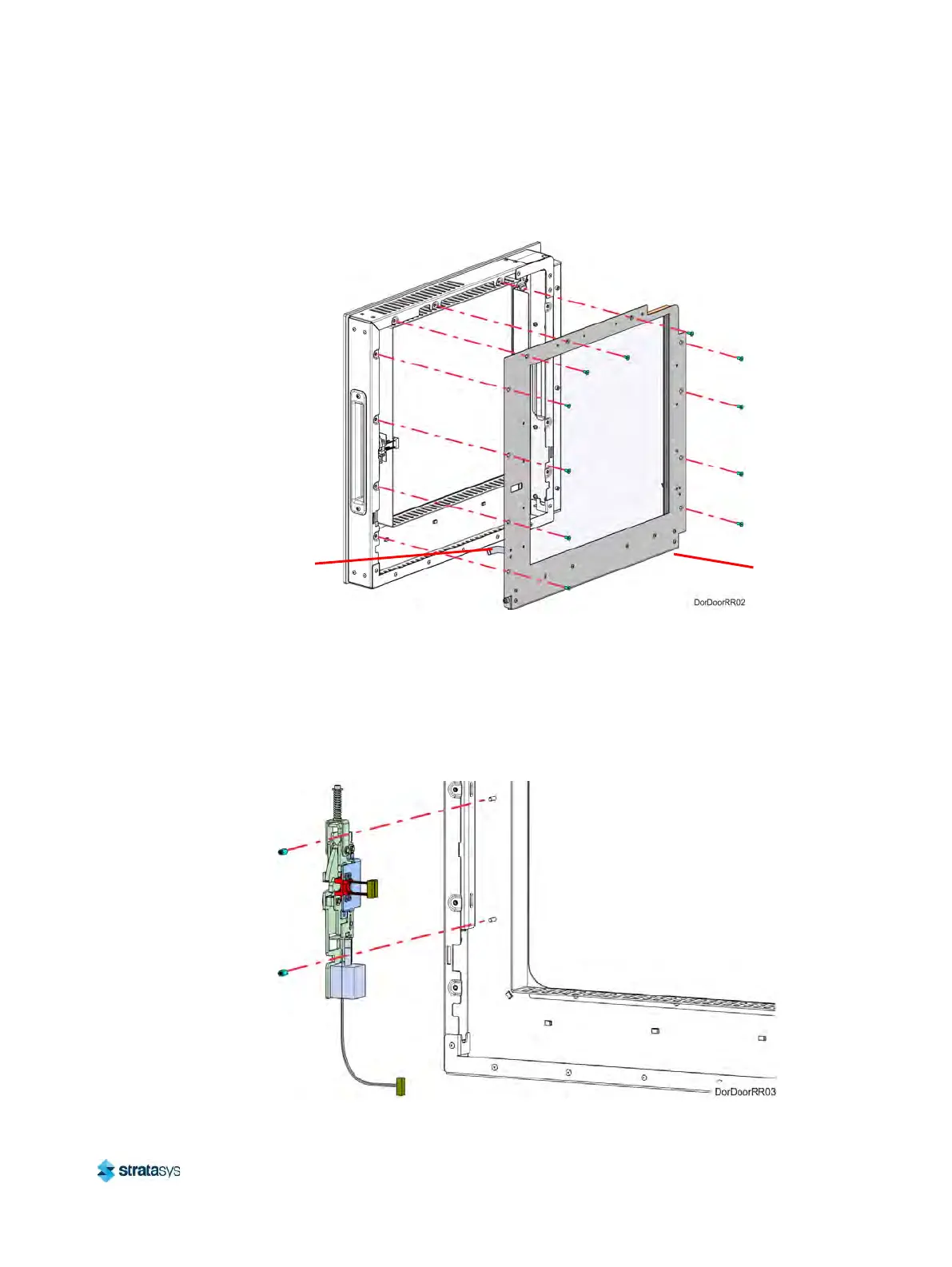

Figure 40: Inside door panel mounting screw locations
5. Disconnect the door latch assembly solenoid cable connector.
6
. Disconnect the door latch assembly sensor cable connectors (2).
7
. Using a 4 mm socket wrench, remove the door latch assembly mounting nuts (2). See
F
igure 41.
8. Remove the door latch assembly from the oven door. See F
igure 41.
Figure 41: Door latch assembly mounting nut locations
Pivot arm (2)
Inside
door panel
