Customer Replaceable Units Head Ribbon Cables
Page 171
© Copyright 2020 Stratasys. All rights reserved.

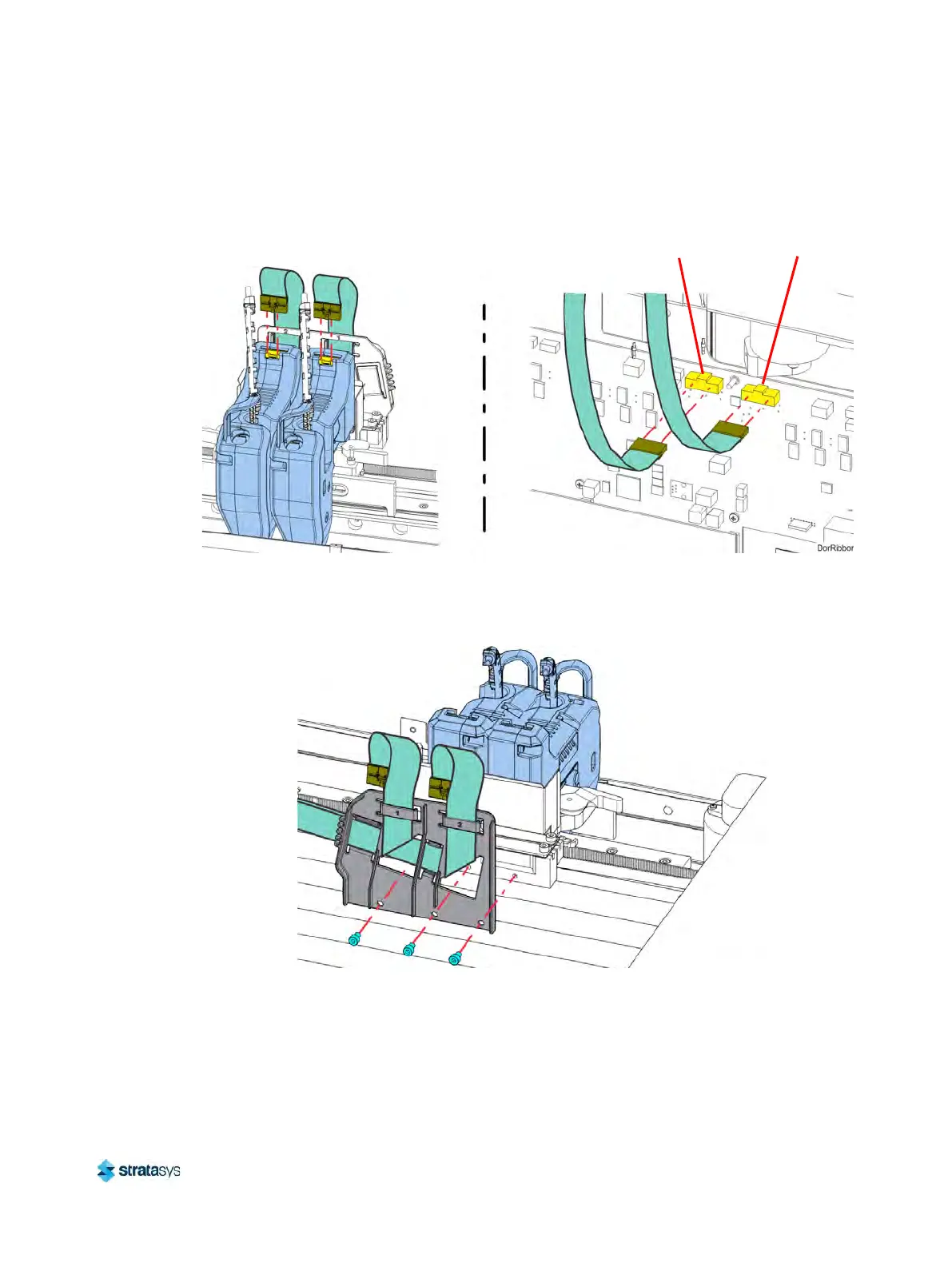

6. Disconnect the head ribbon cable connectors (2) from the I/O board (J6 and J7). See
Figure 24.
Figure 24: Head Ribbon Cable Connections
7. Using a 3 mm hex wrench, remove the front ribbon cable bracket mounting screws (3) on
t
he back of the toggle assembly. Retain the screws for re-installation. See Figure 25.
Figure 25: Front Ribbon Cable Bracket Mounting Screw Locations
Model Head J6
Support Head J7
To Next Page
