Elbow Cover
Brake Screw

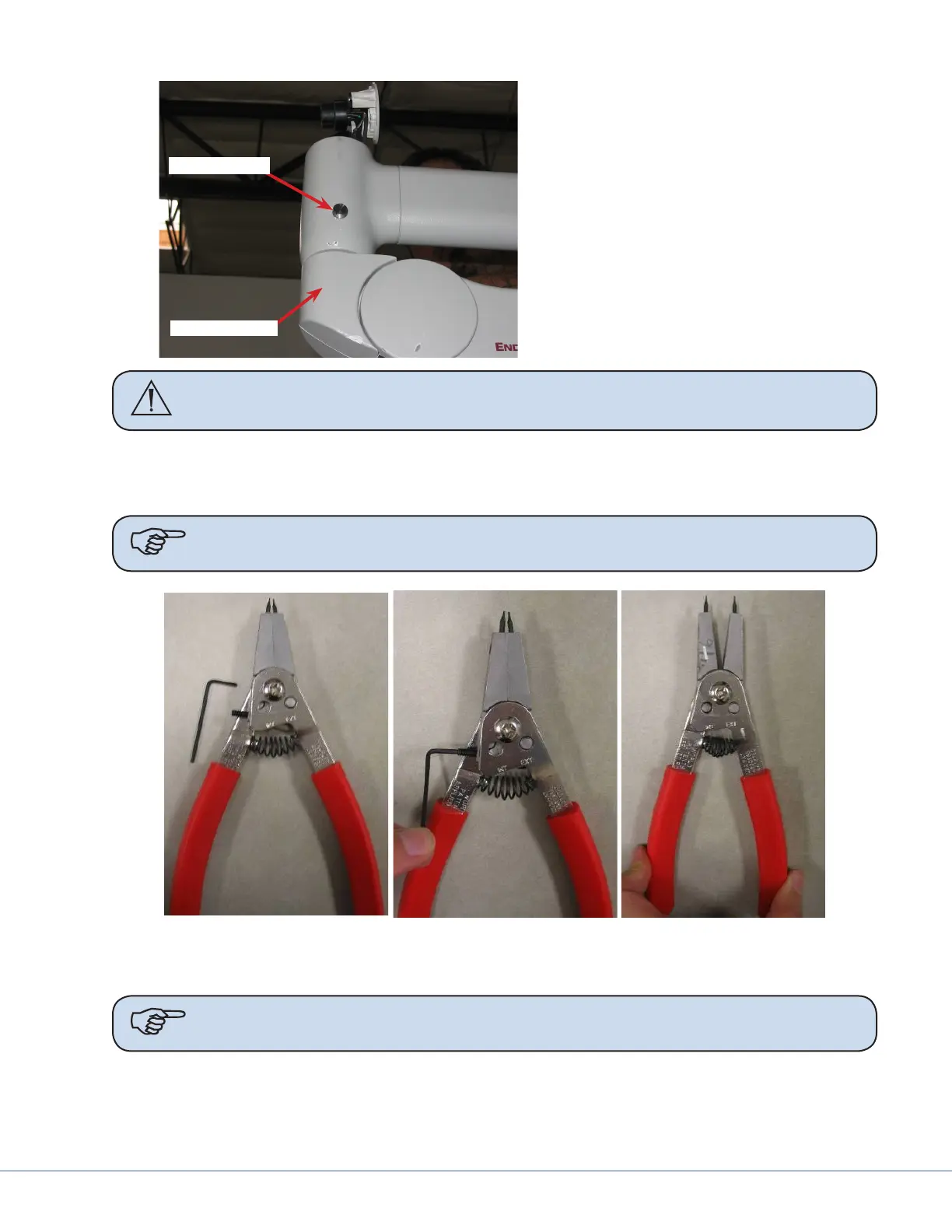

2. Loosen brake screws.
Warning Ensure the elbow covers are snapped together tightly. Failure to do so may
cause the elbow cover to fall into the sterile eld.
3. Prepare the snap ring pliers by locating the set screw on the side of the pliers. Use a hex key to
turn the screw clockwise. Continue turning the screw until the gap at the tips opens to 15mm
when fully extended.
Note It is important to set the stop at 15mm to prevent the retaining ring from being
overextended.
Setting the Snap Ring Pliers
4. Once adjusted, use snap ring pliers to remove the C-Clip and washer.
Note e new Spring Arm should have washers and a C-Clip. e C-Clip and rst
washer may require removal.
To Next Page
