Installing the Equipment
Instruction Manual: evolution 5000 E5710 and E5720 Encoder Page 2-13
ST.TM.E10074.1

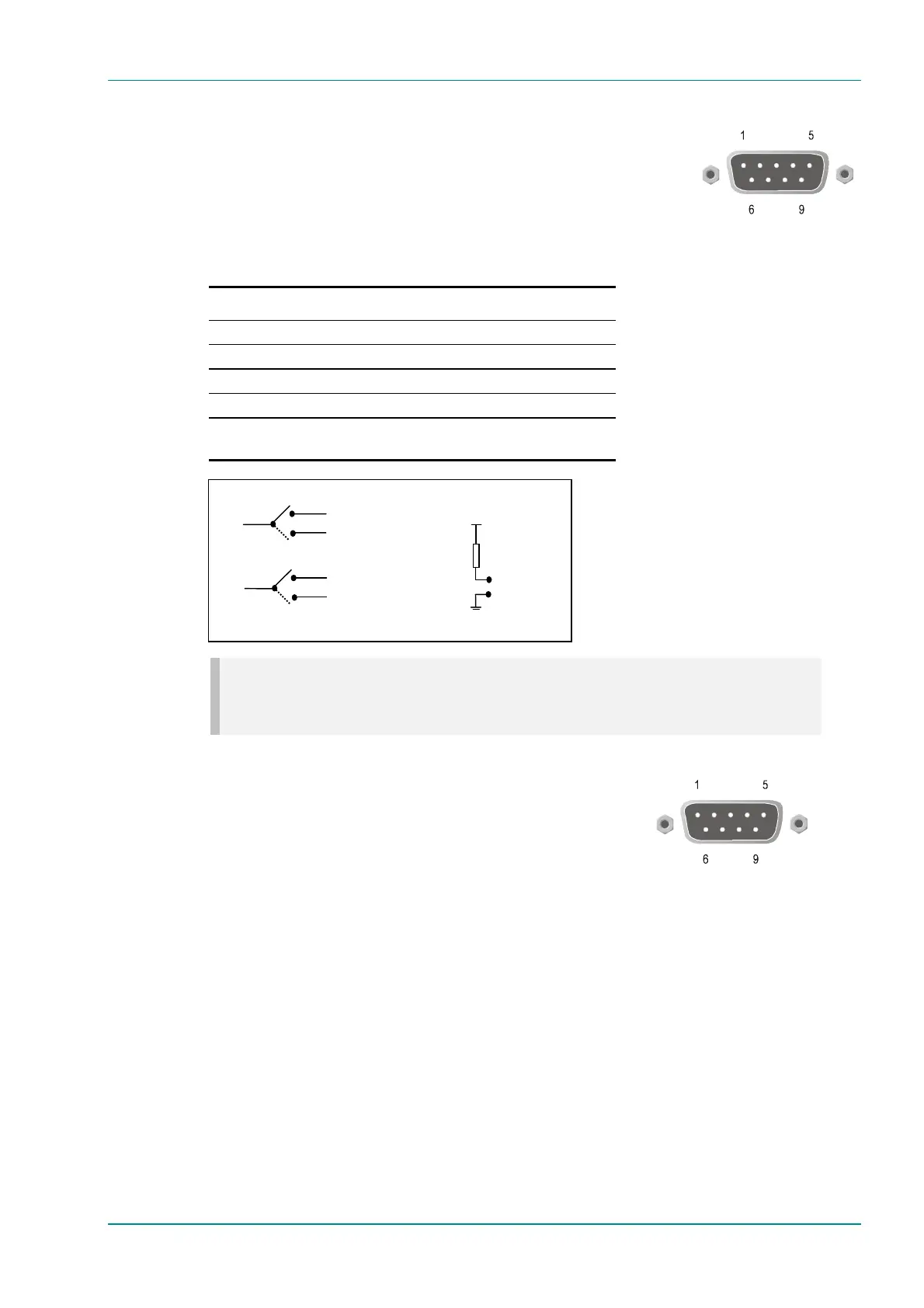

Alarm
If required, connect an external status monitoring
device to the ALARM connector.
A 9-way, D-type male connector provides an alarm
relay interface which can be used to send a signal to
remote equipment.
Table 2.8: Alarm Connector
Pin Signal Pin Signal
1 Ground 6 Fail (NO)
2 Fail (common) 7 Fail (NC)
3 Alarm (NO) 8 Alarm (common)
4 Alarm (+) (NC) 9 Reset 2 (internally grounded)
5 Reset 1 (internally pulled
to 3.3 V via 10 kW)
NOTE…
NC = Normally Closed, NO = Normally Open, and refers to the relay contacts. Refer to Annex B,
Section B.4.3, Alarm for details of the relay contact rating.
Remote Control
A 9-way, D-type male connector provides an
RS-232/RS-485 port for remote control of the
Encoder (see Serial Protocol Option on
page 4-23). This connector is wired as a DTE.
Alarm
Common
Fail (NC)
Fail (NO)
Alarm (NC)
Alarm (NO)
Fail
Common
Reset 1
Reset 2
3.3 V
10 kW
