TANDBERG evolution 5000 E5710 - Remux Option (M2;EOM2;REMUX); Overview; Assembly; Rear Panel

Options and Upgrades
Instruction Manual: evolution 5000 E5710 and E5720 Encoder Page 3-11
ST.TM.E10074.1
3.6 Remux Option (M2/EOM2/REMUX)
3.6.1 Overview
NOTE…
The M2/EOM2/REMUX Remux Option Module is supported by Build version 2.2 and later.
The Remux option module is capable of accepting up to three separate
transport streams via ASI connectors and is under the control of the host
Encoder. The functionality allows four transport streams to be multiplexed
together, permitting Encoders to be applied to Multiple Channels Per
Carrier (MCPC) applications. For a specification of this interface see
Annex B, Technical Specification.
3.6.2 Assembly
Rear Panel
The Remux option module comprises assembly S12449 and Card S10655.
See Table 3.1 for the slots that it can be installed in.
CAUTION…
When remultiplexing, be aware that both PIDs and Service Names will be remapped according to the
Host Encoder input used.

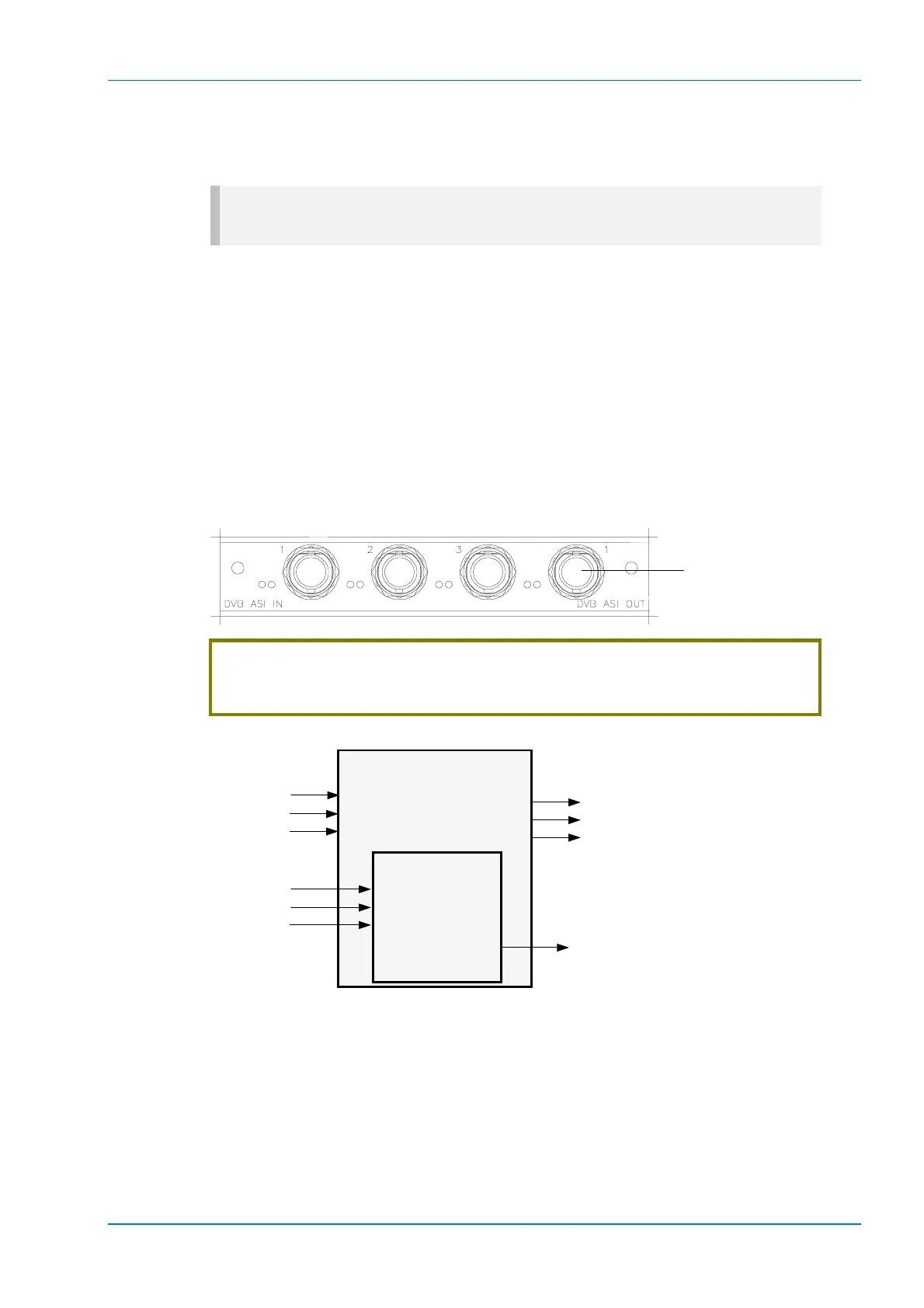

Figure 3.3: Remux Option (M2/EOM2/REMUX)
DVB-ASI OUT is
disabled.
Encoder
[Host]
Remux Option
DVB ASI IN 1
DVB ASI IN 2
DVB ASI IN 3
DVB ASI OUT 1
Out
p
ut is disabled
Input Transport Stream 1
Input Transport Stream 2
In
p
ut Trans
p
ort Stream 3
Output Transport Stream ü
Output Transport Stream ý
Out
p
ut Trans
p
ort Stream þ
ASI OUT 1
ASI OUT 2
A
SI OUT 3
Analogue Composite Video
Serial Digital Interface
Audio Input
COMP VIDEO
SDI IN
AUDIO IN
The output is a multiplex of the
three input transport streams of
the Remux option and the
transport stream produced by the
host Encoder.
