G10 Hardware Maintenance Guide 7.13.2 109
5
Maintenance Guidelines
Rev. 002-140228
Removing or Resetting the IIC100 or IIC200
Perform the following to reset or remove the IIC.
Step Action
1. Rotate the IIC’s right ejector handle outward as shown in (Figure 5.22).

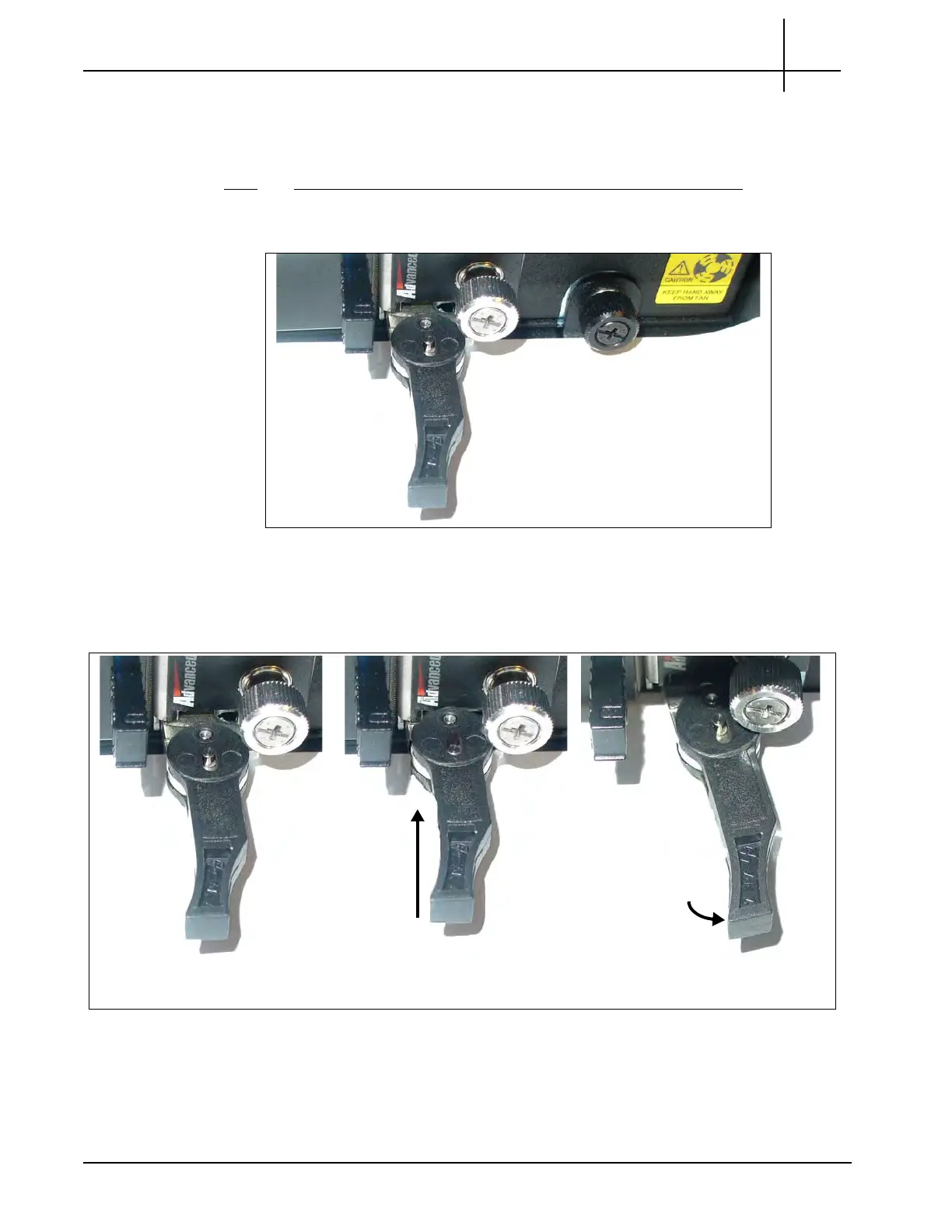

Figure 5.22 - IIC Right Ejector Handle
2. Push and hold the eje
ctor handle in the forward position and then rotate it
outward slightly until it cannot rotate any farther (Figure 5.23). The blue Hot
Swap LED starts to blink, indicating that the blade is shutting down the OS.
Figure 5.23 - IIC Right Ejector Handle Hot Swap Positioning
Hold Ejector Handle in
Forward Position
Swing Handle Outward
Slightly
Ejector Handle
Start Position
