Maintenance Guidelines
Rev. 002-140228
3. Wait until the IIC Hot Swap LED is solid blue (Figure 5.24). This indicates the
card’s OS has powered down completely.
The LPC AMC and the FPC AMC Hot Swap LEDs also blink and turn solid blue. Do NOT
remove the AMCs individually. Only the entire IIC100 or IIC200 should be removed or
replaced.

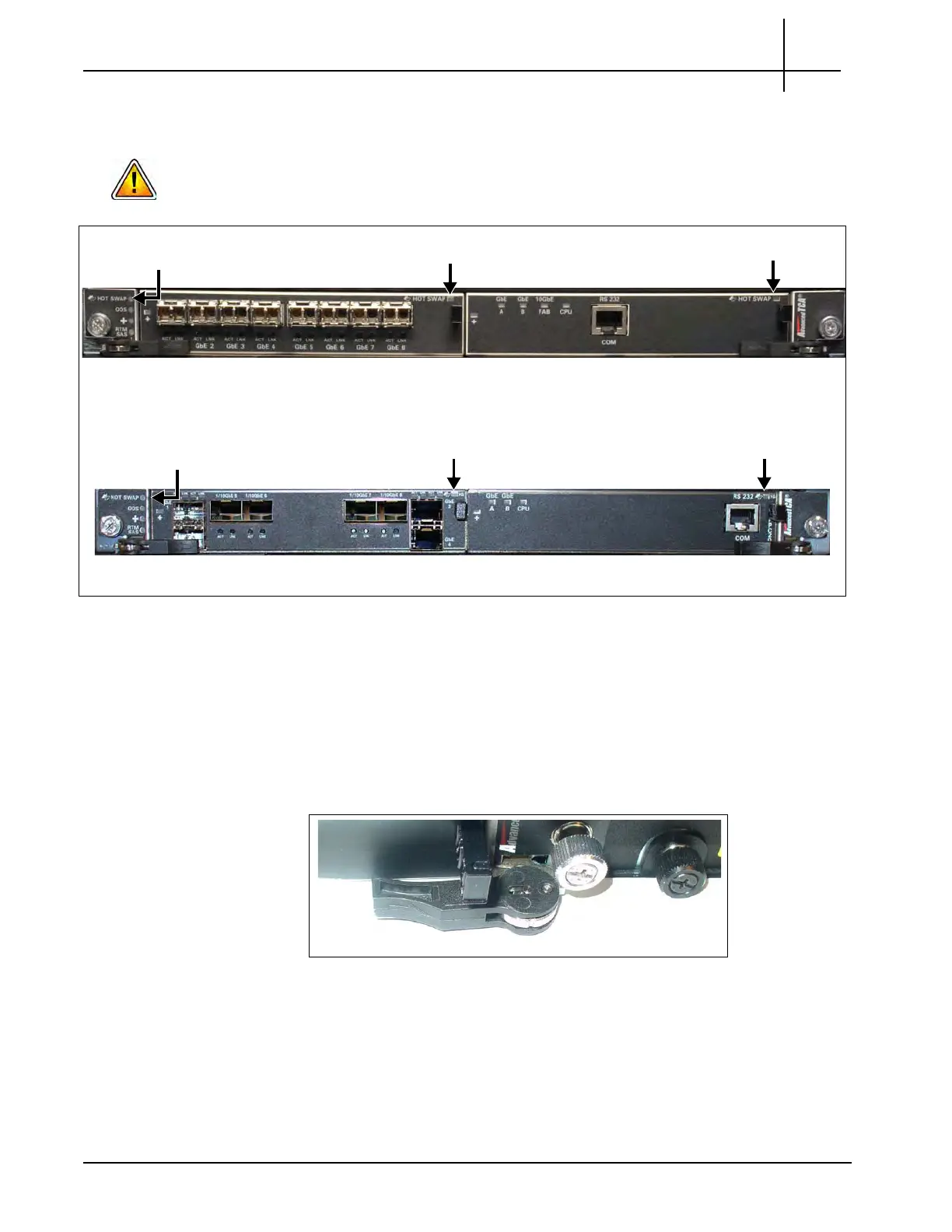

Figure 5.24 - G10 IIC Hot Swap LEDs
4. You can perform one of the following:
 Remove the IIC100 or IIC200. To reinstall the blade or install a new blade,
refer to Installing the IIC100 or IIC200.
 Push and hold the ejector handle in the forward position and rotate it inward
until flush with the front of the chassis (Figure 5.25). The IIC Hot Swap LED
turns off.
Figure 5.25 - G10 IIC Ejector Handle Closed
FPC100 AMC HOT
SWAP LED
IIC100 HOT SWAP LED
LPC100 AMC HOT SWAP LED
IIC200
IIC100
FPC200 AMC HOT
SWAP LED
IIC200 HOT SWAP LED
LPC200 AMC HOT SWAP LED
