G10 Hardware Maintenance Guide 7.13.2 57
3
Blades and RTMs
Rev. 002-140228
IAP320 Connectors

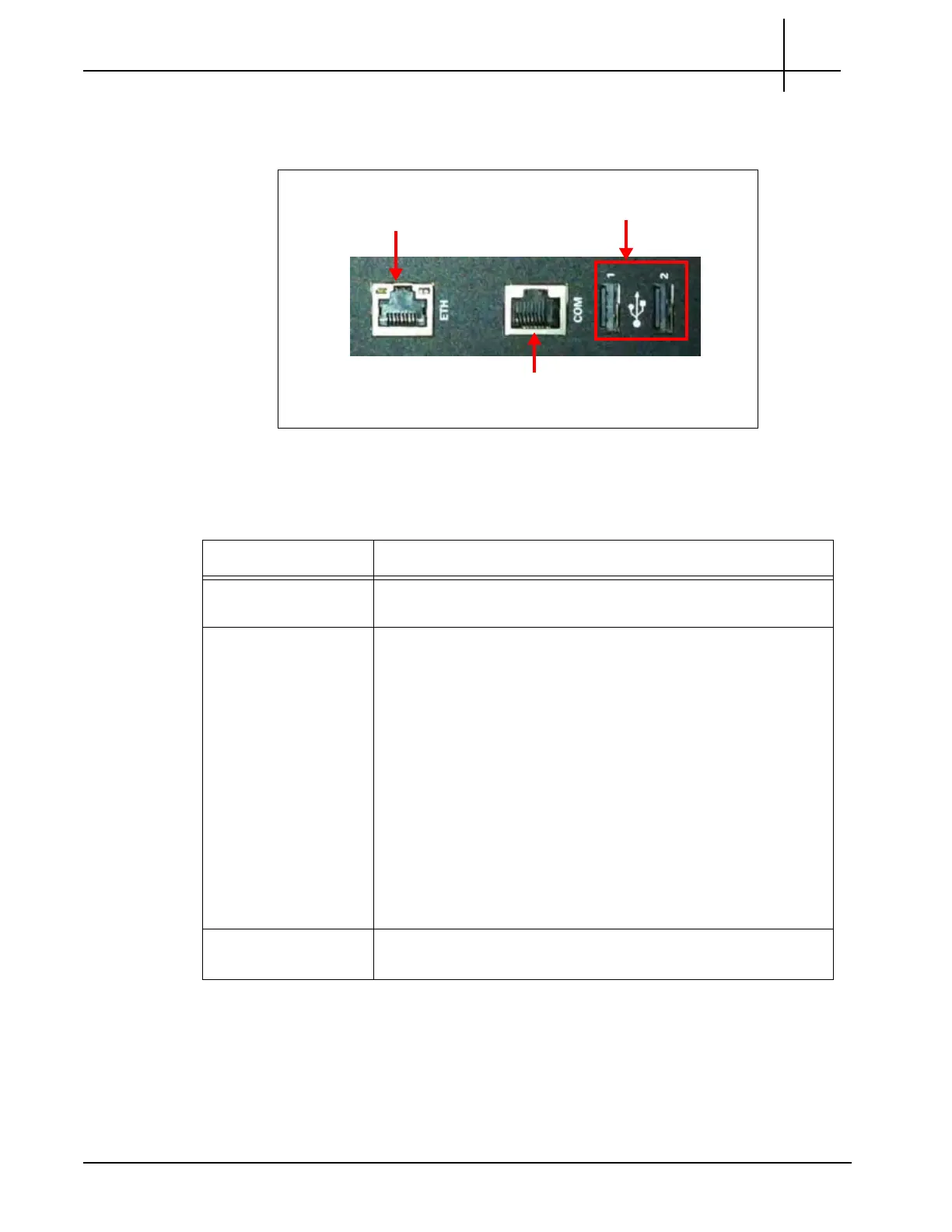

Figure 3.26 displays the IAP320 connectors.
Figure 3.26 - IAP320 Connectors
Table 3.17 provides descriptions of the IAP320 connectors.
Table 3.17 - IAP320 Connectors
Connector Description
ETH Connector Used during initial probe configuration; not used during normal
pr
ob
e operation.
Serial Console Port Enables an RJ-45 cable to connect to an external computer to
di
splay and interact with the CPM’s software. In order to
communicate with the CPM, the terminal emulator on the
external computer must match the default settings for the CPM
serial port:
28800 bps
no parity
8 data bits
1 stop bit
no flow control
For best display results, the terminal should be set to 80
columns by 25 lines.
USB 1–2 These connectors are a standard USB 2.0 used for service and
m
a
intenance.
ETH
USB Ports
Serial Console Port
