G10 Hardware Maintenance Guide 7.13.2 68
3
Blades and RTMs
Rev. 002-140228
PRM100 LEDs
The PRM100 indicators provide status and error information. The LED indicators are
loca
ted on the face plate of the board (see Figure 3.37).

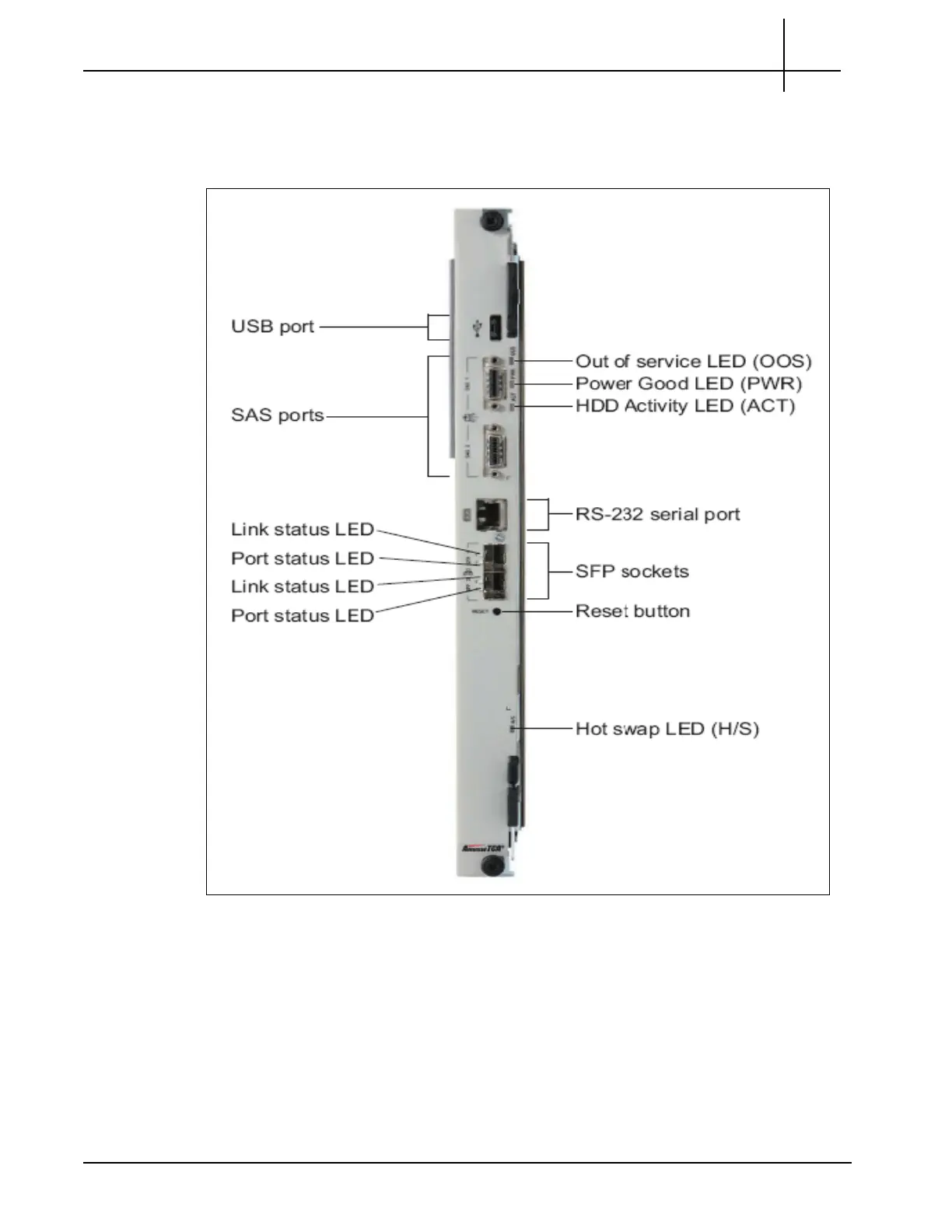

Figure 3.37 - PRM100 LEDs
