Chapter 10
207
UM10350_PCNC770_Manual_0916A
Troubleshooting
The spindle is in a ready-to-run condion when the control power is on, the Spindle Lockout Key is
on, and the spindle door is closed.
When the Spindle Mode Switch is set to Manual, the drive is turned on and o with the Spindle Start
Switch and Spindle Stop Switch. The spindle speed is set with the Spindle Speed Dial.
When the Spindle Mode Switch is set to Auto, the start, stop and spindle speed is controlled through
the PathPilot interface.
Find the relevant poron of the electrical schemac highlighted in Figure 10.18 and Figure 10.19.
For more detail, view electrical schemac inside back cover.

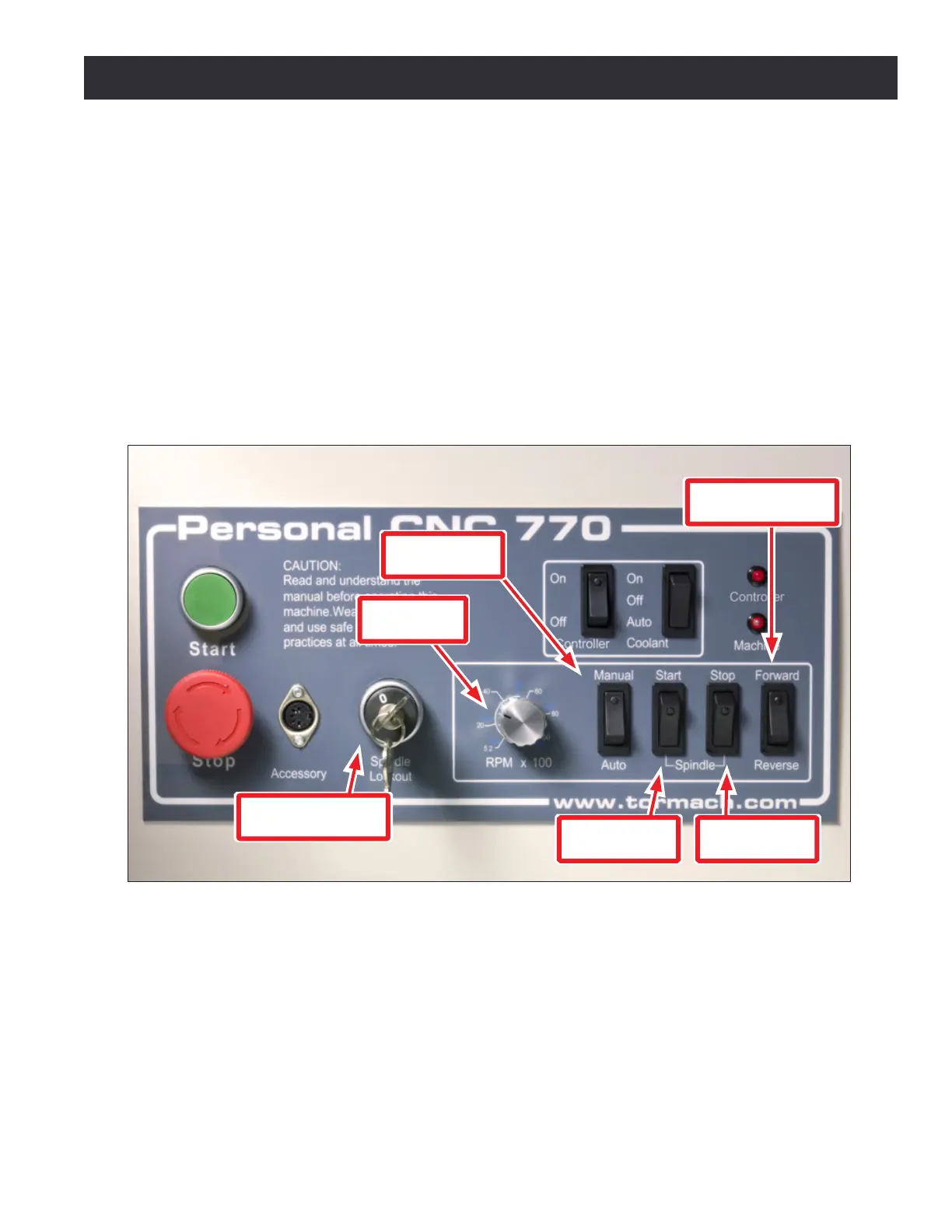

Figure 10.17
Spindle Start
Switch
Spindle Stop
Switch
Spindle Lockout
Key
Spindle Mode
Switch
Forward/Reverse
Switch
Spindle
Speed Dial
