Installation
3.3.5.4 Moving Kit (PCNC 770 Only)
The PCNC 770 can be temporarily disassembled using the Moving Kit (PN 31333). This allows the
machine to be broken down into several smaller subcomponents. Refer to documentaon that ships
with Moving Kit for more informaon on use.
WARNING! Crush Hazard: Keep hands and body parts clear when lowering mill onto stand. Failure
to do so could result in serious injury or death.
3.3.5.5 Lowering Mill onto Stand
Posion mill above stand and align one mill casng hole with one stand base hole; insert stud and
thread into place. Repeat process for remaining three holes and loosely screw on four washers/nuts.
When mill is completely supported by stand, remove liing tackle and ghten nuts to approximately
10 -lbs of torque.

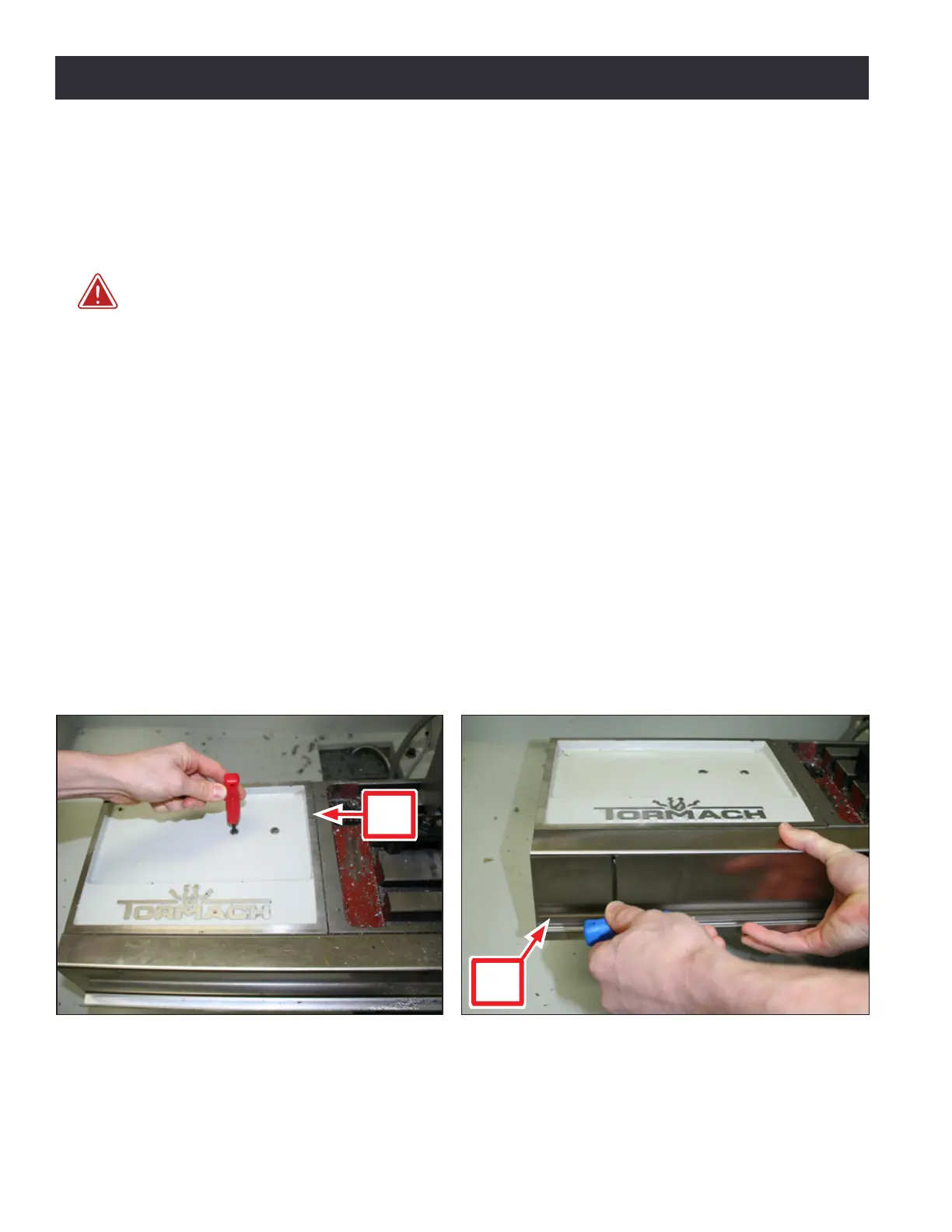

3.3.6 Install Tool Tray (PCNC 1100 only)
Install the cast iron Tool Tray using provided screws to aach it to le side of machine table (see
Figure 3.7).
3.3.7 Install Drip Tray
Unstrap stainless steel Drip Tray from pallet; use provided screws to install (see Figure 3.8).
Figure 3.7
Tool
Tr ay
Figure 3.8
Drip
Tr ay
