tornos DECO 7/10 - Programming Sample

OPTIONS & ALLIED TOOLING − DECO 7/10 − DECO 7a/10a − DECO 7e/10e
300236 en − 02/07 Chap. 14.7.1 /8
14.7 PROGRAMMING SAMPLE
− Pickoff spindle speed: 50 rpm
− NSK spindle speed: 30000 rpm
− Thread: M2 x 0.4 mm

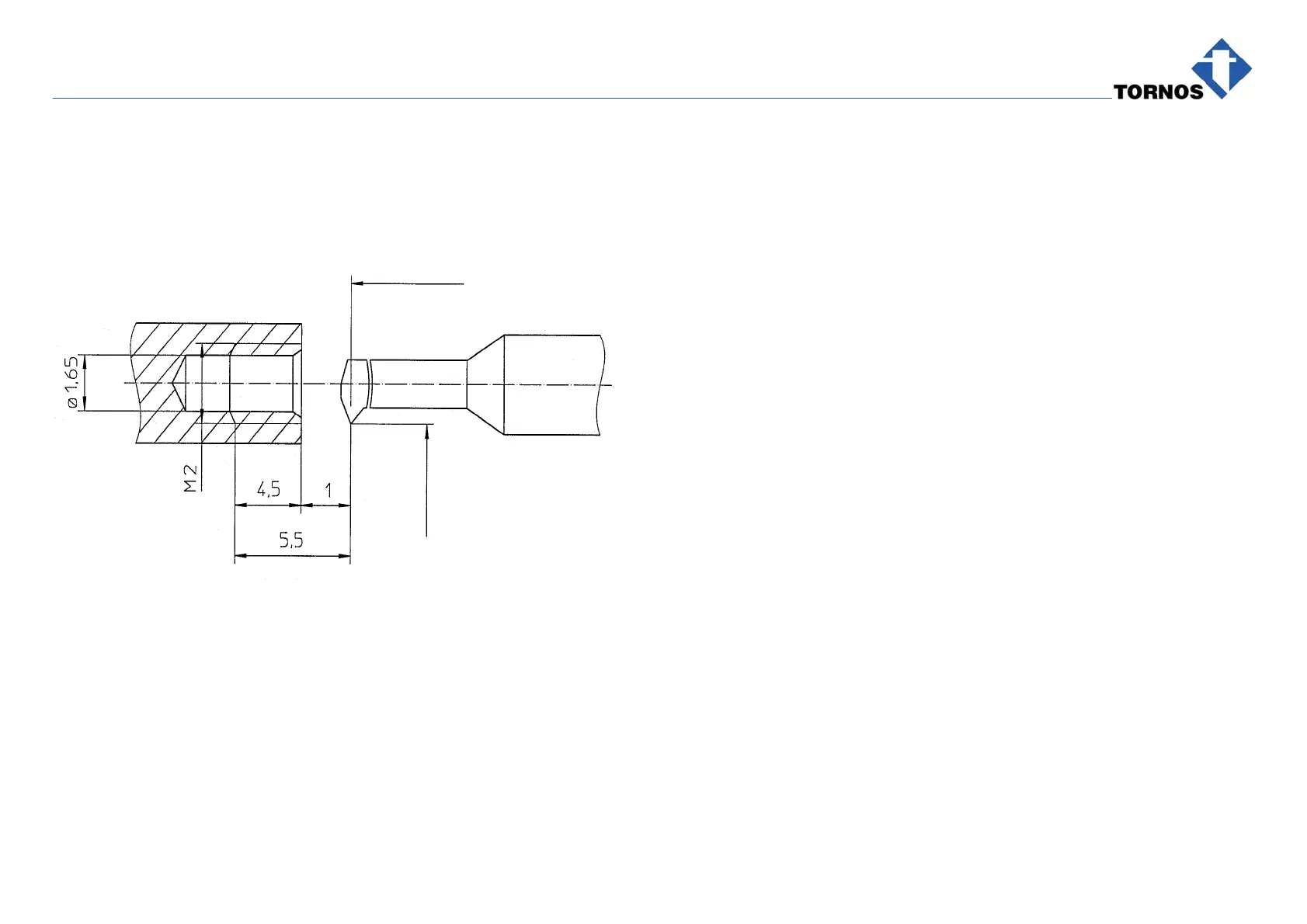

Part
T44-tool geometry
1306
Z4 = 25
X4 = − 1.6.
14.7.1 Example: Programming C-Axis
− M892 (NSK spindle ON)
− M403 S0 (random)
− G1 X4 = 2 G100
− G1 Z4 = 1 G100
−M1
− M498 (S4 in C-axis)
− G4 X0.5
− G1 C4 = 4950 Z4=−4.5 F18000 G94 (Whirling)
− G1 X4 = 1.5 G100
− G1 Z4 = 20 G100
− M893 (NSK spindle OFF)
− M499 (S4 C-axis)
