10.8 SINGLE-ACTING PISTON CONTROL MONITORED BY TWO SENSORS (AN EXAMPLE)
Assumptions:
Piston with advance control.
Sensor for piston in forward position.
Sensor for piston in backward position.
The following requirements to be met:
Piston-forward sensing to be 1 before piston return.
If not, the program stops instantaneously by selecting an Alarm Class 3.
Piston-backward sensing to be 1 before machining is continued.
If not, the program stops instantaneously by selecting an Alarm Class 3.

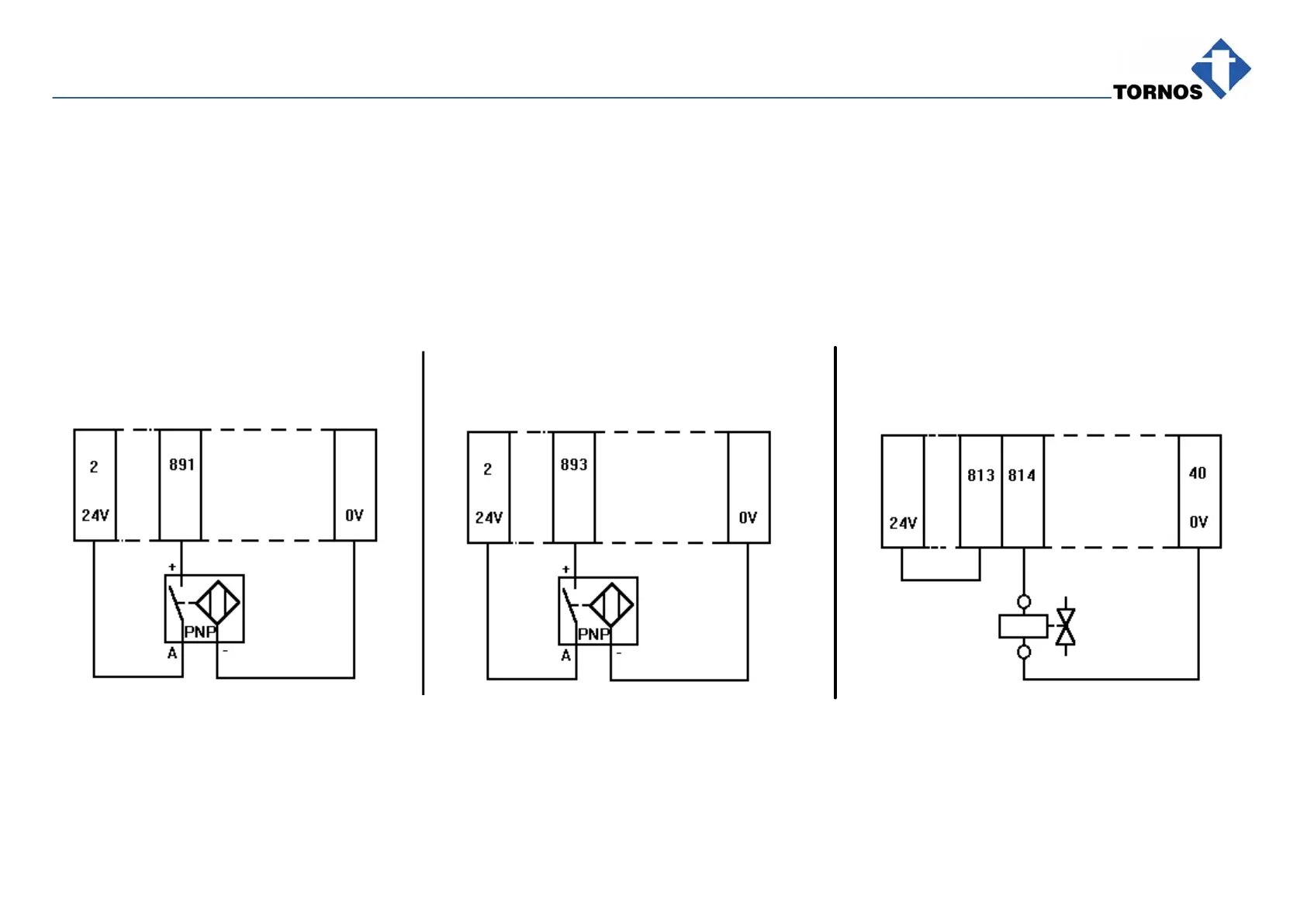

Terminal
Box
XT 800
Terminal
Box
XT 800
PISTON-FORWARD SENSOR,
INPUT I on OPTIONAL SOCKET 1
PISTON-BACKWARD SENSOR,
INPUT I on OPTIONAL SOCKET 2
40 40
PISTON-ADVANCE ELECTRO-VALVE
Terminal
Box
XT 800
2
