10.8.1Configurating Optional Socket 1 Outside Program Loop
M800 P1=1750 P2=1753 P3=1757:
1750 reverses input signal (enabled at 0).
1753 disables unused Input 2.
1757 selects an Alarm Class 3.
10.8.2Configurating Optional Socket 2 Outside Program Loop
M800 P1=1770 P2=1773 P3=1777:
1770 reverses input signal (enabled at 0).
1773 disables unused Input 2.
1777 selects an Alarm Class 3.
10.8.3Enable Sensor Check Inside Program Loop
M815: enables check start by piston-forward input.
M811 D811=1000: enables piston advance control.
M812: disables piston advance control (piston return).
G04 X2: 2 s dwell (acc. to the time necessary for piston to return)
M825: enables check start by piston-backward input.
If Input 1 on Socket 1 is 0 and M815 enabled,
Alarm 1013: ALARM CLASS 3 OPTION SOCKET is displayed
and the operator must assume that the piston advance has not been properly
completed.
If Input 1 on Socket 2 is 0 and M825 enabled,
Alarm 1013: ALARM CLASS 3 OPTION SOCKET is displayed
and the operator must assume that the piston return has not been properly
completed.

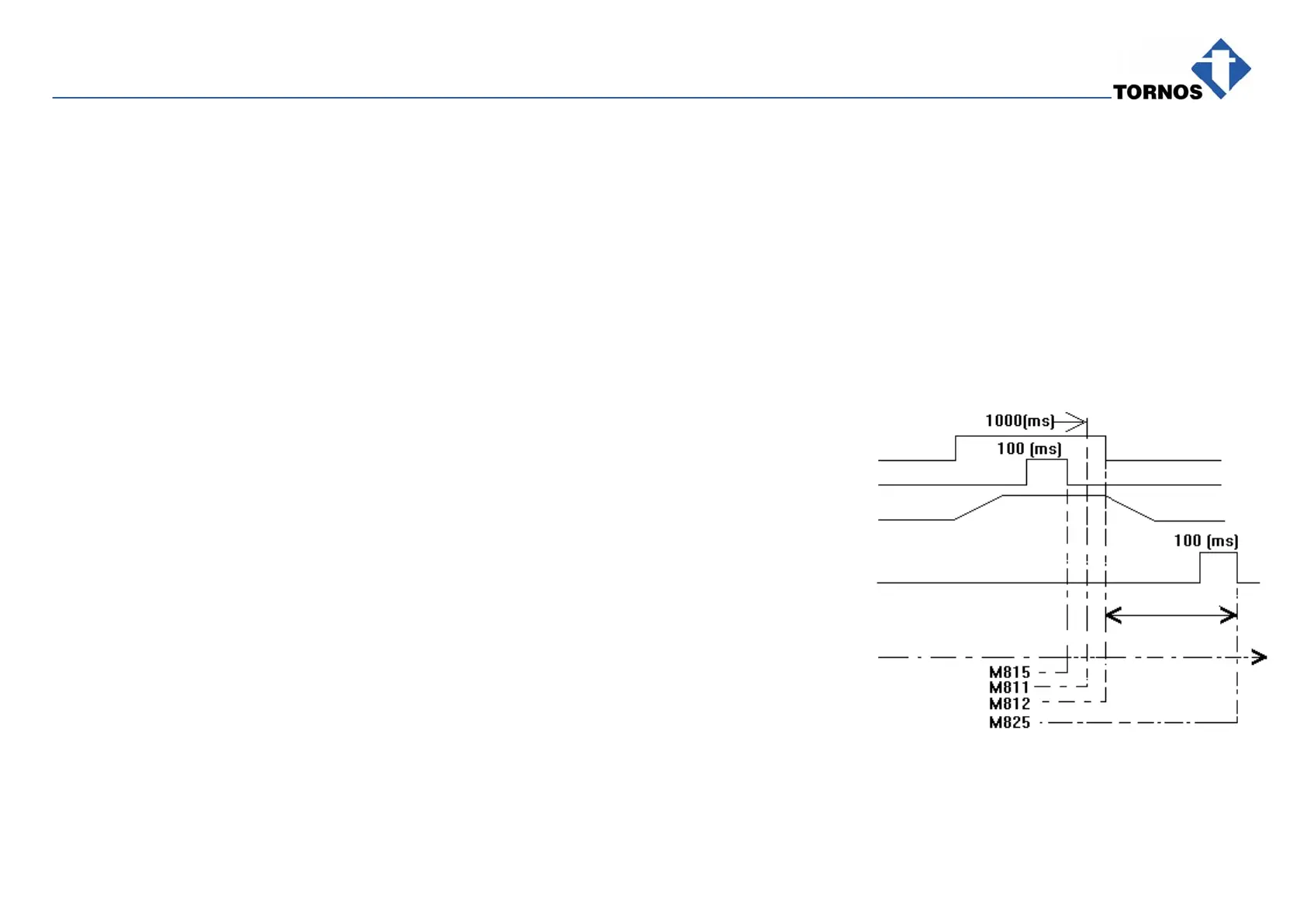

10.8.4Piston Check Timing Diagram
Piston advance control
Piston-forward check
Piston motion
Piston-backward check
Time [ITP]
