tornos DECO 7/10 - Piston Check Timing Diagram

OPTIONS & ALLIED TOOLING − DECO 7/10 − DECO 7a/10a − DECO 7e/10e
300236 en − 02/07 Chap. 10.9.4 /15
10.9.4Piston Check Timing Diagram
2 s
2 s

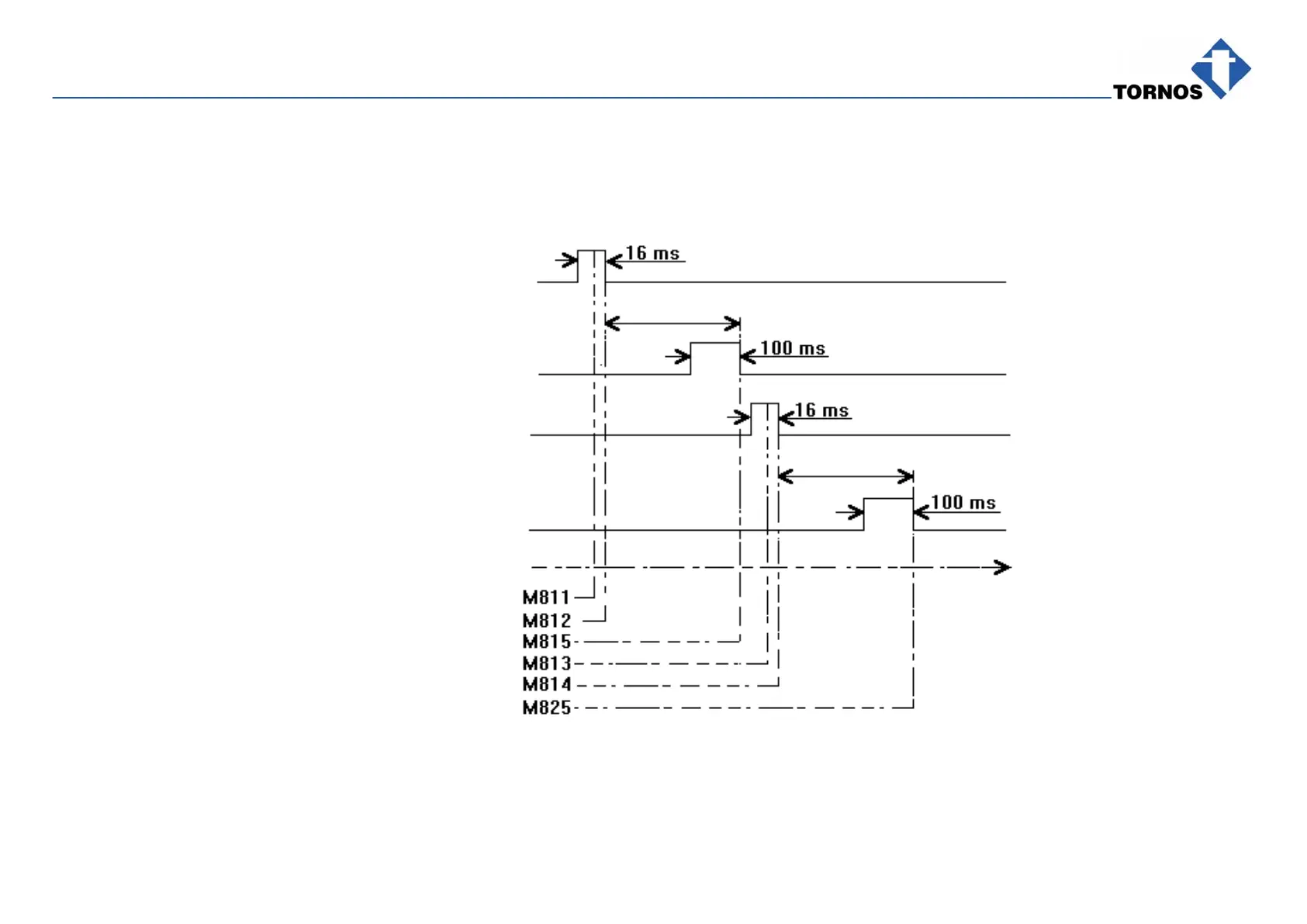

Piston advance control
Piston-forward check
Piston-backward check
Time [ITP]
Piston return control
